In industrial on-site maintenance, automotive diagnostics, and laboratory auxiliary detection, imaging system selection often faces a practical dilemma: operators need quick deployment and intuitive observation, but are unwilling to spend time installing drivers, debugging software, or configuring complex digital interfaces. When the inspection task demands moderate image accuracy but prioritizes response speed and ease of use, a VGA endoscope module featuring 4.0mm diameter, CVBS analog output, and 30–80mm macro focus becomes a practical solution worth evaluating. This article provides a clear selection framework from four dimensions—physical size, signal interface, optical performance, and typical applications—while incorporating key terms such as Endoscope camera modules, camera usb module, cmos module camera, USB2.0 camera module, and VGA CMOS Sensor to help you precisely match on-site inspection needs.
First step: Confirm the minimum inner diameter of the target channel and the on-site operating environment.
The probe diameter of this module is precisely controlled at 4.0mm, allowing easy access to ultra-thin pipes, narrow gaps, and small cavities with an inner diameter ≥4.5mm. Compared to traditional endoscopes with diameters above 8mm, the 4.0mm design significantly improves on-site accessibility—areas previously difficult to reach, such as engine block gaps, air conditioning ducts, and wiring harness channels inside precision equipment, become inspectable.
Note: 4.0mm refers to the maximum outer diameter of the probe. If the target channel has 90-degree bends or continuous curves, evaluate the rigid section length (typically 10–20mm, though not specified in the datasheet) and the flexible cable’s bending radius. The module uses a standard 4PIN PAD interface (GND, VOUT, LED+, VCC), and cable length can be customized to suit on-site routing needs.
Second step: Evaluate the display device type and the technical skill level of on-site personnel.
This module outputs CVBS (AV/TV) composite analog video, which can be directly connected to any monitor, display, or car screen with an AV input—no driver installation or software debugging required. This contrasts sharply with typical camera usb module or USB2.0 camera module solutions, which require a computer, drivers, and specific applications to function—often becoming an efficiency bottleneck during rapid on-site troubleshooting.
The core advantages of CVBS analog output are:
Plug-and-play: Power on and immediately see real-time images on a monitor, no system boot or driver loading.
Strong noise immunity: Analog signals are highly stable over short distances, ideal for electromagnetically noisy environments like engine bays or control cabinets.
Low cost: No need for high-performance host processors or decoding chips, significantly reducing the hardware cost of the entire inspection system.
As a mature form of cmos module camera, VGA-resolution analog modules remain irreplaceable in industrial field settings. For maintenance scenarios demanding “power on, see, and decide,” they outperform any digital alternative in efficiency.
Third step: Determine working distance, distortion tolerance, and lighting requirements.

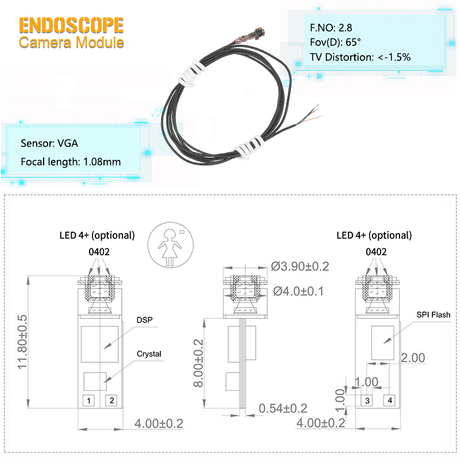

The module incorporates a VGA CMOS Sensor (640×480 effective pixels) with an optical system optimized for 30–80mm close-range inspection. Key parameters include:
Focal length 1.08mm, aperture F2.8, field of view 65°
TV distortion controlled within -1.5%, ensuring geometrically accurate images
Optional 4×0402 white LEDs for complete darkness
Unlike high-resolution Endoscope camera modules, this module follows an “adequate and reliable” design philosophy. The 30–80mm focus range precisely covers typical working distances from local detail observation to overall status assessment, eliminating frequent refocusing. Distortion below -1.5% ensures no barrel distortion at the edges, crucial for judging pipe wall corrosion morphology or weld quality.
When selecting, verify: If the target is within 30mm (e.g., PCB surface-mount components), confirm the minimum focusing distance is sufficient; if working in complete darkness, the optional LED illumination (4×0402 white LEDs) is mandatory, and ensure the LED+ power pin can supply 3–5V drive voltage.
Application Scenario | Selection Rationale | Precautions |
|---|---|---|
On-site thin-wall pipe inspection | 4.0mm probe enters small-diameter pipes; CVBS direct to portable monitor | Adjust LED brightness if pipe walls are highly reflective |
Automotive engine gap diagnosis | No disassembly; probe reaches through spark plug or sensor holes | Mind probe heat tolerance (cool down hot engines before use) |
Electronic equipment internal inspection | 30–80mm macro clearly shows solder joints and connector status | Optional magnetic probe holder for hands-free operation |
Laboratory small animal observation | Analog output connects directly to teaching display systems | External cold light or LED fill light needed |
HVAC duct foreign body check | Slim probe enters through access ports; CVBS signal supports long cable runs | Custom cable length (up to 5 meters) |
The core value of the 4.0mm VGA analog output endoscope module lies in trading digital interface convenience for extreme simplicity in on-site deployment. For applications needing USB2.0 camera module or camera usb module features—high resolution, storage, remote sharing—this is not the best choice. But for real-time diagnostic tasks where “just a quick look tells you where the problem is,” it offers the lowest-cost, most reliable solution.
When selecting, prioritize three questions:
Is a computer available on-site? If not, CVBS analog output directly connects to a monitor—no host needed.
Do you need to save images? If no archiving is required, analog modules allow immediate judgment; if recording is needed, add an external video capture card or DVR.
How dark is the environment? Complete darkness mandates optional LEDs; in low-light conditions, test the F2.8 aperture’s light sensitivity first.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard analog modules based on VGA CMOS Sensor, but also customizes cable length, LED color temperature, and probe protection levels according to your on-site requirements. We recommend obtaining engineering samples before mass production and conducting thorough pass-through, image clarity, and noise immunity tests in real working conditions to ensure your selection is both scientifically sound and practically effective.
