SF-C2016USB-1080P60-D6.0-L2000
SINCEREFIRST
This is an all-glass camera module with the OV2740 sensor, which is designed for medical, dental and industrial applications as a 2 megapixel camera module. It also provides high quality images at 1920 x 1080 resolution. In addition, this mini pinhole endoscopic camera module features a wide Angle lens of 140° and a form factor of only 6.0 x 6.0 mm. This mini camera module supports multiple output formats and programmable controls, ensuring seamless integration into a wide range of devices, including micro-USB connectivity with the camera module. It also has IP67 rating, water and oil resistant, dust resistant functions. Disinfection is quick and easy, and this module also features enhanced imaging, interlaced HDR raw data output and automatic gain control, among others. |  |
Product Advantage ◢
OV2740, 2MP resolution.
All Glass Camera Module, compact 6.0 x 6.0 mm.
Wide lens angle of 140°, supports multiple output formats.
Waterproof/IP67, advanced features like HDR and automatic gain control.

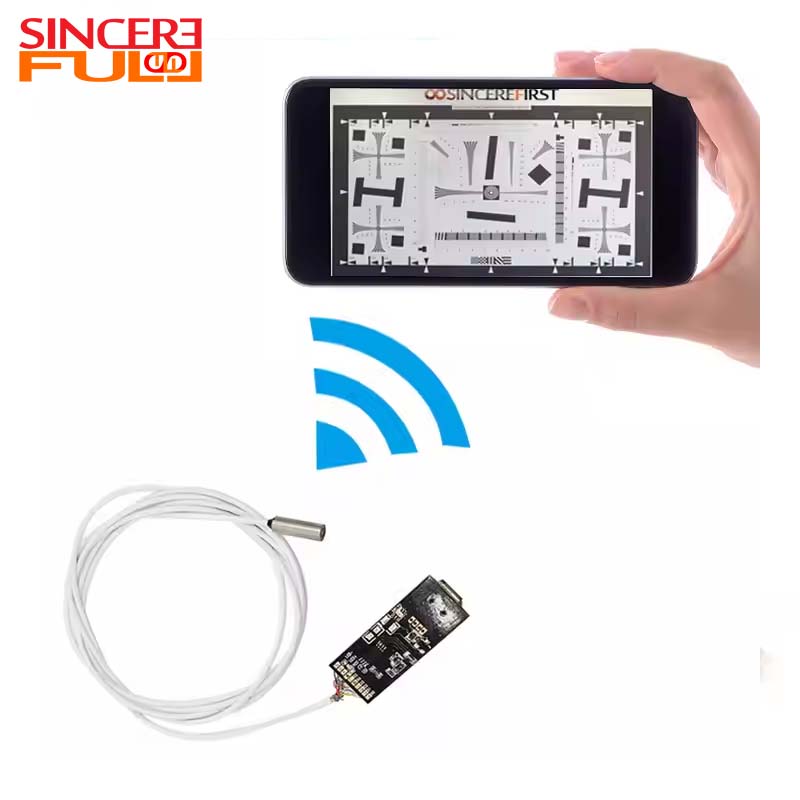

Micro USB connectivity.
1. Oil pipeline: the all-glass structure can withstand high pressure washing, the 140° field of view covers the sudden change area of the pipe diameter, and the HDR mode penetrates the oil scale deposition, supporting the three-dimensional modeling of the corrosion pit and the remaining life assessment.
2. Nuclear power plant cooling circuit: anti-radiation glass formula, micro-USB output adaptive robot controller, IP67 protection against high temperature steam, support real-time verification of underwater welding quality.
3. Debris life detection: micro-USB power supply adaptates portable power supply, 140° field of view penetrates building gaps, IP67 protects against mud erosion, and supports spatial registration of thermal imaging data.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Image Sensor | OV2740 |
Diameter | 6mm |
Pixel | 2MP |
FOV(D*H*V) | 140° |
TV Distortion | ＜-58% |
Connector | Micro USB |
LED | 6pcs 0402 |
Resolution | 1080P Max 60fps |
Focusing Range | 5~100mm |
Product Uses ◢
Laparoscopy
Bronchoscopy
FAQ ◢
1. What are the common specifications of the resolution of the endoscope camera module?
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules (such as 4K) are mostly used in precision surgery or scientific research.
2. How does the Field of view (FOV) of the module affect the use effect?
The field of view Angle determines the imaging range. The wide Angle is suitable for observing a large area, but the edge may be distorted. Narrow angles provide a more focused picture. The selection should be based on the application scenario, such as laparoscopic surgery commonly used 70°-90° balanced field of view and detail.
3. Are you a factory or a trading company?
A2: We are the source manufacturer of smart camera modules with our own production line and clean workshop. Each employee follows standardized production processes to ensure consistency and reliability of output. The team is professionally trained to wear dust-free clothing to maintain a dust-free environment and rigorously tests each product at multiple inspection points to ensure quality.
