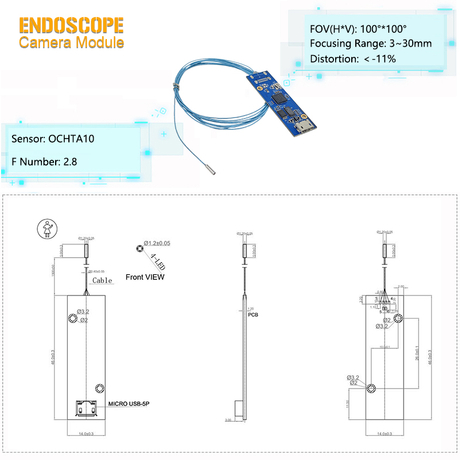

A Technical Analysis of Resolution and Frame Rate Configurability in Endoscopic Imaging ModulesIn industrial inspection and medical endoscopy applications, customers often have specific requirements f

In industrial inspection and medical endoscopy applications, customers often have explicit requirements for flexible control over image capture parameters. A frequently asked technical question recently concerns whether modules can be configured to lower resolutions or frame rates when the catalog specifies a maximum of 1936×1080@60fps, and whether customers can adjust capture speeds via software. This inquiry essentially addresses the module's performance boundaries beyond standard specifications and user configurability permissions. The following provides a systematic explanation of this issue from three dimensions: sensor characteristics, driver support, and software control. From the fundamental characteristics of image sensors, most CMOS sensor chips are designed with the capability to output multiple resolutions and frame rates. This flexibility is achieved internally through different pixel readout modes—such as reducing resolution via skipping rows during sampling, or adjusting frame rate by modifying line frequency or frame period. Sensor manufacturers typically provide a set of validated recommended parameter combinations covering multiple operating points, ranging from maximum performance to low-power modes. This means the sensor itself possesses the hardware foundation to switch between different resolutions and frame rates, rather than being limited to a single mode. Relatedly, during module integration, the firmware program usually maps the sensor's multiple output modes to standard UVC (USB Video Class) or protocol-compatible format descriptors. When the module connects to a host via USB, these descriptors are reported to the operating system for upper-layer applications to recognize and invoke. Therefore, whether a module supports reduced resolution or frame rate depends on whether its firmware includes configuration information for these modes and whether the sensor can maintain stable image quality and frame synchronization in these modes. From a practical application perspective, the process where customers adjust capture parameters via AMCap, PotPlayer, or specialized software developed based on DirectShow essentially involves the host application initiating format negotiation requests to the module. The module firmware responds based on its supported format list. If the module firmware already includes configurations for lower resolutions or frame rates, customers can directly select and activate them within the software interface. If the firmware lacks the corresponding mode, these options will not appear in the software dropdown menu. This mechanism implies that the maximum parameters listed in the module specification represent its performance under optimal conditions, not a comprehensive description of its capability limits. In the company's product design and testing process, firmware development for endoscope modules typically incorporates a set of commonly used resolution and frame rate combinations to cover customer needs across different application scenarios. For example, a module rated at 1936×1080@60fps may also include downgraded modes like 1280×720@60fps or 640×480@120fps in its firmware. This allows customers to select lower-resolution options when needing to reduce data bandwidth, extend transmission distance, or lessen the processing load on the host device. This design philosophy aims to enhance product adaptability through firmware configuration without increasing hardware costs. From a system integration perspective, customer requirements for adjusting capture speed are often tied to specific application constraints. In high-frame-rate motion analysis scenarios, customers may need to reduce resolution to achieve higher frame rates. In bandwidth-constrained transmission links, customers may need to simultaneously reduce both resolution and frame rate to ensure image stability. In low-illumination environments, lowering the frame rate extends single-frame exposure time to enhance image brightness. The module's multi-mode support enables customers to address these diverse operational demands on the same hardware platform without switching between different product specifications. In summary, endoscope modules labeled with maximum resolution and frame rate specifications typically retain the capability to operate at lower resolutions and frame rates. Customers can adjust capture parameters independently using universal software like AMCap. This flexibility stems from the sensor chip's multi-mode design, firmware mode configuration, and the standard negotiation mechanism of the UVC protocol. During actual use, customers can select from multiple parameter sets supported by the module based on specific requirements for image size, capture speed, and bandwidth usage in their application scenarios, achieving optimal system performance matching.
