SF-C1019USB-D6.0-SV-L200-95D V1.0
SINCEREFIRST

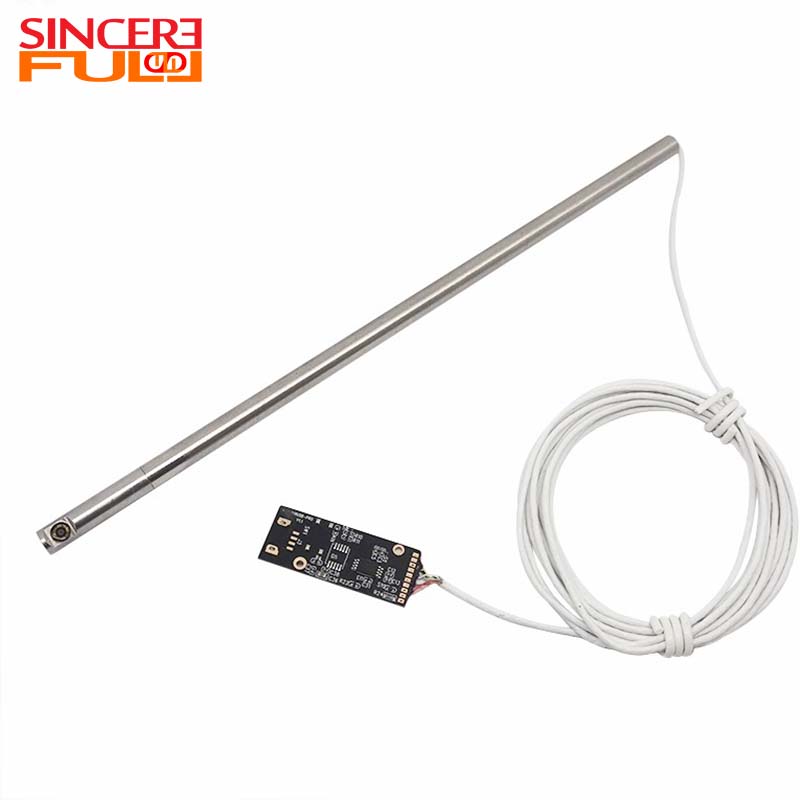

This 1MP Camera Module, equipped with the high-performance sensor OV9734 , is specifically designed for precision in a wide range of inspection applications. This compact 6mm Endoscope Camera Module offers an impressive 95° field of view and a focus range extending from 10mm to 100mm, enabling detailed observations in confined spaces. Operating at 30fps with a maximum resolution of 720P, this Side-View Endoscope Camera Module ensures crystal-clear images suitable for both medical and industrial applications. The robust design features four adjustable LED lights, providing optimal illumination for enhanced visibility. With an IP67 waterproof rating, it is well-suited for challenging environments such as dental examinations, automotive inspections, and tube boring tasks. Compatible with various USB interfaces, this module can be easily integrated into existing systems. Enhance your inspection capabilities with our efficient and reliable endoscope camera module, which offers a unique side-viewing angle for optimized viewing experiences. Ideal for professionals seeking high-quality and precise imaging solutions. |  |
HD Camera Module with Sensor OV9734 delivers clear images at 720P.

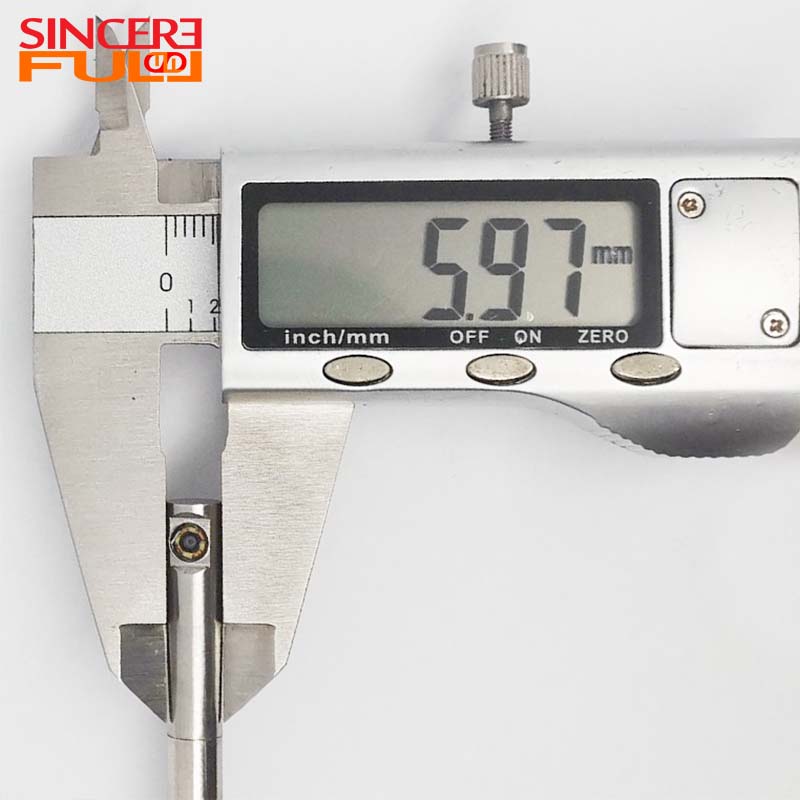

6mm Endoscope Camera Module allows for easy access in tight spaces.
95° FOV with a focus range of 10mm to 100mm for versatile inspections.

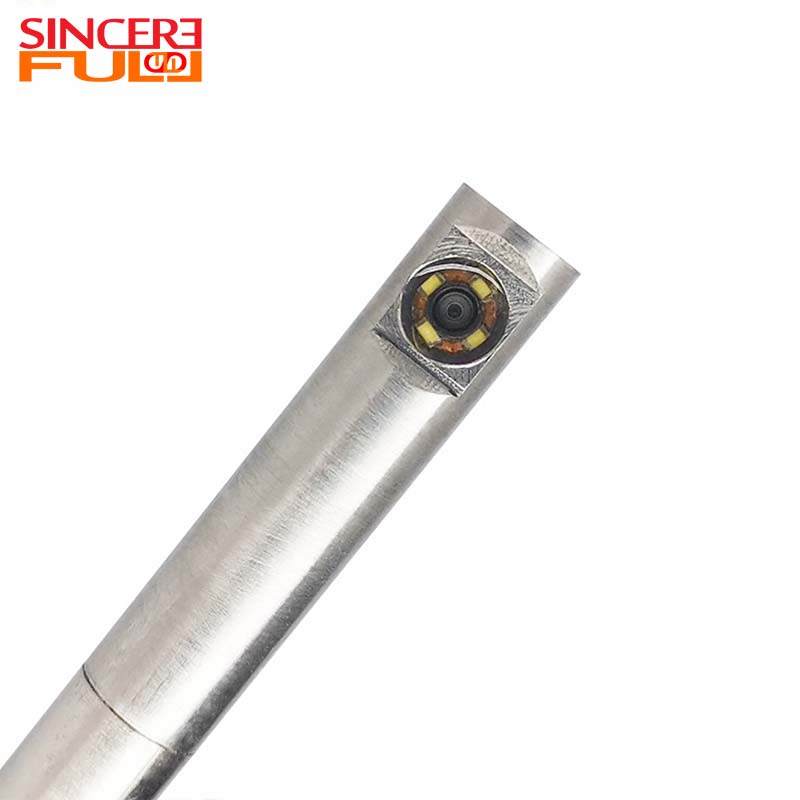

Features 4 adjustable LEDs for enhanced visibility.
IP67 waterproof rating ensures reliability in challenging environments.

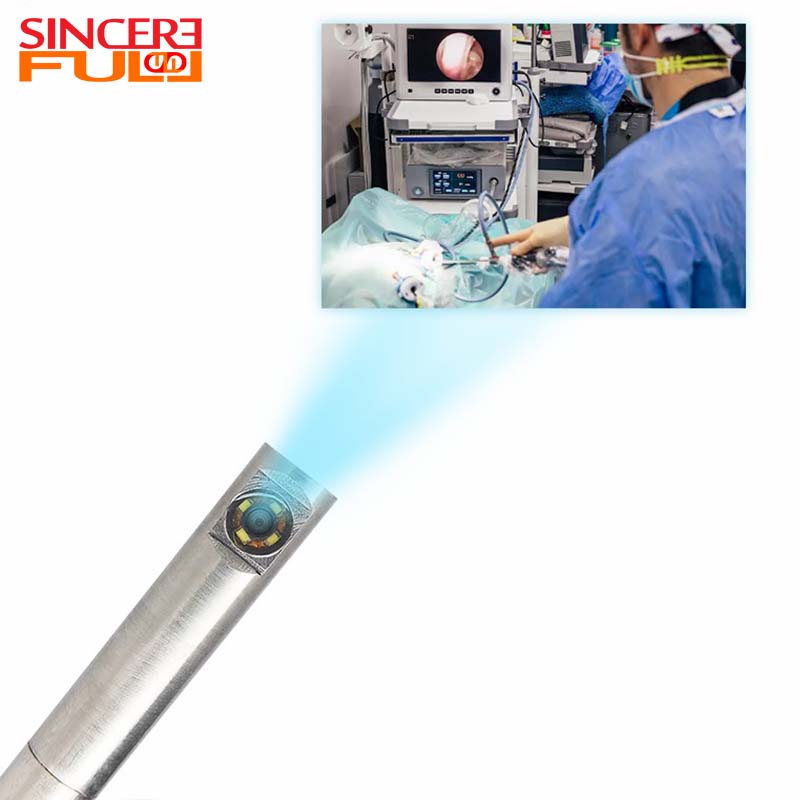

1. Minimally invasive surgery: Side view Angle assisted arthroscopic surgery to observe the side contact surface between instruments and tissues to improve operation safety.

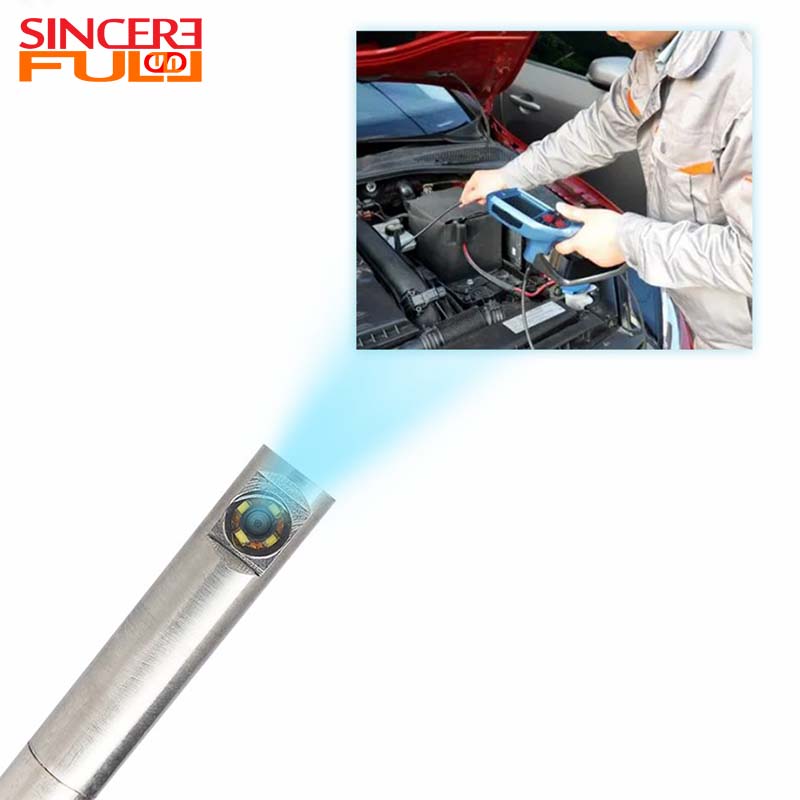

2. Engine maintenance: check cylinder inner wall strain, piston ring groove wear and other side vision blind areas, optimize the maintenance plan.
3. Pipeline flaw detection: Side-view lens can scan the weld fusion line and corrosion pit distribution of the pipeline, replacing the traditional X-ray detection.
Product Name | ENDOSCOPE Camera Module |
Image Sensor | OV9734 |
Pixel | 1MP |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F NO | 5.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
FAQ
1. Possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
2. Why does the image appear color bias?
The filter may need to be corrected or replaced by software due to uncalibrated white balance, mismatch of light source color temperature (such as LED mixed with daylight), or aging of the sensor.
3. What should I do if the module fails after high temperature sterilization?
Check whether the tolerance temperature is exceeded (for example, some are only 120°C), turn off the power and remove the battery before sterilization, damage may involve sealant failure or circuit board deformation.
