What is the difference between HD and Full HD endoscope cameras?

Introduction
When shopping for an endoscope camera—for medical diagnostics, industrial inspection, or DIY projects—you’ll see two terms: HD and Full HD. But what’s the actual difference? Is Full HD always better? The answer depends on your application, lighting, and budget. At Sincere, we’ve been manufacturing camera modules for over 30 years, including endoscope cameras for medical, industrial, and consumer use. This article explains the differences to help you choose.

What Do HD and Full HD Mean?
HD (High Definition) means 720p. A camera hd module captures video at 1280 × 720 pixels (about 0.9 megapixels). Full HD (1080p) captures video at 1920 × 1080 pixels (about 2.1 megapixels). Full HD has more than twice the pixel count of HD.

Key Differences

1. Image Detail
Full HD provides significantly more detail. With over twice the pixels, a Full HD endoscope camera module shows finer structures, smaller defects, and subtle texture variations. For medical use, this means seeing tiny blood vessels or early tissue abnormalities. For industrial inspection, it means spotting hairline cracks that HD might miss.

But detail is only valuable if you need it. For basic tasks like checking pipe blockages or part presence, HD is often sufficient.

2. Low-Light Performance
Here, HD often has an advantage. For a given sensor size, fewer pixels mean larger individual pixels. Larger pixels collect more light, improving low-light sensitivity and reducing noise. A cmos module camera with HD on a small sensor may outperform a Full HD version of the same sensor in dim conditions.

For endoscopy—where illumination is limited—this trade-off matters. A best camera module for dark cavities might be HD with larger pixels, not Full HD.

3. Frame Rate
Full HD requires more data bandwidth, which can limit frame rates. HD might run at 60fps while Full HD is limited to 30fps. For fast-moving objects or smooth video of moving tissue, HD’s higher frame rate is beneficial.

4. Storage and Bandwidth
Full HD video consumes about twice the storage and bandwidth of HD. For systems that record long procedures or stream over limited networks, HD is more practical.

5. Display Compatibility
Most modern monitors are Full HD (1080p) or higher. HD displayed on a Full HD screen is upscaled, which can cause slight softness. Full HD displayed natively appears sharper.

Practical Differences by Application

Medical Endoscopy
For diagnostic endoscopy, Full HD is becoming standard because it provides the detail needed to identify subtle pathologies. A camera mini usb endoscope module with Full HD can connect to a laptop or monitor for clear visualization. However, for very narrow scopes (under 3mm), sensor size constraints may make HD the only option.

Industrial Inspection
For inspecting engines, turbines, or pipes: detecting large blockages? HD is fine. Detecting fine cracks or pitting? Full HD is better. A usb endoscope camera module with Full HD provides excellent detail for professional inspection.

Consumer and DIY
For home use—checking drains, walls, automotive DIY—HD is often adequate. Many affordable camera mini usb endoscope module products offer HD at a lower price.

Comparison Table

Which Is Right for You?

Choose HD if:

• Lighting is limited (dark pipes, body cavities)

• You need high frame rates for moving subjects

• Storage or bandwidth is constrained

• Budget is tight

• The task is basic (blockages, presence/absence)

Choose Full HD if:

• You need to see fine details (cracks, tissue abnormalities)

• You have adequate illumination

• You’re documenting for quality records or legal evidence

• You’re displaying on Full HD monitors

• You want the professional standard

The Sensor Size Factor
The difference is not just about pixels—it’s about pixel size. A cmos module camera with a 1/4” sensor can achieve HD with pixels around 2.2µm. The same sensor size with Full HD would have pixels around 1.4µm—significantly less light-gathering area. If low-light performance is critical, an HD module with a larger sensor may outperform a Full HD module with a tiny sensor.

Sincere’s Endoscope Modules

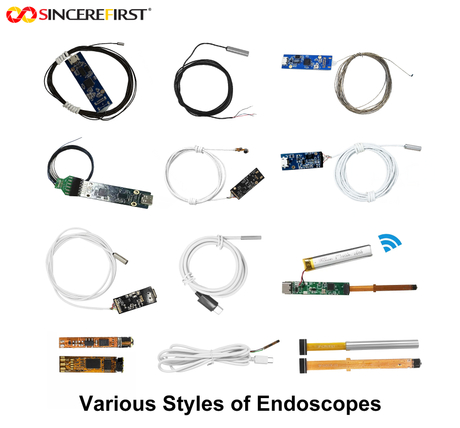

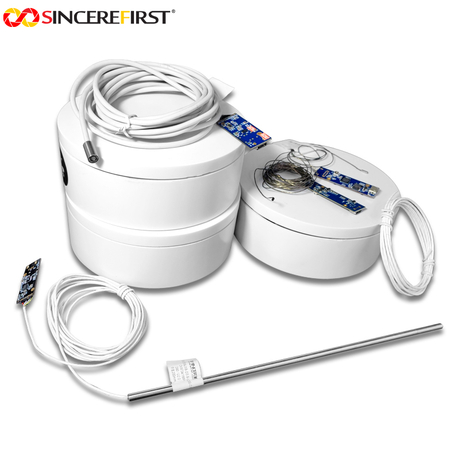

At Sincere, we manufacture both HD and Full HD endoscope camera modules:

• Endoscope camera module: HD and Full HD for medical and industrial

• Usb endoscope camera module: Plug-and-play with USB 2.0/3.0

• Camera hd module: 720p optimized for low-light and high speed

• Cmos module camera: Both resolutions with BSI technology

• Best camera module: Custom resolution selection

• Camera mini usb endoscope module: Ultra-compact for tight spaces

Our manufacturing includes Class 10/100 dust-free facilities and Active Alignment (AA) for perfect focus.

How to Choose

1. Detail needed: Very small features? Full HD.

2. Lighting: Poor lighting favors HD with larger pixels.

3. Frame rate: Fast motion favors HD.

4. Storage/bandwidth: Full HD requires more.

5. Budget: HD is less expensive.

The Future
As cmos module camera technology improves, the low-light gap between HD and Full HD is narrowing. BSI and stacked CMOS allow Full HD to perform well in dim conditions. For most professional applications today, Full HD is recommended unless size or lighting forces HD.

Summary
The difference between HD and Full HD comes down to resolution, detail, low-light performance, frame rate, and cost.

For most professional medical and industrial applications, Full HD is the standard. For basic inspection, low-light conditions, or budget-sensitive projects, HD remains a solid choice.

At Sincere, we help clients select the optimal resolution for their endoscope camera module needs. Whether you need a usb endoscope camera module with Full HD for detailed inspection or a camera mini usb endoscope module with HD for tight spaces, contact us to discuss your requirements.
