What is a CMOS endoscope camera module?

Introduction
An endoscope camera module is the tiny camera that lets doctors see inside your body or inspectors look inside machinery. At the core of most modern endoscopes is a CMOS image sensor. CMOS technology has made these cameras smaller, cheaper, and more efficient. This article explains what a CMOS endoscope camera module is, how it works, and where you'll find it.

What Is CMOS?
CMOS stands for Complementary Metal-Oxide-Semiconductor. It's a type of image sensor that converts light into electrical signals. Unlike older CCD sensors, CMOS sensors include amplifiers and processing circuits right on the chip. That means they use less power, cost less to make, and can be very small. For endoscopes, these features matter a lot.

What Makes Up a CMOS Endoscope Camera Module?

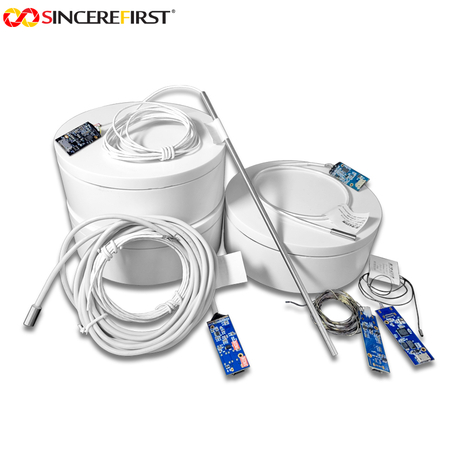

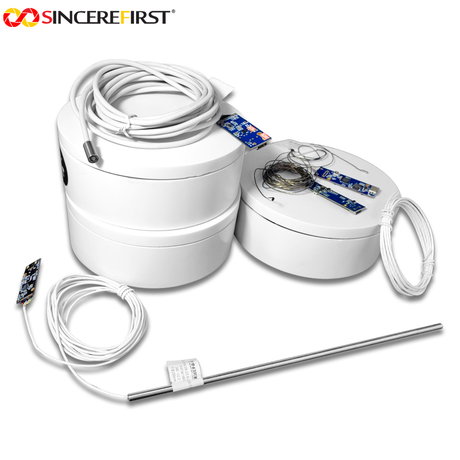

A CMOS endoscope camera module is a complete camera package designed to fit in tight spaces. It contains:

• A CMOS image sensor

• A tiny lens

• A small circuit board

• Usually, built-in LED lights

• A cable or connector to send out the image

The whole thing is often just a few millimeters wide—small enough to go through a narrow opening.

The Parts Explained

1. CMOS Sensor
This is the chip that captures the image. It has millions of light-sensitive pixels. When light hits them, they create an electrical signal. CMOS sensors are great for endoscopes because they:

• Produce little heat, so they're safe inside the body.

• Can be made extremely small.

• Work well in low light—important inside dark places.

2. Lens
The lens focuses light onto the sensor. In endoscopes, the lens is tiny—sometimes under 2mm across—but precisely made. It determines how wide an area you see and how much stays in focus.

3. Lights
Since endoscopes go into dark spaces, they need illumination. Most modules have tiny LEDs around the lens to light up the area.

4. Circuit Board and Cable
The board holds the sensor and electronics. It processes the image and sends it through a cable to a screen. In an endoscope usb camera, the cable ends in a USB plug for easy connection.

How It Works
You turn on the endoscope. The LEDs light up. Light bounces off the object, enters the lens, and hits the CMOS sensor. The sensor converts light into electrical signals. Electronics process these signals and send them through the cable to a display. You see the image in real time.

Common Types

Medical Endoscope Modules
Used in procedures like colonoscopy and laparoscopy. They must be sterilizable and produce accurate colors. A mini endoscope camera for medical use can be just 2-3mm wide.

Industrial Inspection Modules
Industry uses these to inspect engines, pipes, and turbines. An endoscope inspection camera with a CMOS sensor is often built into industrial inspection cameras that are rugged and waterproof.

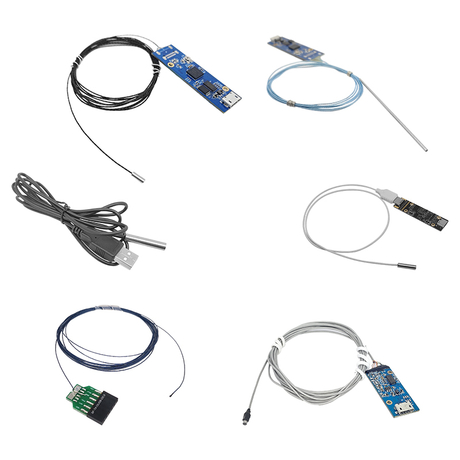

USB Endoscope Modules
These connect directly to computers or smartphones. A usb endoscope camera android plugs into an Android device, turning it into a portable inspector. They're plug and play endoscope camera devices—no drivers needed.

Where They're Used

Medicine
CMOS endoscopes let doctors perform minimally invasive surgery. Patients recover faster. The low heat of CMOS makes them safe for internal use.

Industry
Industrial inspection cameras help maintain power plants, aircraft, and refineries. Inspectors find cracks and corrosion before they cause failures.

Automotive
Mechanics use endoscope inspection camera tools to look inside engines. A usb endoscope camera android connected to a phone helps diagnose problems fast.

Home and Building
Plumbers and contractors use mini endoscope camera tools to check behind walls, inside drains, and in crawl spaces.

Why CMOS Is the Standard

• Low power: Less heat, longer battery life.

• Small size: Enables tiny camera heads.

• Affordable: Makes endoscopes accessible.

• Good image quality: Modern CMOS rivals older CCDs.

Choosing a Module
When picking a CMOS endoscope module, think about:

• Resolution: More pixels for more detail.

• Size: Must fit your opening.

• Field of view: Wide-angle vs. narrow.

• Interface: USB is easy; others may be needed.

• Environment: Waterproof? Dustproof?

• Lighting: Built-in LEDs or external?

What's Next
CMOS endoscopes keep improving. Higher resolutions like 4K are coming to tiny modules. Some now have AI chips for real-time analysis. Wireless versions exist, but USB remains reliable.

Summary
A CMOS endoscope camera module packs a sensor, lens, lights, and electronics into a tiny package. It's used in medicine, industry, automotive, and homes to see the unseen. Whether it's an endoscope usb camera, an endoscope inspection camera, a usb endoscope camera android device, a plug and play endoscope camera, an industrial inspection cameras module, or a mini endoscope camera, CMOS technology makes it possible.

At Sincere, we've made camera modules for over 30 years. If you need a CMOS endoscope module for your project, contact us. We're here to help.
