Introduction
An endoscope camera module is the small imaging system inside every borescope or medical scope. It lets you see into tight spaces—inside engines, behind walls, or inside the human body. Despite its tiny size, this module contains several precision parts that work together to capture and transmit images. This article explains the main components and what each one does.

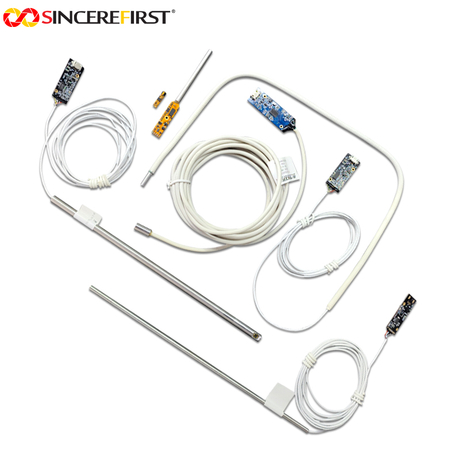

What Is an Endoscope Camera Module?
An endoscope camera module is a miniaturized camera designed to fit into confined spaces. It's the core of any endoscopic device. The module captures video from hard-to-reach areas and sends it to a screen for real-time viewing. A typical usb endoscope camera contains all the essential imaging components packed into a package small enough to pass through narrow openings.
In industrial settings, these modules are used in industrial borescopes to inspect machinery, turbines, and pipelines without taking things apart.
The Main Components
1. The Lens
The lens is the first part light hits. It collects and focuses light onto the image sensor. In an endoscope module, the lens must be extremely small—often just 1-2 millimeters in diameter—while still providing a clear, wide view.
Endoscope lenses are made from glass or high-quality plastic. Some use multiple lens elements stacked together to improve image quality. A medical endoscope might need a lens with a wide field of view (like 120° or more) to see as much area as possible .
The lens also determines depth of field—how much of the image stays in focus at different distances. An endoscope inspection camera needs good depth of field so objects at different distances remain sharp without constant adjustment.
2. The Image Sensor
Behind the lens sits the image sensor. This chip is the heart of the camera module. It's covered with millions of light-sensitive pixels that convert light into electrical signals. Most endoscope modules today use CMOS sensors because they consume less power, generate less heat, and can be made smaller .
A typical camera module sensor in an endoscope might measure just a few millimeters across but contain 1 to 5 megapixels. Higher resolution lets inspectors see finer details, like hairline cracks in metal or subtle tissue color changes.
The sensor's sensitivity to light—determined by pixel size—affects how well the camera performs in dark conditions. Since endoscopes often work in dark spaces, this matters .
3. The Illumination System
You can't capture an image without light, and the spaces endoscopes explore are usually dark. That's why every endoscope module includes lights.
Most modern modules use tiny LEDs mounted around the camera lens. These provide bright, white light to illuminate the area. In some designs, light comes through fiber optic cables from a remote source, keeping the camera head even smaller .
The number and brightness of LEDs affect image quality. A good endoscope inspection camera has adjustable illumination for different conditions—from close-up inspection to larger cavities.
4. The Circuit Board
All electronic components need to be connected, and that's the job of the printed circuit board (PCB). In an endoscope module, the PCB is often tiny and may be flexible to fit into tight spaces.
The PCB carries the image sensor and other components. It also handles video signal transmission and power delivery. In a usb endoscope camera module, the PCB connects to the USB interface, managing both data and power .
Some modules include an image signal processor (ISP) on the same board. The ISP handles color correction, noise reduction, and image sharpening before the video leaves the module.
5. The Cable and Connector
Once the sensor captures an image, that data needs to travel to a display. That's what the cable does.
In a usb endoscope camera, the cable carries video from the camera head to the USB plug. It also delivers power to run the camera and LEDs. The cable must be durable enough to withstand bending, especially in industrial borescopes that get maneuvered around obstacles .
USB is a popular interface because it's universal and simple. A plug and play endoscope camera that connects via USB needs no special software—just plug it in, and it works as a standard camera on your computer .
6. The Housing
All these delicate parts need protection. The housing holds everything together and maintains precise alignment between the lens and sensor—critical for keeping the image in focus.
In medical endoscopes, the housing must be sterilizable. In industrial models, it needs to be waterproof, dustproof, and chemical-resistant. Many inspection scopes have an IP rating (like IP67) for wet environments .
The housing also determines the camera head diameter. Smaller is better, as it fits through tighter openings. Some endoscope borescope camera heads are just 2-4 millimeters wide.
How They Work Together
When you use a plug and play endoscope camera:
Light enters through the lens and focuses on the sensor
The sensor converts light to electrical signals
LEDs illuminate the scene
The circuit board processes the data
The cable carries video to your USB port
Your screen displays the live image
All this happens in real time with minimal delay—critical for guiding a scope through tight spaces.
Different Types for Different Uses
Medical Endoscope Modules
Medical modules must meet strict requirements for sterilization and image quality. They're used in colonoscopy, gastroscopy, and laparoscopy. A medical endoscope inspection camera needs accurate color so doctors can identify tissue conditions correctly .
Industrial Borescope Modules
Industrial modules are built tougher. They inspect:
Jet engine turbines for cracks
Pipeline interiors for corrosion
Automotive engines for carbon buildup
Building structures for hidden damage
These industrial borescopes often have interchangeable tips and articulating heads that bend.
USB Endoscope Modules
Consumer and professional USB endoscopes are affordable and easy to use. A usb endoscope camera module connects directly to a laptop or smartphone, turning it into an inspection tool. The best ones are plug and play endoscope camera designs that work without installing drivers .
Summary
An endoscope camera module packs a lot into a small space: lens, sensor, LEDs, circuit board, cable, and housing. Each part has a specific job:
Lens: Focuses light
Sensor: Converts light to data
LEDs: Light up dark spaces
Circuit board: Processes and transmits signals
Cable: Delivers power and video
Housing: Protects and aligns everything
Whether you need a medical endoscope borescope camera, rugged industrial borescopes, or a simple plug and play endoscope camera, understanding these components helps you choose the right tool.
At Sincere, we manufacture camera modules for many applications, including the compact sensors used in inspection equipment. If you're developing a product that needs a usb endoscope camera module or have questions about which camera module sensor fits your project, contact us. We're here to help.
