In the field of minimally invasive surgery, the "eye" of the instrument—the endoscope camera—is perhaps the most critical component. It must be small enough to navigate the human body's delicate pathways, yet powerful enough to provide surgeons with crystal-clear, lag-free imagery.
At the heart of this technology lies the image sensor. For any endoscope camera module manufacturer, selecting the right sensor is a high-stakes balance between physical dimensions, thermal management, and resolution.
This article explores the specific sensors driving modern medical imaging, from standard diagnostic tools to high-precision 4k endoscope camera systems.
Historically, Charge-Coupled Device (CCD) sensors were the gold standard for medical imaging due to their superior light sensitivity. However, the industry has almost entirely transitioned to the cmos endoscope camera module.
Integration: CMOS sensors allow for "System-on-Chip" (SoC) designs, where image processing circuitry is integrated directly onto the sensor chip. This is vital for miniaturization.
Power Consumption: CMOS sensors consume significantly less power than CCDs. In endoscopy, high power consumption equals heat—and excessive heat can damage sensitive human tissue.
High Frame Rates: Modern CMOS technology supports the high speeds required for real-time surgical feedback without motion blur.
In the medical Tier-1 supply chain, a few specific sensor architectures dominate. As an experienced endoscope camera module manufacturer, we typically categorize these based on the procedure type:
For disposable endoscopes or ultra-thin bronchoscopes, sensors like the OmniVision OVM6946 or OCHFA10 are common. These are incredibly small (often less than 1mm x 1mm), allowing the sensor to sit at the very distal tip of the scope.
For laparoscopy and GI (Gastrointestinal) endoscopy, where image clarity is more important than extreme miniaturization, larger sensors from Sony (Exmor R series) or OmniVision are preferred. These sensors power the hd endoscope camera module, providing the dynamic range needed to distinguish between different types of biological tissue.
The demand for higher resolution in the operating room is growing. Surgeons no longer just want to see; they want to see "texture."
The hd endoscope camera module (typically 1080p) remains the workhorse of the industry. It provides a reliable, clear image that is sufficient for the majority of diagnostic procedures. It strikes an ideal balance between data bandwidth and image detail.

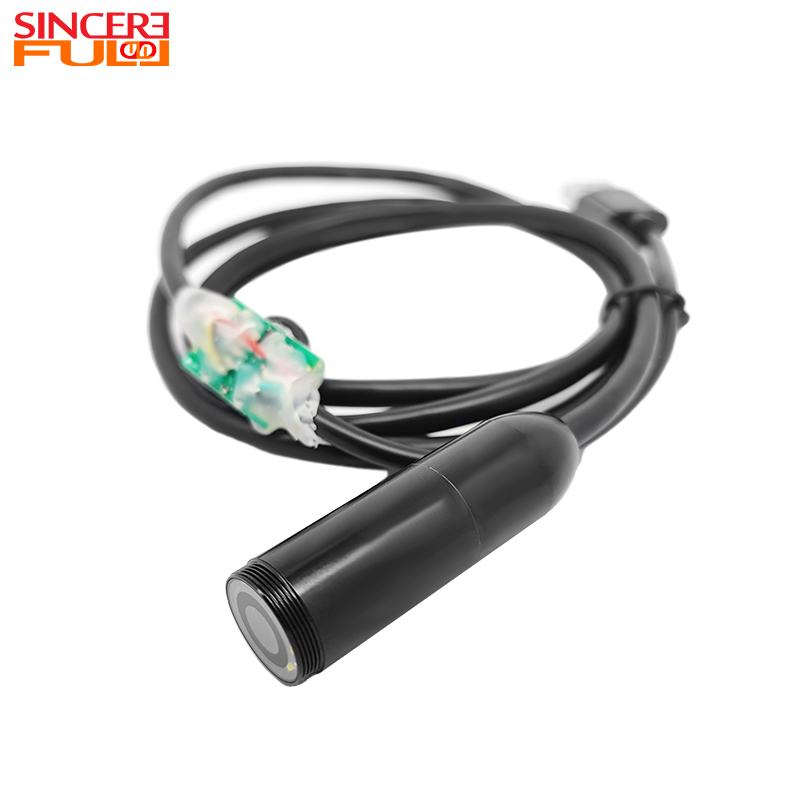

The move toward the 4k endoscope camera is driven by the need for digital zoom and "near-eye" clarity. 4K sensors (8.3 Megapixels) allow surgeons to enlarge a specific area of the surgical site on a large monitor without losing sharpness. This is particularly critical in neurosurgery and robotic-assisted surgery.
Choosing a sensor is only 50% of the challenge. A High Quality Camera Module must solve the physical problems inherent in medical environments.
Heat Dissipation: Sensors generate heat during operation. In a cramped endoscope handle or tip, this heat can degrade image quality (thermal noise). Advanced substrate materials and efficient FPC (Flexible Printed Circuit) designs are required to pull heat away from the sensor.
Signal Integrity: Because endoscope cables can be long, the weak signal from the cmos endoscope camera module must be protected from electromagnetic interference (EMI) caused by other operating room equipment.
Sterilization Cycles: For reusable endoscopes, the module must be housed in a way that survives repeated Autoclave or STERRAD sterilization processes without the sensor shifting or the lens fogging.
In the medical industry, a "good" sensor can be ruined by a "bad" assembly process. This is why the choice of your endoscope camera module manufacturer is as important as the sensor spec sheet.
In a 4k endoscope camera, a single speck of dust (even 5 microns in size) on the sensor will appear as a massive "black hole" on the 55-inch surgical monitor. SincereFirst utilizes Class 10 and 100 dust-free COB (Chip on Board) workshops to ensure that every module is pristine.
To achieve the edge-to-edge sharpness required for medical diagnostics, we use Active Alignment. Instead of just mechanically fitting the lens, we power the sensor and use AI-driven robotics to align the lens in real-time. This ensures that the focus is perfect across the entire surgical field.
Requirement | Recommended Technology | Key Benefit |
Disposable/Ultra-thin | 400x400 or 720p CMOS | Minimal footprint, low cost |
Standard Laparoscopy | hd endoscope camera module | Reliable, industry-standard clarity |
Robotic/Precision Surgery | 4k endoscope camera | Maximum detail, digital zoom capability |
In medical device manufacturing, there is no room for error. The sensor you choose today will be the eyes of a surgeon tomorrow.
SincereFirst brings 30 years of optical expertise to the medical field. By combining high-end cmos endoscope camera module technology with our rigorous 100% quality control and 10-year warranty service, we help medical device companies bring safer, clearer imaging solutions to market.
Are you developing a next-generation surgical tool? Whether you need a custom-shaped FPC or a specific 4K sensor integration, our engineering team is ready to assist.
