When a product needs to inspect narrow internal spaces, camera direction matters just as much as camera size. That is why many engineers and OEM buyers ask: what is a forward-view endoscope camera module?
A forward-view endoscope camera module is a compact camera module designed to look straight ahead from the tip of the endoscope. In simple terms, it captures the view directly in front of the insertion path. This makes it useful for applications where the user needs to move forward through a channel, cavity, or internal structure and see what is ahead in real time.
This forward-looking design is common in inspection tools, maintenance devices, diagnostic systems, and other products that need internal visual access. Compared with a Side-View endoscope camera module, which looks outward from the side of the probe, a forward-view design is usually chosen when the main goal is navigation, direct inspection, or front-facing observation.

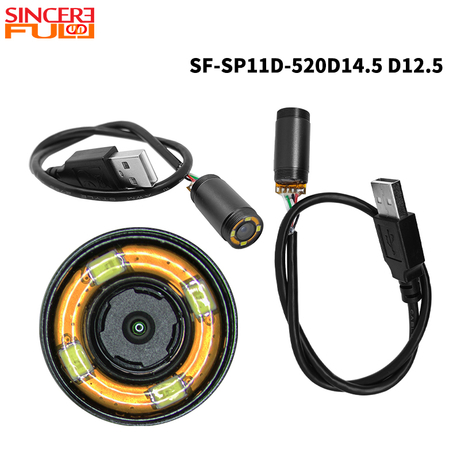

A forward-view endoscope camera module captures images from the front end of the probe or insertion tube. That means the camera is aligned with the direction in which the device is moving.
This may sound simple, but it has an important practical effect. In many inspection tasks, the user is not just looking inside a space. The user is also guiding the probe through the space. A forward-view camera helps with both tasks at the same time by showing the path ahead and the target area in front of the device.
This type of design is often useful when inspecting:
Narrow tubes or cavities
Straight or mildly curved channels
Mechanical interiors
Assembly structures
Service access routes
Internal spaces where front-facing visibility is the main priority
In these situations, a forward-view design supports direct visual guidance and makes it easier to see what is coming next.
The main reason is simple: many inspection tasks require the camera to look in the same direction as the probe is moving.
A forward-view endoscope camera module is often used when the user needs to:
Advance the probe toward a target area
Inspect what is directly ahead
Check for blockage, damage, or internal obstacles
Guide the device through a confined space
Capture front-facing images for diagnosis or review
For example, if a technician is moving an endoscope through a narrow passage, a forward-view camera makes it easier to navigate because the operator can see the route in front of the tip. Without that front-facing view, inspection may become slower or less precise.
This is one reason forward-view modules are widely used in inspection-oriented endoscope systems.
The difference comes down to viewing direction.
A forward-view endoscope camera module looks straight ahead from the tip.
A Side-View endoscope camera module looks outward to the side of the insertion structure.
That difference changes how each type of camera is used.
A forward-view design is typically better when the user needs to:
Move toward the inspection target
See the path ahead
Observe internal structures directly in front of the probe
Use the endoscope as a navigation and inspection tool at the same time
A Side-View endoscope camera module is more suitable when the area of interest is located on the wall or side surface of a tube, cavity, or internal channel. In those cases, side-facing observation may provide a better viewing angle.
So the question is not which type is better in general. The better question is: which viewing direction fits the inspection task?
A forward-view endoscope camera module can be used in many kinds of inspection and embedded imaging products. The exact application depends on module size, lighting design, probe structure, and the environment in which the device operates.
Typical use cases include:
Industrial inspection tools
Internal maintenance devices
Pipe and cavity inspection systems

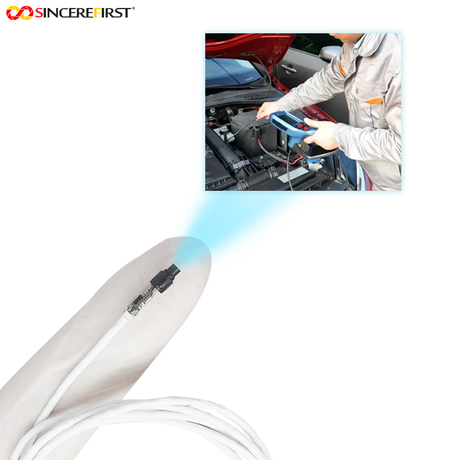

Automotive service tools
Equipment diagnosis devices
Specialized OEM endoscope products
In these products, the camera often needs to provide a clear view into a narrow space while the probe continues moving forward. That is where a forward-view layout becomes especially useful.
For some applications, a Side-View endoscope camera module may be added as an alternative or complementary option. But when the inspection path itself matters, forward-view is often the more direct solution.
A forward-view design offers several practical benefits.
The most obvious advantage is that it shows exactly what is in front of the probe. This supports real-time navigation and makes the inspection process easier to control.
In confined environments, users often need to move carefully to avoid contact, obstruction, or missed inspection areas. A forward-view endoscope camera module helps guide that movement by providing visual access along the insertion direction.
If the problem is expected to be directly ahead, such as blockage, debris, damage, or internal wear along a passage, a forward-view layout is often the most practical approach.
For OEM products, a forward-view design is often easier to match with standard inspection logic because it follows the natural movement of the device.
That said, these advantages do not mean forward-view is always the right answer. In some inspection paths, side-facing observation is more useful. That is why many buyers compare forward-view endoscope camera module options with Side-View endoscope camera module designs before making a final decision.
Choosing a forward-view endoscope camera module involves more than just selecting a viewing direction. The module needs to match the actual product structure and inspection conditions.
Important factors include:
Camera head size
Working distance
Image clarity at close range
Illumination in dark internal spaces
Probe diameter and flexibility
Signal transmission method
Environmental protection requirements
Integration with the final device
For example, a compact forward-view module may be needed for a small-diameter inspection path, while another project may need a larger optical format for improved image quality. In other cases, the decision between a forward-view design and a Side-View endoscope camera module depends on where the inspection target is located inside the device or channel.
This is why viewing direction should be chosen based on the real inspection geometry, not just by preference.
A camera module is only one part of an endoscope product. In real OEM development, performance depends on the complete system, including:
The camera module
LED lighting
Probe structure
Cable or tube design
Lens choice
Mechanical durability
Display or image processing integration
A forward-view endoscope camera module may be the correct choice on paper, but it still needs to work with the rest of the product design. The same applies to a Side-View endoscope camera module. A viewing direction only becomes useful when the full inspection system supports it properly.
For that reason, OEM buyers usually get better results by evaluating the final application first and then choosing the camera layout that fits the actual task.
For companies developing custom inspection or service devices, a forward-view endoscope camera module is often a practical starting point because it supports intuitive front-facing imaging. It works well in products where the user needs to insert, guide, and inspect in one continuous process.
At the same time, there are applications where a Side-View endoscope camera module is the better fit, especially when inspection targets are located along the inner wall rather than directly ahead.
That is why custom development often begins with a basic question: where is the target located relative to the probe? Once that is clear, the camera direction can be selected more effectively.
At SincereFirst, we understand that endoscope camera selection depends on the actual inspection task. A suitable solution should match the viewing direction, module size, lighting needs, probe structure, and integration requirements of the final product.
Whether the project requires a forward-view endoscope camera module for front-facing inspection or a Side-View endoscope camera module for wall or side-surface observation, the best choice depends on the real use environment and device design.
With experience in camera module manufacturing and OEM customization, SincereFirst supports customers in developing endoscope camera solutions for industrial, embedded, and specialized inspection applications.
So, what is a forward-view endoscope camera module?
It is a compact endoscope camera module designed to look straight ahead from the tip of the device. This makes it useful for inspection tasks where users need to see the path in front of the probe and inspect target areas directly ahead.
Compared with a Side-View endoscope camera module, a forward-view design is usually the better fit for front-facing navigation and direct internal observation. The right choice depends on where the inspection target is located and how the device is used in practice.
If you are developing an endoscope-based product and need support with camera module selection or OEM customization, SincereFirst can help you evaluate the right imaging solution for your application.
Contact SincereFirst to discuss your forward-view endoscope camera module project.
