Introduction
Endoscope cameras often work in dark, tight spaces – inside pipes, engine cylinders, or the human body. Good low light performance is essential. If the camera cannot see well in dim conditions, the image becomes noisy, dark, or blurry, making it hard to spot defects or tissue problems. This article explains how endoscope camera module designs handle poor lighting, what limits their low‑light ability, and how to choose the right hd endoscope camera module for your needs.
Why Low Light Is Challenging
Unlike a smartphone that can use a bright flash, an endoscope camera module has very little space for LEDs. Illumination usually comes from a few tiny LEDs around the lens. The camera must work with very little reflected light. In low light, two problems appear:
Dark image – not enough photons reach the sensor.
Noise – the sensor amplifies the signal, which also amplifies random electronic noise, causing a grainy image.
Manufacturers use several techniques to improve low light performance.
1. Choose a Sensitive CMOS Sensor
Most modern scopes use a cmos endoscope camera module. CMOS sensors are naturally more sensitive than older CCDs at the same power. Back‑illuminated (BSI) technology places the wiring behind the pixels, allowing more light to hit the sensitive area. A cmos endoscope camera module with BSI can be 30–50% more sensitive in low light than a non‑BSI sensor of the same pixel size.
For example, the Sony IMX290 is popular in medical and industrial scopes because of its excellent low‑light performance thanks to BSI.
2. Increase Pixel Size (or Use a Larger Sensor)
Larger pixels collect more light. A 2.0 µm pixel captures four times as many photons as a 1.0 µm pixel. In a given endoscope camera module, the sensor size is limited by the tip diameter. Very thin scopes (under 3 mm) must use tiny sensors (e.g., 1/9″) with small pixels, so they struggle in low light. A hd endoscope camera module (1080p) with a 1/4″ or 1/3″ sensor has larger pixels and much better low‑light performance.
3. Use High‑Quality Optics
A lens with a larger aperture (smaller f‑number) lets more light reach the sensor. An f/2.0 lens transmits twice as much light as f/2.8. In a flexible endoscope camera module, the lens is often the limiting factor – it must be small and cheap. High‑end scopes use multi‑element glass lenses with f/1.8 to f/2.4 to improve low light capture.
4. Optimise LED Illumination
The built‑in LEDs are the main light source. To improve low light imaging:
Use LEDs with higher light output per watt.
Place LEDs as close to the lens as possible.
Pulse the LEDs synchronised with the sensor’s exposure (global shutter sensors allow this without flicker).
Some flexible endoscope camera module designs use fibre optic light guides instead of LEDs, connecting to an external high‑intensity light source – common in medical laparoscopes.
5. Apply Digital Noise Reduction
Even with good hardware, some noise remains. The camera’s ISP (image signal processor) applies spatial and temporal noise reduction. Spatial NR smooths the current frame; temporal NR averages several frames. Both reduce grain but can also blur fine details. A good hd endoscope camera module balances noise reduction and detail preservation.
6. Lower Frame Rate to Increase Exposure Time
In very dark scenes, the camera can increase exposure time. For example, dropping from 30 fps (33 ms per frame) to 15 fps (66 ms per frame) doubles the light collected. The trade‑off is choppier video – acceptable for stationary inspection but not for fast movement.
Low‑Light Performance by Endoscope Type
Type | Typical Sensor | Low‑Light Performance | Reason |
|---|---|---|---|
Flexible endoscope camera module (medical, 2–4 mm) | 1/9″ to 1/6″ CMOS | Poor to average | Very small pixels |
HD endoscope camera module (industrial, 5–8 mm) | 1/3″ BSI CMOS | Good | Larger pixels, BSI |
Flexible endoscope camera module with fibre light | 1/4″ CMOS | Very good | External bright source |
USB endoscope (consumer, 5.5 mm) | 1/4″ rolling shutter | Average | Low‑cost lens and LEDs |
Practical Tips for Better Low‑Light Endoscopy
Add external lighting – Use a separate light source (fibre optic or bright LED ring) if possible.
Choose a BSI sensor – Ask if the cmos endoscope camera module uses BSI technology.
Reduce frame rate – Many software tools let you lower fps, increasing exposure time.
Clean the lens – Dust or moisture reduces light transmission.
Increase LED brightness – Some endoscopes have adjustable LED current; set it to maximum.

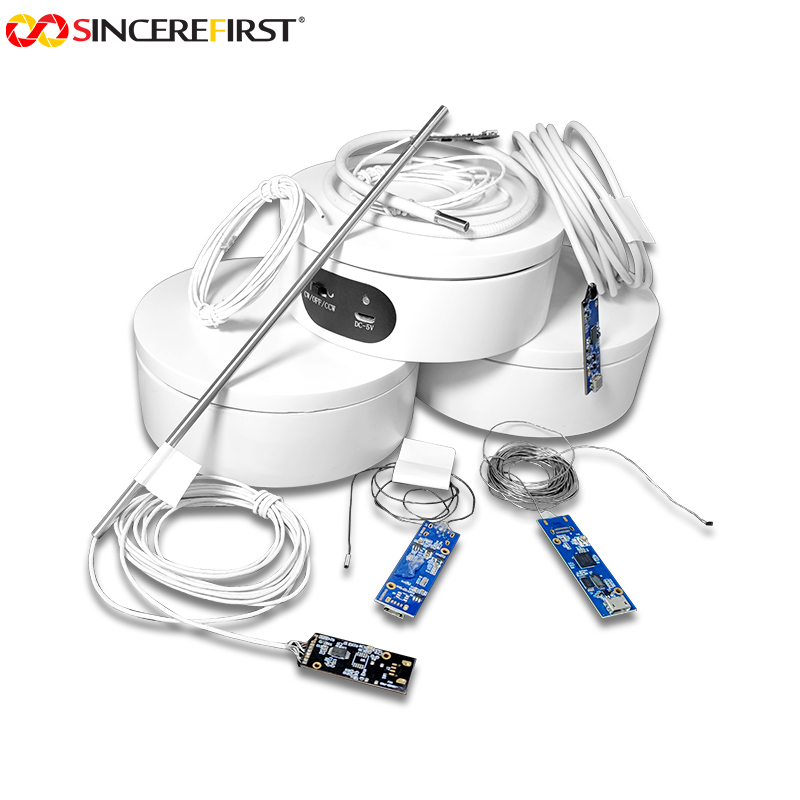

Sincere’s Low‑Light Endoscope Camera Modules
At Sincere, we design endoscope camera module products with low light as a key metric:
Cmos endoscope camera module – BSI sensors for high sensitivity.
Hd endoscope camera module – 1080p with 1/3″ large‑pixel sensors.
Flexible endoscope camera module – Options with fibre optic light guide ports.
Summary
Low light performance in an endoscope camera module depends on sensor sensitivity (BSI CMOS), pixel size (sensor format), lens aperture, LED illumination, and noise reduction. A hd endoscope camera module with a 1/3″ BSI sensor gives excellent results for most inspections. For very tight spaces, a flexible endoscope camera module with a tiny sensor will have poorer low‑light ability – you may need external illumination. Understanding these factors helps you choose the right cmos endoscope camera module for dark, demanding environments.
