In the world of medical diagnostics and precision industrial inspection, "space" is a luxury that engineers rarely have. When you are designing a tool to navigate a human artery or a jet engine turbine, every tenth of a millimeter matters.
As a Camera Module manufacturer with over 30 years of expertise, SincereFirst has watched the industry shrink from bulky fiber-optic systems to the modern "Chip-on-Tip" revolution. Today, the question isn't just "how small can we go?" but "how small can we go while still seeing clearly?"
This article explores the current limits of miniaturization and defines what truly constitutes the smallest endoscope camera module available in the professional market today.
In the commercial landscape, we categorize the "smallest" modules into two distinct tiers. While laboratory prototypes exist at smaller scales, these are the dimensions currently viable for mass production and reliable field use:
The 1mm Standard: The 1mm endoscope camera module is currently the "sweet spot" for high-end medical applications. It provides a balance of reasonable resolution (typically around 200x200 to 400x400 pixels) and physical durability. It is widely used in ureteroscopes and bronchoscopes.
The 0.9mm Frontier: The 0.9mm endoscope camera module represents the bleeding edge of sub-millimeter imaging. These are specialized components used for neuro-endoscopy or intravascular imaging, where the device must navigate the body's most delicate pathways.
To put this in perspective, a standard sewing needle is roughly 1mm thick. Modern micro endoscope camera module technology allows us to fit a sensor, a lens, and illumination within that same diameter.
The transition from fiber-optics to digital modules was made possible by a design philosophy called "Chip-on-Tip." In a traditional endoscope camera module, the sensor was located outside the body, and the image was "carried" through glass fibers. This led to grainy, "honeycomb" images.

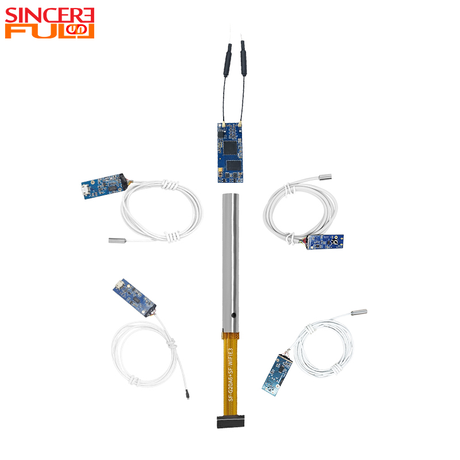

The modern micro endoscope camera module places the CMOS sensor directly at the distal end (the tip) of the scope. This requires three critical technological breakthroughs:
In a 0.9mm space, you cannot use traditional plastic injection-molded lenses. Instead, lenses are grown on a silicon wafer and bonded directly to the sensor. This eliminates the "air gap" and allows for a significantly shorter and thinner optical track.
Companies like OmniVision and Sony have developed sensors with pixel sizes as small as 1.1 microns. This high pixel density allows an endoscope camera module to deliver recognizable images even when the total sensor area is less than 0.5 square millimeters.
Connecting a 0.9mm endoscope camera module to a processing unit requires ultra-fine flexible printed circuits (FPCs). These cables are often thinner than a human hair and must be shielded against electromagnetic interference to prevent image artifacts during surgery or high-voltage industrial testing.
The demand for the smallest endoscope camera module comes from sectors where the cost of "not seeing" is catastrophic.
In cardiology and neurology, the goal is to reduce patient trauma. A 1mm endoscope camera module allows for "needle-view" procedures, where the entry point is so small it doesn't even require stitches. Surgeons can visualize the interior of a heart valve or the delicate structures of the brain in real-time.
In aerospace, technicians use an industrial endoscope camera to inspect the cooling holes of turbine blades. These holes are tiny, often less than 2mm wide. A micro endoscope camera module allows for the inspection of internal cracks or blockages without dismantling a multi-million dollar engine.
Being a transparent collaborator, we must address the "candid truth": as you shrink a camera, you pay a "physics tax."
Resolution Limits: You won't get 4K quality in a 1mm footprint. The current limit for a 0.9mm endoscope camera module is typically around 160,000 pixels (400x400). While this sounds low, it is sufficient for diagnostic purposes when viewed on a high-end medical monitor with AI-upscaling.
Light Sensitivity: A smaller lens captures fewer photons. Therefore, these modules require high-intensity LED or fiber-optic illumination integrated into the tip, which can generate heat.
Thermal Management: CMOS sensors generate heat. In a cramped 1mm space, this heat can't escape easily. Professional manufacturers must use specialized substrates to pull heat away from the sensor to prevent "thermal noise" from ruining the image.
When you are dealing with a smallest endoscope camera module, the margin for error is effectively zero. A single microscopic speck of dust can cover 20% of the sensor.
SincereFirst operates Class 10 and 100 dust-free COB workshops. This environment is mandatory for assembling sub-millimeter modules. At this scale, manufacturing isn't just about assembly; it's about surgical-level cleanliness.
In a 1mm endoscope camera module, you cannot manually align the lens to the sensor. SincereFirst uses 6-axis Active Alignment (AA) robotics. We power the sensor during assembly, and the robot adjusts the lens in real-time until the focus is mathematically perfect across the entire frame.
Most "cheap" micro-cameras fail after a few uses due to thermal stress or moisture ingress. SincereFirst offers a 1-year replacement and 10-year warranty service. In the medical and industrial sectors, where equipment must be reliable for a decade, this long-term support is a prerequisite for any procurement manager.
Feature | 0.9mm Endoscope Module | 1mm Endoscope Module |
Best For | Cardiology, Neurology, Micro-electronics | Pulmonology, Urology, General NDT |
Resolution | ~40k - 100k Pixels | ~100k - 160k Pixels |
Manufacturability | High complexity / Lower yield | High reliability / Standard production |
Connectivity | Typically MIPI / Specialized Analog | USB endoscope camera module / MIPI |
The smallest endoscope camera module available today—the 0.9mm to 1mm range—is a marvel of modern engineering. It bridges the gap between the impossible and the observable.
However, choosing the smallest module just for the sake of size is rarely the right move. You must balance the physical constraints of your device with the image quality required for the task. Whether you are building a medical endoscope camera for life-saving surgery or an industrial endoscope camera for turbine maintenance, your success depends on the precision of the optics and the reliability of the manufacturer.
SincereFirst brings 30 years of high-tech R&D to your project. We don't just sell modules; we provide the "Intelligent Eyes" that allow your products to go where others cannot.
Are you designing a device with extreme space constraints? Our engineering team can help you determine if a 0.9mm or 1mm endoscope camera module is the right fit for your application.
Would you like me to send you the technical datasheet for our sub-1mm medical-grade sensor series?
