In the specialized field of optical imaging, few components are as transformative as the endoscope camera module. These tiny "intelligent eyes" allow us to visualize environments that are otherwise physically inaccessible—whether it is the interior of a human artery or the combustion chamber of a jet engine.
As a manufacturer with 30 years of experience, SincereFirst has seen endoscope technology evolve from grainy, low-resolution analog feeds to ultra-high-definition digital systems. If you are an engineer or a procurement manager, understanding the technical advantages of modern modules is key to selecting the right imaging solution for your project.
The most significant advantage of modern endoscope modules is the massive leap in pixel density. In the past, miniaturization meant sacrificing image quality. Today, we utilize high-caliber sensors from partners like Sony and OmniVision to provide desktop-level clarity in a sub-millimeter footprint.
720p Endoscope Camera Module: This remains the "workhorse" for many industrial applications. It provides a crisp, clear image sufficient for most pipe inspections and basic automotive diagnostics while maintaining a very low camera module cost.
1080p Endoscope Camera Module: This is the current gold standard for the medical endoscope camera module. Full HD resolution allows surgeons to identify tissue pathologies with high confidence, reducing the risk of misdiagnosis.
4K Endoscope Camera Module: Representing the cutting edge, a 4k endoscope camera module offers four times the detail of 1080p. This is critical for ultra-high-precision tasks, such as micro-vascular surgery or semiconductor failure analysis, where every micron of detail matters.
In endoscopy, a static image is only half the story. When a surgeon is moving a tool or an industrial robot is navigating a moving assembly line, "lag" or motion blur can be catastrophic.
A 60fps endoscope camera module (60 frames per second) provides a smooth, real-time visual experience.
Medical Use: During a laparoscopy, a 60fps feed allows the doctor to react instantly to bleeding or movement, ensuring the visual feedback matches their hand movements perfectly.
Industrial Use: In high-speed turbine inspections, a high frame rate ensures that cracks aren't missed as the probe moves quickly through the machinery.

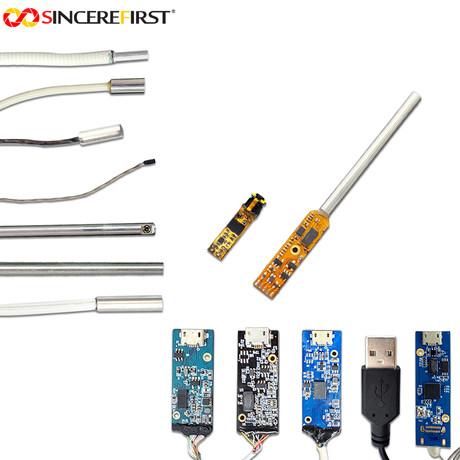

How do we fit a 1080p endoscope camera module into a tube only 1.5mm wide? The advantage lies in COB (Chip on Board) technology.
By bonding the imaging sensor directly to the PCB in a Class 10/100 dust-free workshop, we eliminate the bulky plastic housing found in traditional cameras. This allows for:
Ultra-thin diameters: We can produce modules as small as 0.9mm.
Better Heat Dissipation: In small enclosures, heat is the enemy. Direct bonding allows the module to shed heat more efficiently, preventing the "focus drift" caused by thermal expansion.
The advantages of an endoscope module are often defined by the environment it is built to survive.
Biocompatibility: These modules are sealed with medical-grade adhesives that are non-toxic to human tissue.
Sterilization Resistance: Designed to survive repeated cycles of ETO (Ethylene Oxide) gas or chemical soaks without the lens fogging or the electronics corroding.
Ruggedness: An Industrial endoscope camera module is often exposed to gasoline, hydraulic fluids, and extreme temperatures (up to 100°C).
Focal Length Versatility: While medical modules focus on close-up tissue (3mm–50mm), industrial modules often have a deeper focus (20mm–100mm+) to inspect the vast interiors of pipes and tanks.
Perhaps the most technical advantage provided by a top-tier manufacturer like SincereFirst is the AA (Active Alignment) Process.
In high-resolution modules (especially 4K), even a one-micron tilt in the lens can cause the edges of the image to be blurry.
How it works: We power the module on during assembly. A robotic arm adjusts the lens in 6-axis space, analyzing the live image until it is perfectly sharp across the entire sensor.
The Advantage: This ensures that your 4k endoscope camera module performs at its theoretical maximum, providing edge-to-edge sharpness that manual assembly cannot match.
Feature | Technical Benefit | Best For |
4K Resolution | Maximum detail for microscopic analysis | Precision Surgery / Research |
60fps Frame Rate | Zero-lag real-time visual feedback | Dynamic surgical procedures |
AA Manufacturing | Edge-to-edge sharpness and consistency | High-end OEM/ODM projects |
COB Packaging | Sub-millimeter diameters (down to 0.9mm) | Minimally invasive tools |
10-Year Warranty | Long-term reliability and lower ROI cost | Industrial and Medical Infrastructure |
The advantages of endoscope camera modules lie in the intersection of extreme miniaturization and uncompromised image quality. Whether you need a cost-effective 720p endoscope camera module for routine maintenance or a state-of-the-art 60fps endoscope camera module for life-saving surgery, the manufacturing process—specifically AA technology and cleanroom standards—is what determines the final success of your device.
With 30 years of experience and a production capacity of 3 million units per month, SincereFirst is equipped to turn these technical advantages into a competitive edge for your business.
