In the development practices of consumer electronics peripherals, industrial vision terminals, and open-source hardware projects, the selection of imaging modules often faces a set of interrelated engineering constraints: image clarity must meet the application's basic requirements for detail, system integration efficiency calls for standardized interface and protocol support, environmental adaptability must match the operating conditions of the target scenario, and cost control imposes clear demands on solution economy. When these multiple constraints must be satisfied within a single system, a USB camera module featuring 2MP resolution, UVC protocol support, and IP67 waterproofing becomes a technically viable option warranting systematic evaluation. This article aims to establish a selection framework for such 2MP-class UVC modules based on the GC2755 sensor, and to elucidate the intrinsic logical connections between technical parameters and specific application scenarios, encompassing everything from a compact camera mini usb endoscope module to a professional industrial borescope system.
The effective pixel array of 2MP (1920×1080) has been widely accepted as the benchmark threshold for high-definition imaging in the consumer electronics domain. However, in selection evaluation, it is necessary to move beyond the simplified understanding that "1080P equals HD" and deeply understand the substantial impact of pixel size on image quality.
The 1.6μm × 1.6μm pixel size is a core parameter distinguishing this module from congeneric products. Compared to the 0.8 to 1.2μm pixel sizes common in today's high-pixel sensors, the 1.6μm design increases the photosensitive area per pixel by a factor of 1.8 to 4. This difference carries substantial significance in moderate and low-light environments—under indoor illumination or LED fill light conditions, larger pixel area translates directly to higher signal-to-noise ratio and lower noise levels, allowing dark-area details to be preserved rather than submerge in random noise. This characteristic is particularly valuable when the module is used as an endoscope camera for inspecting dark cavities or as a industrial borescope for examining machinery interiors with limited lighting access.
Unlike bare sensor chips, this module integrates the lens, sensor, and USB control chip into a single package, forming a complete imaging system. This level of integration means developers can obtain image data directly through the standard UVC interface without handling underlying sensor configuration and ISP debugging. For small to medium-sized enterprises or maker teams lacking chip-level development resources, this translates to software development cycles cut down by weeks and eliminates the technical risk of sensor driver development. Whether building a dedicated endoscope depstech-compatible device or a custom HD Camera Module solution, this integration significantly accelerates time-to-market.
The combination of DFOV 80° field of view and 25 to 40mm focus range reflects pertinence design for medium to close-range imaging scenarios. The 80° field of view covers approximately 40 to 70mm of field width at typical working distances, making it suitable for common applications such as desktop document capture, product presentation, and facial recognition. What needs to be evaluated is that barrel distortion at this field of view is controlled within 2%, meaning it can be directly used for size estimation or position localization without complex software correction. This geometric fidelity is essential for any industrial borescope application where accurate defect sizing is required.
The focus range fixed at 25 to 40mm is an inherent characteristic of fixed-focus systems. Its advantage lies in determinism—eliminating the motor, driver IC, and control logic required for autofocus reduces cost, compresses size, improves shock resistance, and completely eliminates focus delay. The trade-off is that depth of field becomes a fixed optical property,it cannot pass focus adjustment to compensate for significant variations in working distance. Specifiers should verify whether the working distances in typical application scenarios fall within this range—if primary imaging tasks are concentrated at ultra-close distances under 25mm or medium-long distances beyond 40mm, consideration should be given to replacing the lens to adjust the relevant parameters. For an endoscope camera used in pipe inspection, this focus range typically aligns well with the distances encountered inside pipes.
Low-light performance is another technical highlight of this module. The optimized pixel design, combined with automatic exposure and automatic white balance control, enables it to maintain usable images in poorly lit environments. For equipment that must operate in warehouses, factories, and other locations with uncontrollable lighting conditions, this characteristic has practical engineering value. Whether deployed as a standalone HD Camera Module or integrated into a camera mini usb endoscope module for field use, consistent low-light performance ensures reliable operation across diverse environments.
Support for the UVC protocol is the most distinctive feature of this module at the system integration level. The essence of the UVC protocol is to abstract the camera device as a standard operating system resource, enabling plug-and-play functionality across mainstream platforms such as Windows, Linux, Android, and macOS without the need for dedicated driver development. For device manufacturers, this means software development cycles can be reduced by 4 to 8 weeks, and there is no need to maintain multiple driver sets for different operating systems. For companies developing endoscope depstech-compatible products or custom inspection solutions, this standardization dramatically reduces integration complexity.
Support for the OTG protocol further expands its application boundaries. Connection to mobile devices such as phones requires only OTG cable support, enabling the module to serve directly as a visual peripheral for mobile terminals. For projects requiring development of portable inspection equipment or mobile application companion hardware, this characteristic significantly enhances product form flexibility. A smartphone paired with a camera mini usb endoscope module becomes a powerful portable inspection tool, rivaling dedicated industrial borescope systems for many routine tasks.
Support for dual-format output (MJPEG and YUYV) gives system designers choice between image quality and bandwidth. The MJPEG format independently compresses each frame using JPEG, reducing data volume to 10% to 20% of the original size, enabling stable 1080P@20-30fps transmission within the 480Mbps bandwidth limit of USB 2.0. The YUYV format provides raw video data, preserving complete color and luminance information without compression artifacts, making it suitable as an input source for algorithmic analysis, but requiring higher transmission link bandwidth. Selection decisions should be based on the final purpose of the image data: for manual monitoring or archival recording, the bandwidth advantages of MJPEG format are more pronounced; for quantitative measurement or AI model inference, YUYV format is typically the more reliable choice. For an endoscope camera used in medical or precision industrial applications, YUYV output may be preferred to preserve all原始 data for subsequent analysis.

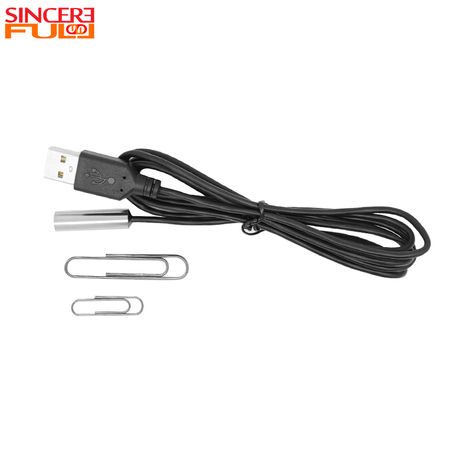

The combination of stainless steel housing and IP67 waterproof rating forms the core hardware foundation for this module to cope with harsh environments. The specific meaning of the IP67 protection level is: completely dust-tight (level 6), and capable of continuous immersion in 1 meter deep water for 30 minutes without affecting normal operation. This level of protection addresses typical environmental threats encountered in industrial inspection, outdoor monitoring, and commercial terminal application scenarios—dusty workshops,潮湿 pipelines, outdoor rain exposure, and liquid splash are all within the coverage of IP67 protection. This ruggedness is essential for any industrial borescope deployed in manufacturing environments or for an endoscope camera used in field service applications.
It must be clarified that IP67 is not a universal protection guarantee. Its application boundaries include: not suitable for high-temperature liquid environments (water above 80°C may cause sealing material aging); not suitable for high-pressure water spray scenarios (IP69K is designed for high-pressure washing); not recommended for a long time underwater operation (waterproof performance may degrade with increased insertion cycles). For applications involving corrosive liquids or requiring repeated sterilization, specifiers should consult suppliers to customize higher protection class solutions. When adapting a camera mini usb endoscope module for medical or food processing environments, these limitations must be carefully considered.
The adoption of a steel housing serves not only waterproofing requirements but also provides structural rigidity assurance. During device integration and use, the metal housing can effectively absorb mechanical shock energy, protecting internal optical components and circuit boards from damage. For applications requiring frequent insertion and removal or potentially subject to accidental impact, this design can significantly reduce field failure rates. Whether deployed as a permanent installation or a portable endoscope camera, mechanical reliability directly impacts total cost of ownership.
Macroscopic Visual Inspection: In scenarios requiring fine detail capture such as jewelry appraisal or precision parts observation, 2MP resolution and distortion control below 2% suffice for accurate identification of mini scratches, color differences, and deformations. The 25 to 40mm focus range Just right covers typical workbench inspection distances, and the 80° field of view can prefecely present the overall appearance of medium-sized objects under inspection. What needs verification is whether the LED fill light configuration meets illumination requirements for different materials (metal, gemstone, plastic). An industrial borescope used for quality control in manufacturing shares these same requirements.
Consumer Smart Devices: In the integration of smart home products, portable cameras, and consumer electronics peripherals, the plug-and-play of the UVC protocol enables direct connection to main control chips without complex driver development. Support for the OTG protocol allows direct connection to mobile devices such as phones, expanding product form possibilities. IP67 waterproofing provides safety margins for scenarios that may touch liquids (such as kitchen monitoring or bathroom equipment). For consumers familiar with brands like endoscope depstech, this level of environmental protection has become an expected feature.
Open Source Hardware Development: In maker projects and rapid prototype verification, the parameter adjustability of the module makes it an ideal choice. Developers can send control commands via USB interface to adjust parameters such as brightness, contrast, and saturation to match different application requirements. The standardized UVC interface enables seamless integration with mainstream open-source platforms such as Arduino, Raspberry Pi, and Jetson Nano, significantly shortening the implementation cycle from concept to prototype. A camera mini usb endoscope module paired with a Raspberry Pi creates a powerful and flexible inspection system at minimal cost.
Commercial Visual Terminals: In self-service terminals, video conferencing equipment, and commercial displays requiring stable real-time preview, the 20 to 30fps frame rate ensures smooth menu without stuttering. The low bandwidth occupation of MJPEG format makes multi-channel video concurrent possible, and IP67 protection provides environmental reliability assurance for terminal equipment deployed outdoors. Whether integrated into a custom HD Camera Module solution or used as a standalone component, consistent performance under varying conditions is essential for commercial applications.
Specialized Endoscope Applications: For dedicated inspection tools, the module can be configured as a high-performance endoscope camera for applications ranging from automotive diagnostics to building inspection. When built into a purpose-built industrial borescope, the combination of HD resolution, UVC plug-and-play, and IP67 ruggedness creates a professional-grade inspection instrument. For users familiar with consumer brands like endoscope depstech, the transition to industrial-grade tools based on the same fundamental technology is seamless, offering enhanced durability and image quality while maintaining intuitive operation.
Based on the above analysis, the recommended selection decision path is as follows:
First, Imaging Task Characterization. Clearly define whether the core application is qualitative observation or quantitative measurement. For qualitative tasks such as jewelry appraisal or defect identification, the existing resolution and distortion control are sufficient; if dimensional measurement or position localization is involved, calibration algorithms must be introduced, and the measurement uncertainty of pixel-to-object dimension correspondence should be verified through actual testing. For a precision industrial borescope, this validation step is critical.
Second, Working Distance Verification. Measure the working distance distribution in typical application scenarios to confirm whether it falls within the 25 to 40mm range. For applications outside this range, evaluate the feasibility and cost impact of lens replacement. When designing a custom camera mini usb endoscope module, this may involve selecting alternative optics to match the specific use case.
Third, Environmental Adaptability Assessment. Analyze dust, humidity, and liquid contact risks in the target environment to confirm whether the IP67 protection level is sufficient. For scenarios that may involve oil or chemicals, request corrosion resistance data for the stainless steel material. An endoscope camera used in automotive repair faces different environmental challenges than one used in medical simulation, and these differences should guide specification decisions.
Fourth, Platform Compatibility Testing. Verify UVC protocol plug-and-play compatibility on target host devices, and test the decoding stability and frame rate maintenance capability of MJPEG and YUYV dual formats under different operating systems. For users integrating with platforms like endoscope depstech software or custom mobile applications, comprehensive compatibility testing prevents field issues.
Fifth, Illumination Condition Verification. Test low-light imaging performance in simulated working environments, evaluating the response speed and accuracy of automatic exposure and automatic white balance algorithms. For extreme dark environments, consider external fill light solutions. An industrial borescope used in pipeline inspection may require additional illumination beyond what the basic module provides.
The selection of a 2MP HD UVC camera module is essentially a process of progressively translating highly specific application constraints into verifiable technical specifications. Its value lies not in lead individual parameters, but in finding the combination solution with the highest match for the target scenario amidst multiple constraints including resolution, pixel size, field of view, focus range, interface protocol, and protection level. Successful selection stems from clear answers to fundamental questions about the target application: "How fine are the details?", "What is the working distance?", "How harsh is the environment?", "What is the host platform?".
When these answers achieve intrinsic alignment with the technical specifications, the selection decision transcends passive specification comparison, elevating to the professional practice of actively defining system solutions—whether for a compact camera mini usb endoscope module, a dedicated endoscope camera, a consumer-friendly endoscope depstech-compatible device, a rugged industrial borescope, or a precision HD Camera Module for specialized applications. In each case, the underlying technology remains the same, but its application-specific configuration and integration determine ultimate success in solving the user's real-world problem. The GC2755-based UVC module, with its balanced combination of performance, standardization, and environmental resilience, provides a versatile foundation upon which countless such solutions can be built.
