SF-USB4.5-720 V1
SINCEREFIRST

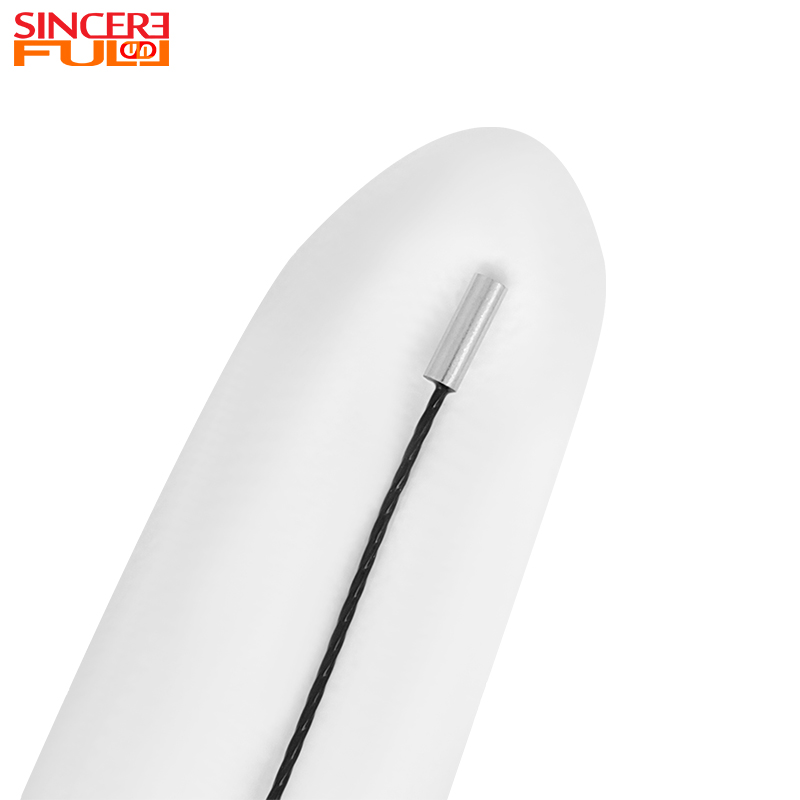

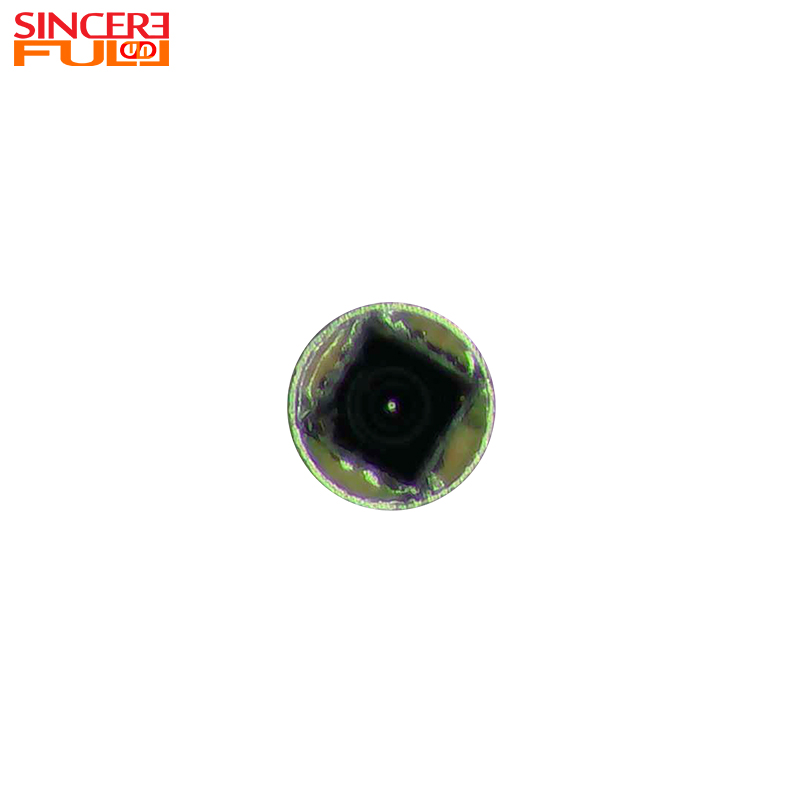

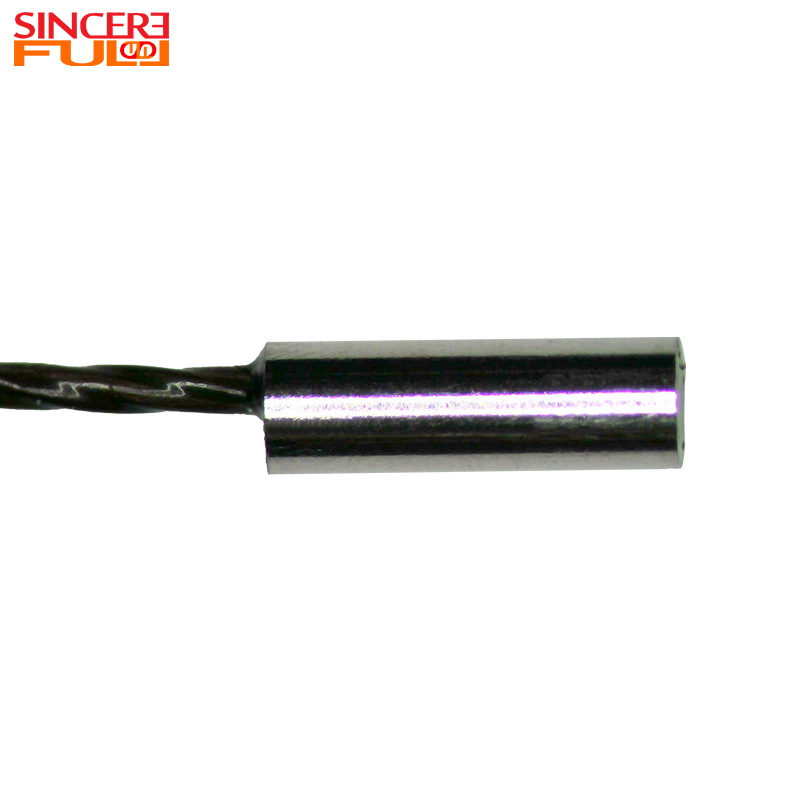

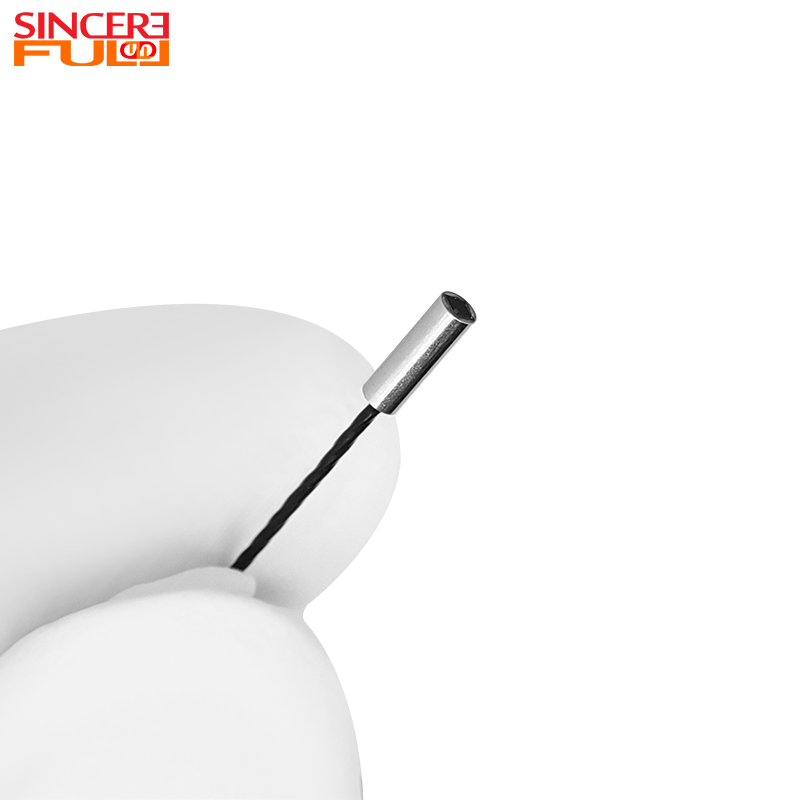

| This is a high-performance image sensor with the OV9734 chip. This 110° wide-angle optical module demonstrates extraordinary imaging stability within a wide focusing range of 10-100mm. The F4 large aperture design ensures high image quality even in complex lighting conditions. The system strictly controls the wide-angle distortion within 20%, solving the problems of edge distortion and resolution reduction of traditional wide-angle lenses. Its unique near-focus imaging capability and deep depth of field performance enable the product to capture both macroscopic scenes and present microscopic details. |  |
1.Low voltage: VBUS 3.6-5.5V.
2.Low-light performance : performs well in low light, effectively reduces noise, and ensures clear, clean images even in dimly lit areas .
3.Color reproduction : Can faithfully reproduce the true colors of human tissues and organs, helping doctors to make a more intuitive judgment of the health of tissues .
1.Gastroscopy and Colonoscopy: Provides high-resolution images that clearly show details, which helps doctors accurately diagnose diseases .
2.Cystoscopy : In a cystoscopy, a detailed image of the inside of the bladder is captured, which helps the doctor observe any changes in the bladder.
3.Neuroendoscopy : Used to observe the details inside the nervous system to assist doctors in diagnosing and treating the nervous system.
Product Name | USB Borescope Camera for medical |
Basic tolerance | ±0.1mm |
DSP | USB |
Sensor | OV9734 |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
LED: | 6pcs 0402 |
TV Distortion | ＜-20% |
FOV(D) | 110° |
1.What are the differences between medical and industrial endoscope modules?
Medical modules emphasize biocompatibility, sterilization and high image quality, and must comply with FDA/CE certification. Industrial modules focus on durability (such as corrosion resistance), wide-temperature operation (-20°C to 70°C), and special light sources (such as UV).
2.How to clean the camera lens of an endoscope?
Use a sterile soft cloth and a dedicated lens cleaner to prevent alcohol from damaging the coating. Industrial modules can be air-blown to remove dust. In oily environments, oil-resistant solvents need to be used in combination.
3.What interface types are there for modules?
Common interfaces include USB3.0, HDMI, SDI, etc. In industrial scenarios, PoE power supply interfaces may be used, while medical devices mostly integrate dedicated medical imaging interfaces.
