SF-YL0320-V1+SF-N1050-V1
SINCEREFIRST

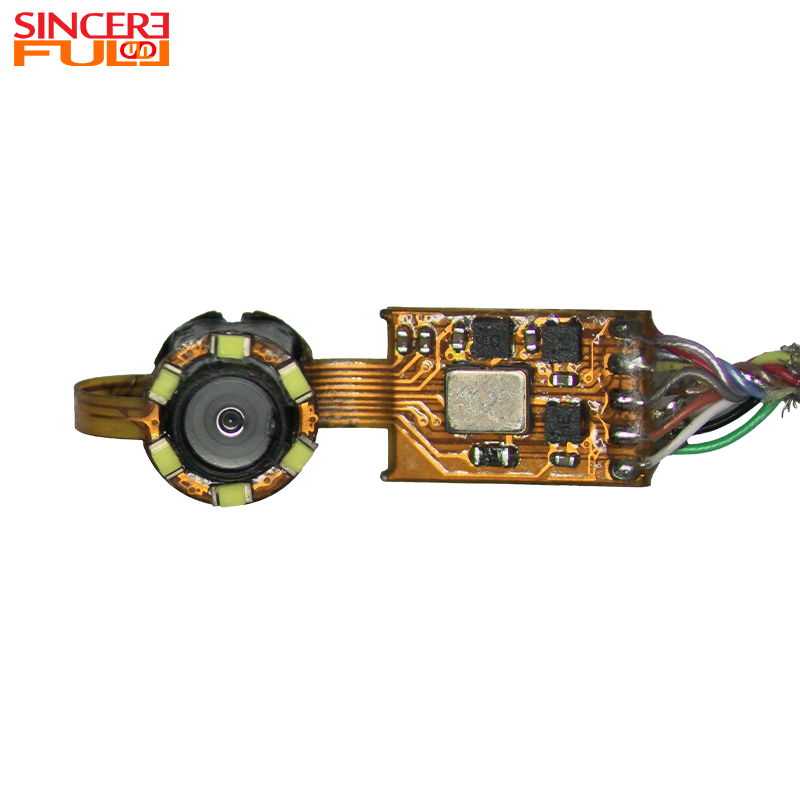

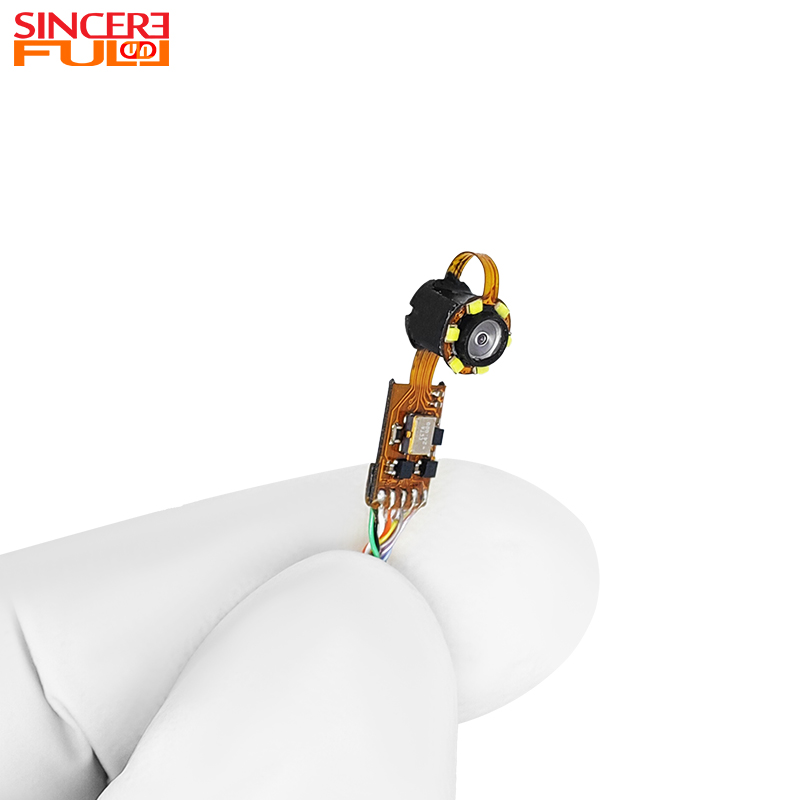

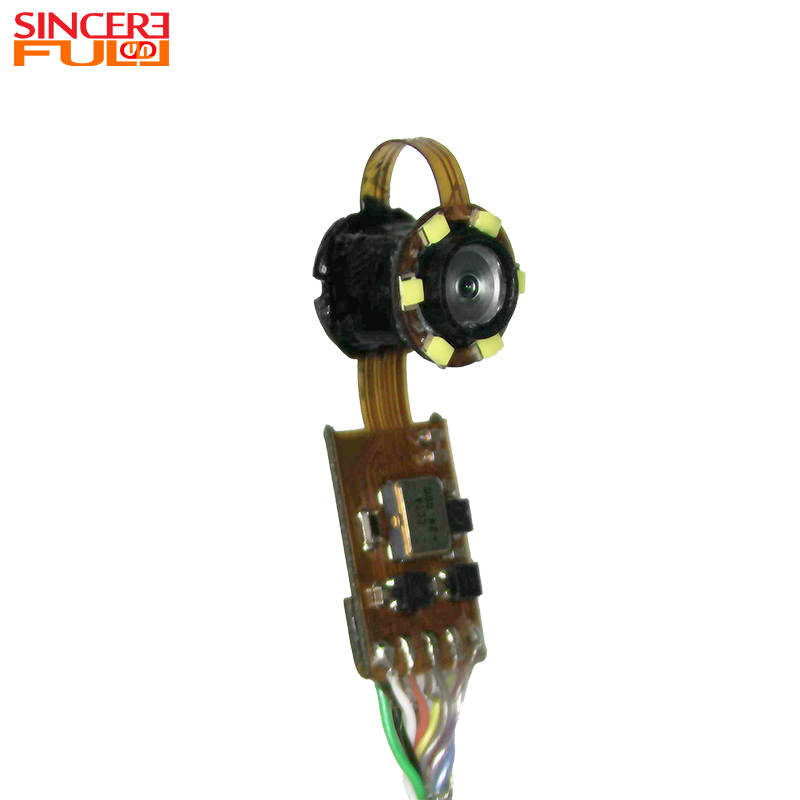

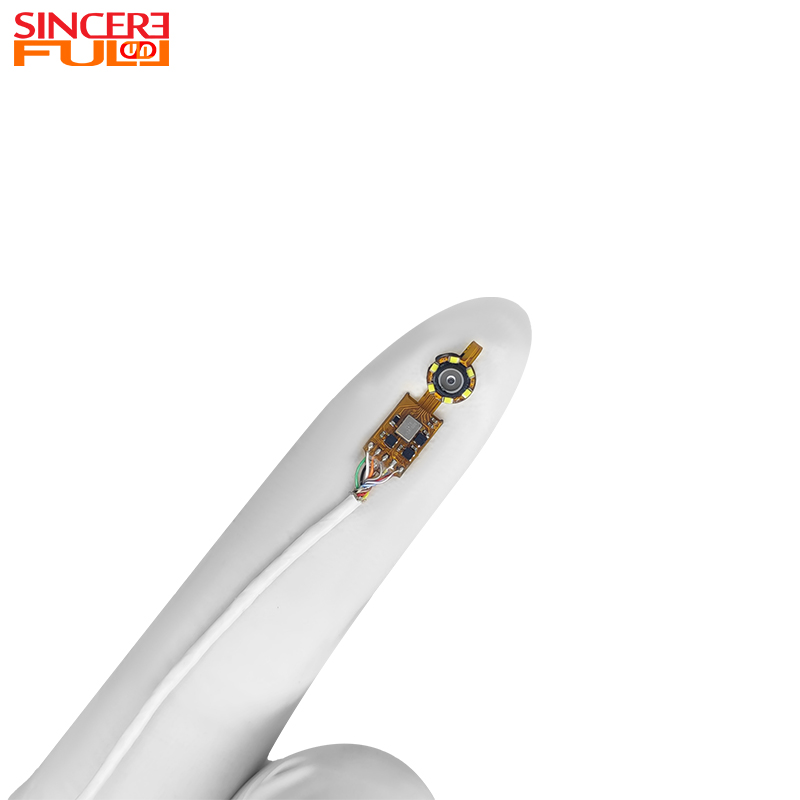

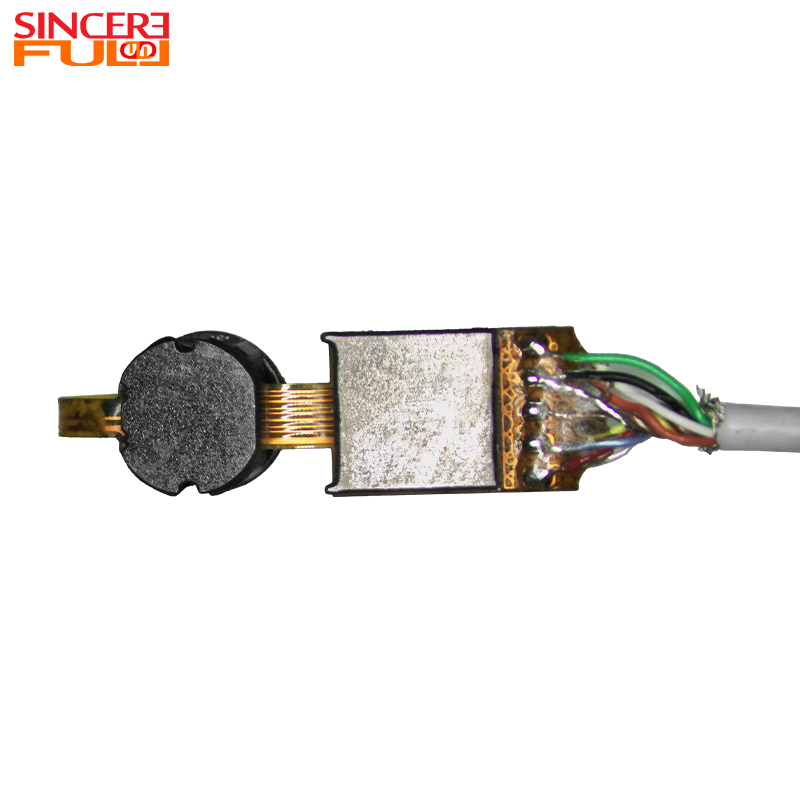

This endoscope is equipped with the OV2740 high-performance sensor and a revolutionary 1.4μm large pixel design. This 2-megapixel high-definition module supports full high-definition output of 1920×1080 and adopts an innovative MJPEG/YUV2 dual output format architecture, ensurin g image quality while achieving efficient compression and transmission. Equipped with a 6 high-brightness LED supplementary lighting system, the module can still present clear images with rich details even in extremely low light conditions. |  |
1.High Definition Picture Quality: Offers outstanding image quality and lighting effects.
2.Wide Field of View: 140° field of view.
3.Multiple Interface Methods: Supports TYPE-C or 5Pin 1.0
1.Industrial field: For internal inspection and maintenance of automotive manufacturing, AEROSPACE, power equipment.
2.In the medical field: It is widely used in video gastroscopy.
3.Security monitoring: It features low power consumption and high resolution, and supports multiple image processing algorithms.
Product Name | Small USB Endoscope Module |
Lens Size | 1/6inch |
DSP | USB |
Sensor | OV2740 |
Focusing Range | 10-30mm |

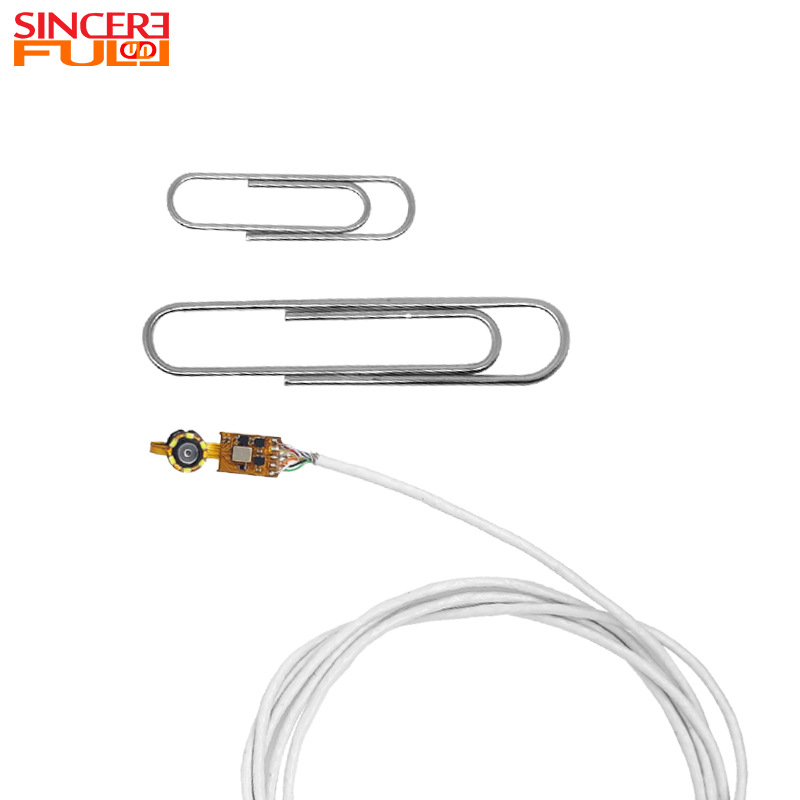

Diameter | 5mm |
F Number | 4.0 |
LED: | 6pcs |
Resolution | 60fps |
FOV(D) | 140° |
1.What interface types are there for modules?
Common interfaces include USB3.0, HDMI, SDI, etc. In industrial scenarios, PoE power supply interfaces may be used, while medical devices mostly integrate dedicated medical imaging interfaces.
2.What is the significance of the depth of field range of the module?
The large depth of field can clearly present both near and far objects simultaneously, reducing the need for frequent focusing and is suitable for endoscopic surgery. Shallow depth of field is used to highlight specific planar details, such as epidermal examination.
3.What are the common resolution specifications for endoscope camera modules?
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical-grade modules usually require 1080p or higher to ensure diagnostic accuracy, while industrial modules may choose lower resolutions as needed to reduce costs. Ultra-high resolution modules (such as 4K) are mostly used in precision surgeries or scientific research fields.
