How to Select 1080P OV2740 High-Definition Camera Modules for Professional Endoscopy Applications

How to Select 1080P OV2740 High-Definition Camera Modules for Professional Endoscopy Applications

In specialized fields such as medical endoscopy and industrial inspection, the choice of camera modules directly impacts diagnostic accuracy and inspection effectiveness. This article provides a systematic selection guide based on professional specifications to help you identify the most suitable high-performance camera modules for professional applications.

I. Core Performance Metrics: Beyond Resolution

1. Sensor Selection: Balancing Light Sensitivity and Size

Sensor Size: For confined-space applications like endoscopes, a 1/6-inch sensor strikes an optimal balance between compactness and performance. Larger individual pixels (1.4μm × 1.4μm) deliver enhanced light sensitivity.

Signal-to-Noise Ratio (SNR): Opt for ≥38dB SNR to ensure clean, low-noise images—critical in low-light conditions.

Dynamic Range: ≥73dB dynamic range preserves both highlight and shadow details, preventing overexposure or underexposure.

2. Frame Rate and Smoothness: Key to Real-Time Observation

Medical Observation Requirements: Modules supporting 60fps@1080P are recommended to ensure motion-based tissue observation without motion blur or frame skipping.

Encoding Format: MJPEG encoding achieves high frame rate transmission while maintaining image quality. YUV2 format provides uncompressed raw data, suitable for post-analysis processing.

II. Optical System: Details Determine Success

1. Lens Characteristics

Macro Capability: Professional endoscopes require exceptional close-focus performance, ensuring clear images within 10-50mm distances.

Distortion Control: Select lenses with distortion <2% to prevent edge shape distortion, guaranteeing measurement and observation accuracy.

Stray Light Suppression: Effective stray light control prevents halos and ghosting in high-contrast scenes.

2. Color Reproduction and Uniformity

Color Accuracy: Select modules with ΔE ≤ 25% color reproduction to ensure true tissue color representation.

Brightness Uniformity: ≥60% brightness uniformity guarantees consistent illumination from center to edges, eliminating dark corners.

III. Electronics and Interface Design: Ensuring Stability

1. Power Supply and Power Consumption

Wide Voltage Support: 5V power supply compatible with most medical and industrial equipment power systems.

Power Consumption Control: Operating current of 120-140mA supports extended continuous use while preventing overheating.

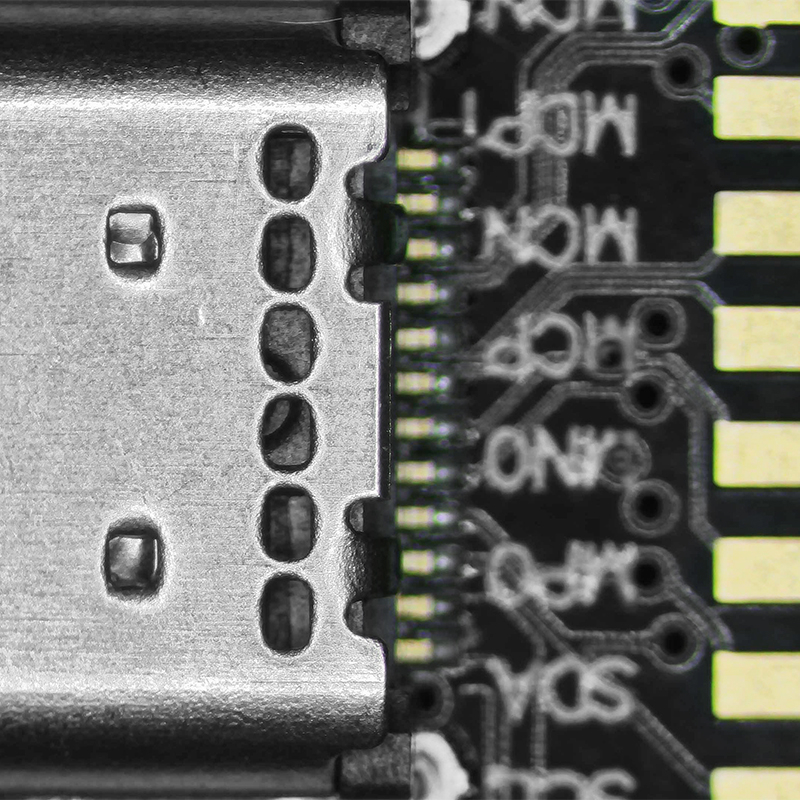

2. Interface Standards

USB Protocol Support: USB 2.0 High Speed provides sufficient bandwidth for 1080P@60fps video streaming.

Plug-and-Play: UVC protocol support ensures cross-platform compatibility without requiring dedicated drivers.

OTG Functionality: Supports direct connection to mobile devices for enhanced flexibility.

3. Image Processing Capabilities

Triple Auto Control: Auto Exposure Control (AEC), Auto White Balance (AWB), and Auto Gain Control (AGC) ensure optimized images across diverse environments.

Adjustable Parameters: Manual adjustment of brightness, contrast, saturation, gamma values, and more accommodates specialized application requirements.

IV. Mechanical & Reliability: Fundamental Requirements for Professional Applications

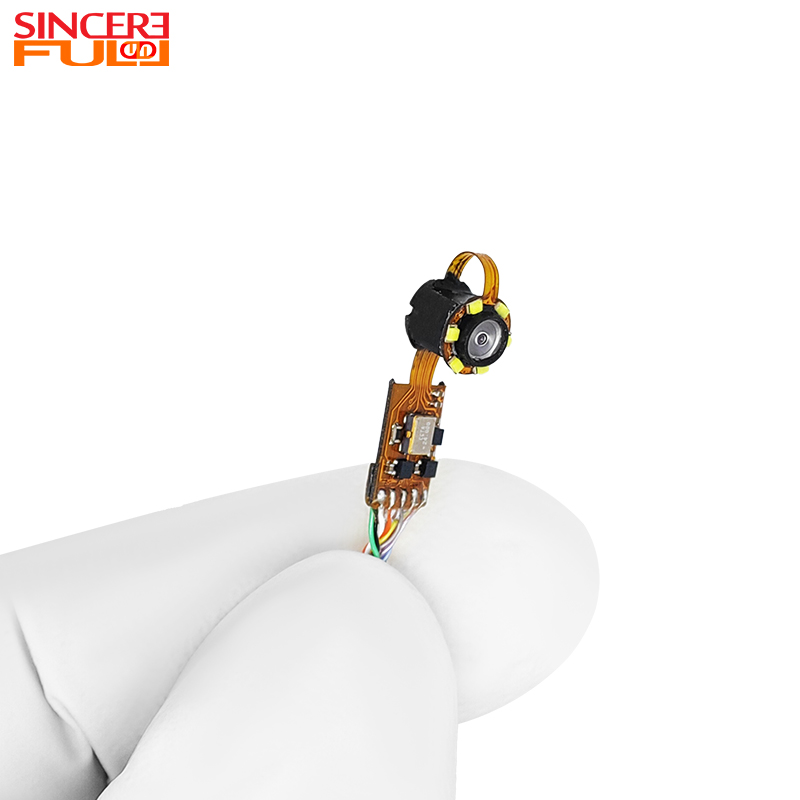

1. Structural Dimensions

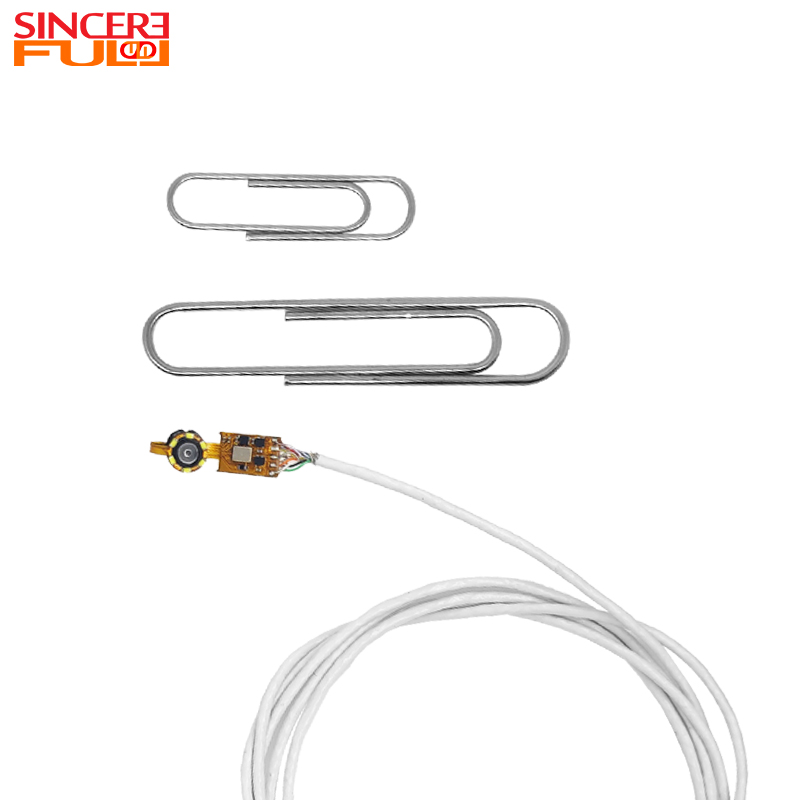

Ultra-thin design: Module thickness of only 3.5mm, suitable for installation in confined spaces.

Precise tolerances: Critical dimensional tolerances controlled within ±0.1mm to ensure assembly consistency.

2. Environmental Adaptability

Wide temperature operation: Select modules supporting 0-50°C operating temperature range to accommodate diverse environments.

ESD Protection: Incorporates electrostatic discharge safeguards to prevent damage to sensitive components.

3. Reliability Validation

Mechanical Strength: Passes 120cm drop tests and vibration tests to ensure durability during transport and operation.

Environmental Testing: Validates environmental adaptability through high/low-temperature storage and thermal shock tests.

Connection Reliability: Connector insertion/removal tests ensure long-term contact stability.

V. Special Considerations for Professional Applications

1. Medical Applications

Biocompatibility: Ensures housing materials meet medical-grade requirements.

Sterilization Compatibility: Confirms module tolerance for common sterilization methods.

Real-Time Requirements: 60fps high frame rate meets dynamic observation needs.

2. Industrial Inspection

Detail Resolution: High-pixel count paired with premium lenses ensures detection of minute defects.

Consistency Assurance: Rigorous factory testing guarantees batch-to-batch consistency.

Long-Term Stability: Validated lifespan through accelerated aging tests.

3. Integration Convenience

Open Interfaces: Provides comprehensive SDK and development documentation.

Standardized Output: Standard video stream formats facilitate integration into existing systems.

Flexible Power Supply: Supports USB bus power, simplifying system design.

VI. Selection Checklist

When selecting professional camera modules, evaluate based on the following checklist:

Core Performance:

Sensor Size ≥ 1/6 inch

Pixel Size ≥ 1.4μm

Signal-to-Noise Ratio ≥ 38dB

Dynamic Range ≥ 73dB

Frame Rate ≥ 60fps @1080P

Optical Quality:

Distortion < 2%

Color Rendering ΔE ≤ 25%

Brightness Uniformity ≥ 60%

Good stray light control

Reliability and Compatibility:

Passes comprehensive reliability testing

Supports UVC driverless protocol

Operating temperature range meets application environment

ESD Protection ≥ 2KV

Application Adaptability:

Dimensions fit installation space

Interface type matches system requirements

Power consumption within system budget

Technical support and SDK provided

VII. Summary Recommendations

When selecting professional-grade camera modules, focus should extend beyond resolution specifications to a holistic system perspective:

Define application scenarios: Medical diagnostics, industrial measurement, and scientific observation each demand distinct capabilities

Balance performance metrics: Optimize resolution, frame rate, and low-light performance for optimal trade-offs

Prioritize reliability: Professional environments often involve harsh conditions, making long-term stability critical

Consider integration costs: Factor in comprehensive expenses including development time, system adaptation, and maintenance support

Recommend selecting mature module products that have undergone rigorous testing, provide complete technical documentation, and demonstrate successful application cases. This minimizes project risks and ensures the reliability and professionalism of the final application.

Expert Tip: For critical applications, obtain samples during the selection phase for real-world scenario testing. Verify performance in actual usage environments, particularly image quality under low-light conditions and stability during prolonged operation.
