SF-SJN345 D75
SINCEREFIRST

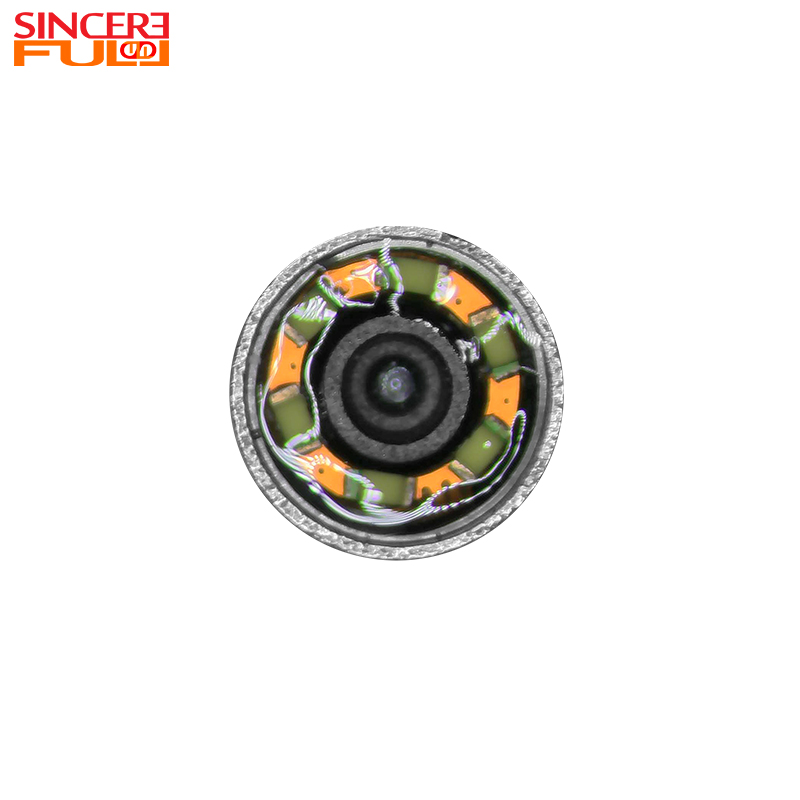

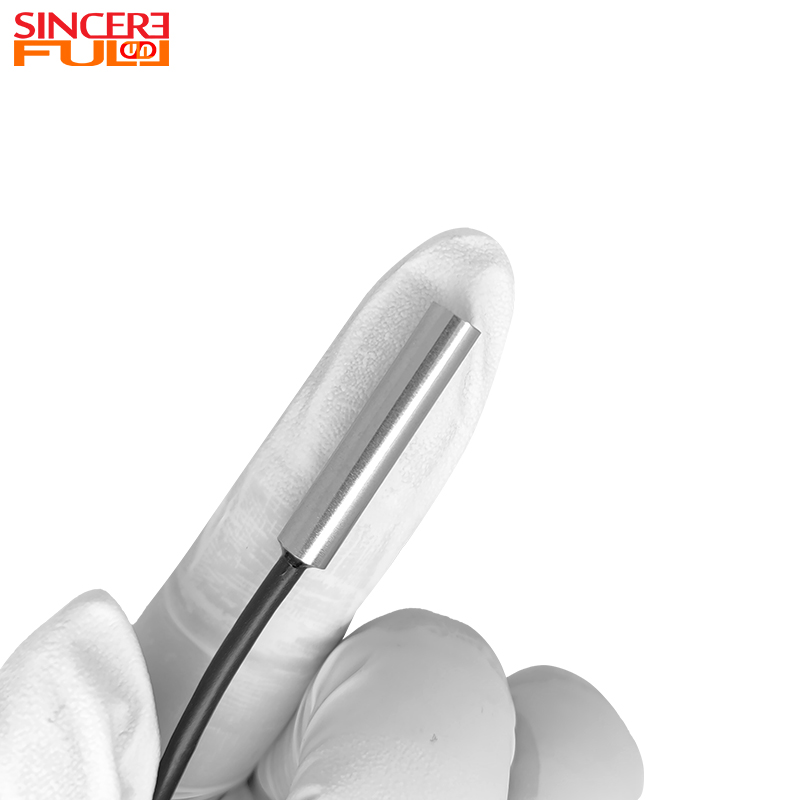

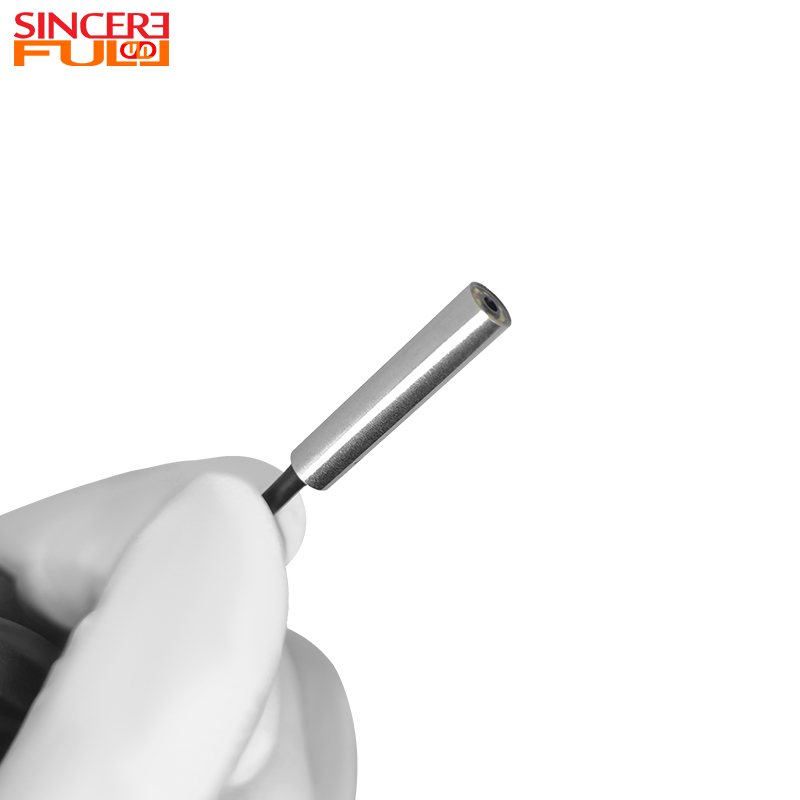

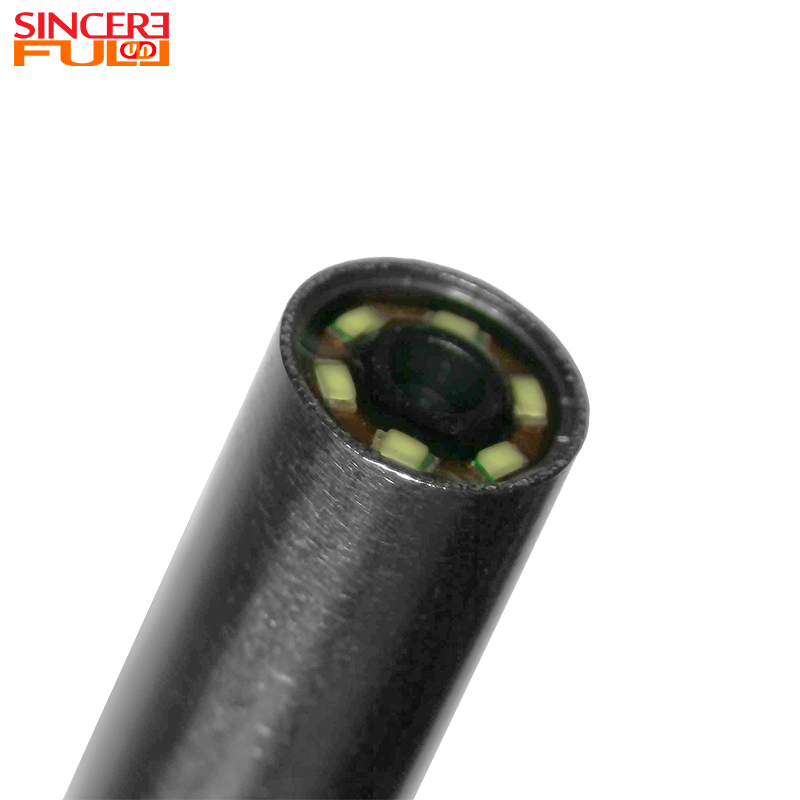

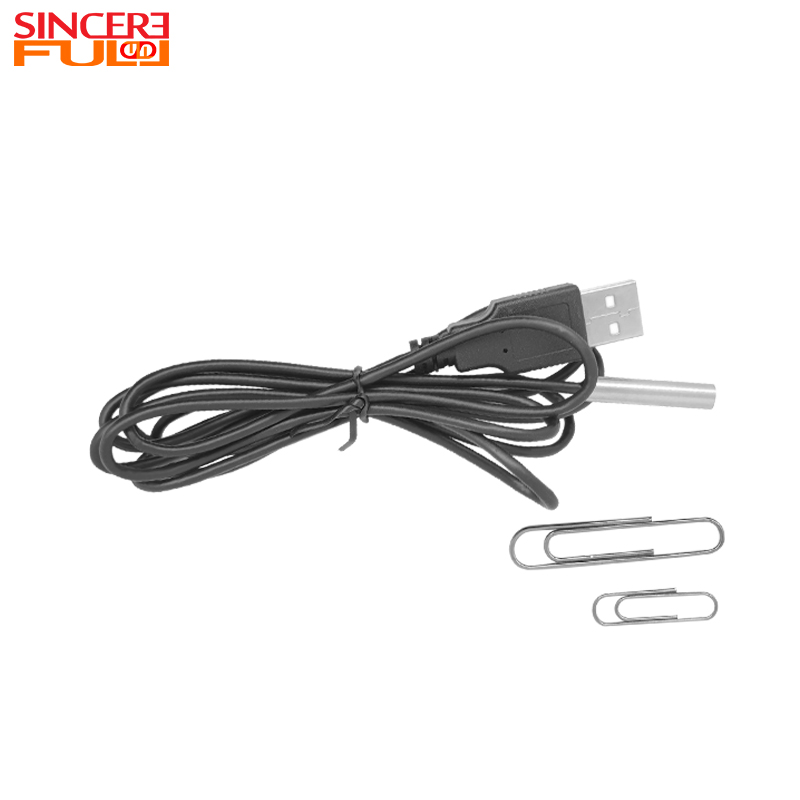

This is a performance endoscope built with the OV9734 sensor, equipped with a 1.08mm ultra-short focal length lens. The F4.0 large aperture ensures excellent low-light imaging performance, with a distortion rate of less than 10%. The wide focusing range of 10 to 100mm meets the needs of different depth of field. The USB interface enables plug-and-play. Its 1.4μm large pixel design, combined with an intelligent noise reduction algorithm, can still output high-definition image quality under complex light conditions in the cavity, providing reliable visual support for precise diagnosis and treatment. |  |
1.BF20A6 Sensor: Optimizes image processing capabilities and outputs stable image quality.

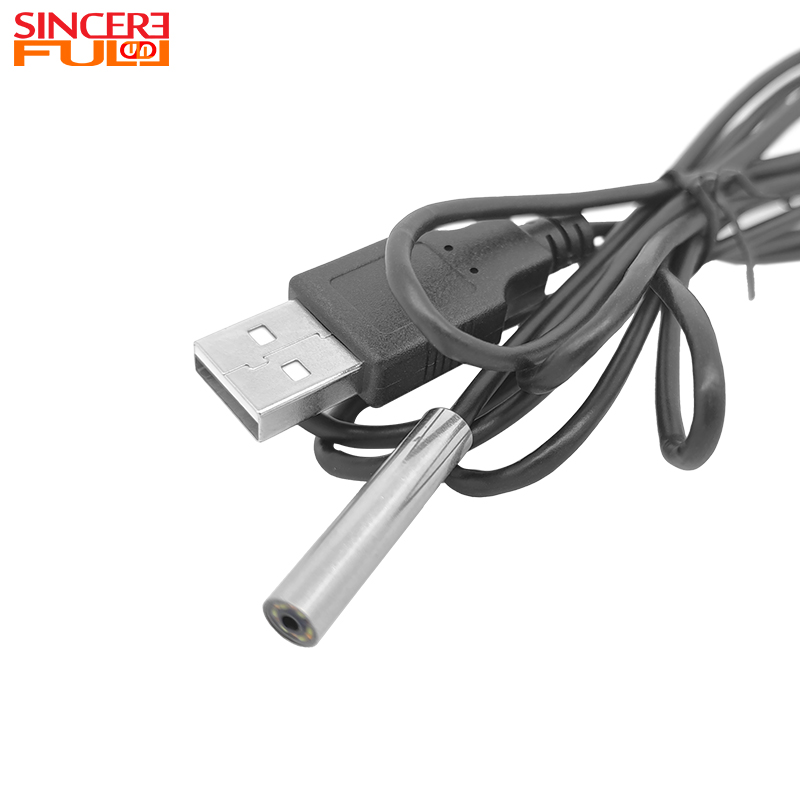

2.USB 5 PIN Interface: Simplifies connection and supports fast power supply and data transmission.
3.Fixed Focal Length Design: No need for focusing structure, avoiding operational errors, suitable for repetitive detection scenarios.
1.Medical endoscopy: It is used in minimally invasive medical scenarios such as ear, nose and throat examinations and dental surgeries.
2.Industrial inspection: Defect detection and equipment maintenance in narrow Spaces such as pipelines and mechanical interiors.
3.Scientific research observation: Real-time monitoring and recording of laboratory samples or microstructures.
Product Name | Performance USB Endoscope Camera Module |
F.NO | 2.8 |
DSP | USB |
Sensor | BF20A6 |
Focusing Range | 10-30mm |
Diameter | 7.5mm |
Connector | USB 5PIN |
LED: | 6pcs |
Resolution | 30fps |
FOV(D) | 72° |
1.Why does otorhinolaryngology need ultra-fine diameter modules?
When the space of the ear canal/nasal cavity is narrow, a module with a diameter of ≤3mm can reduce the patient's discomfort. At the same time, it is necessary to maintain high resolution (such as ≥300 line pairs /mm) to identify minor lesions.
2.What could be the possible reasons for noise in an image?
It might be due to sensor overheating, signal transmission interference, or excessively high ISO in low light conditions. It is necessary to check the heat dissipation design, cable shielding, or enable the noise reduction mode.
3.How does the field of view (FOV) of a module affect its usage effect?
The field of view determines the imaging range. A wide Angle is suitable for observing a large area, but there may be edge distortion. A narrow Angle provides a more focused picture. The selection should be based on the application scenario. For instance, in laparoscopic surgery, 70°-90° is commonly used to balance the field of vision and details.
