GC1009 Miniature Endoscope Bare Camera Module Selection Guide

GC1009 Miniature Endoscope Bare Camera Module Selection Guide

I. Define Core Application Scenarios and Performance Boundaries

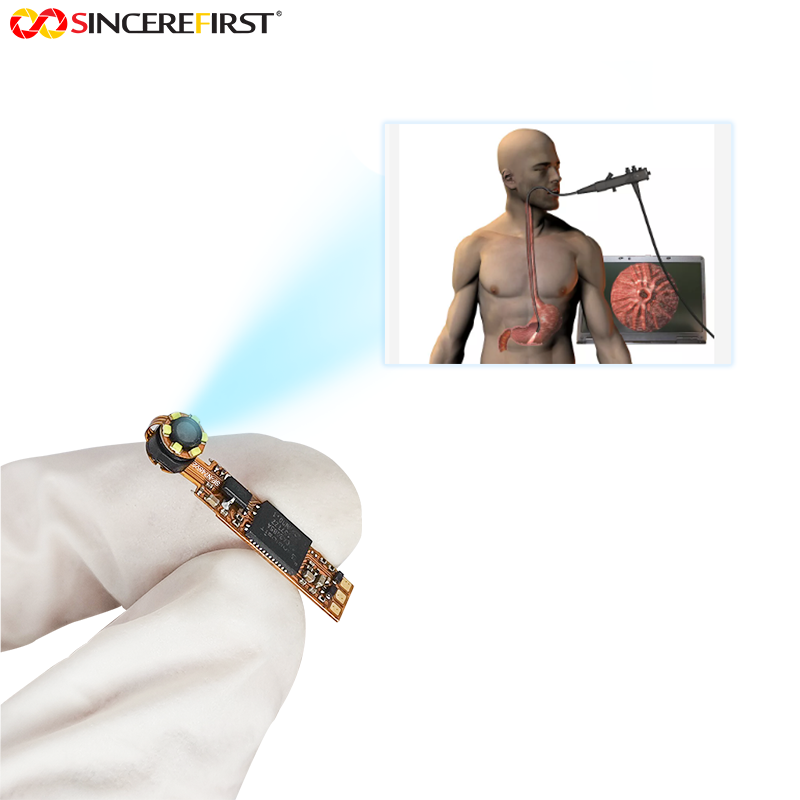

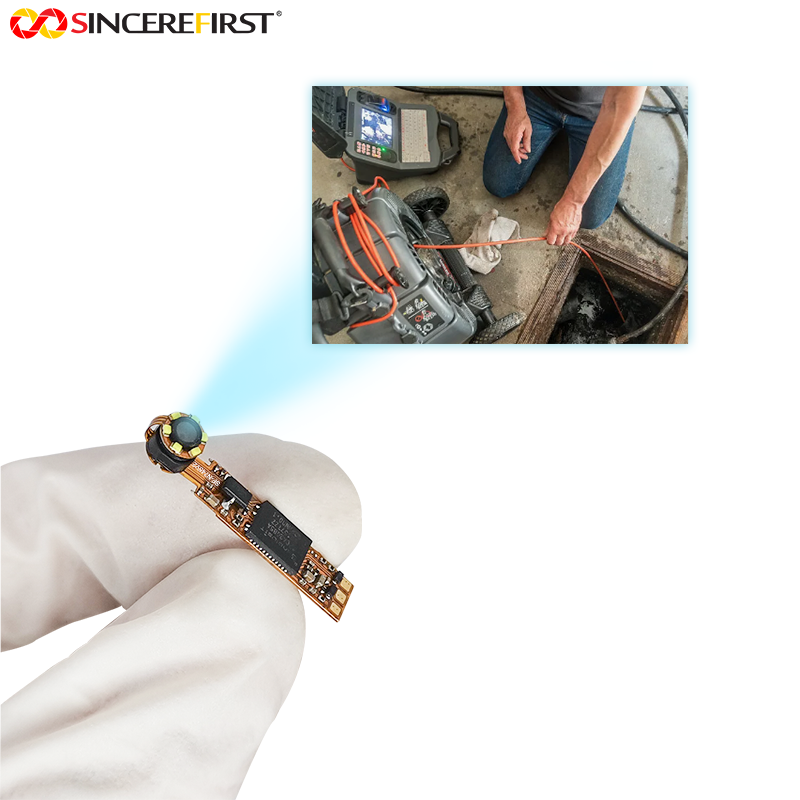

The primary step in selection is precisely matching application scenarios with module performance limits. If your equipment requires entry into extremely narrow passages less than 5mm in diameter (e.g., precision mold cavities, slender industrial pipelines, or micro-medical device operating channels), this module's 4.4mm diameter and 18.5mm length offer significant spatial advantages. Its 720P resolution and 72° field of view provide clear observation and sufficient coverage for most inspection scenarios. However, for high-precision applications requiring sub-millimeter defect quantification or ultra-wide panoramic scanning, evaluate whether its resolution and field of view meet measurement-grade requirements based on actual inspection standards.

II. Assess Imaging Stability and Environmental Adaptability

Imaging reliability directly determines device usability in complex environments. The module integrates six dimmable LEDs to effectively handle pitch-black or low-light conditions. However, for applications involving extreme temperature fluctuations (e.g., outdoor equipment maintenance or high-temperature pipelines), mechanical vibration, or corrosive media, prioritize verification of its operating temperature range (typically -20°C to 70°C), vibration-resistant structural design, and the sealing protection rating of the lens and light source components. Under extreme conditions, additional protective enclosures, shock-absorbing structures, or active temperature control devices are typically required to ensure long-term stable operation.

III. Verify System Integration and Interface Compatibility Solutions

Interface and integration complexity directly impact development cycles and maintenance costs. This module employs a USB UVC driverless protocol, compatible with Windows, Linux, Android, and macOS systems, significantly reducing software adaptation challenges. During selection, test video stream latency, frame rate stability, and power consumption on the actual host platform to ensure compliance with requirements. Note: As a bare module, it excludes peripheral components like cables, waterproof enclosures, and mounting structures. Users must independently design power supply stabilization circuits, signal extension solutions (custom tension-resistant shielded cables required for long-distance transmission), and mechanical fixation/sealing solutions. This imposes clear demands on the integrator's hardware design capabilities.

V. Planning Compliance Certification and Market Access Pathways

Product compliance is the decisive factor for entering target markets. While the module itself complies with foundational environmental directives like RoHS, end products used in medical diagnostics (e.g., endoscopy equipment) or specialized industries (e.g., explosion-proof environments) require entirely new system-level certifications. Medical applications necessitate comprehensive biocompatibility testing, sterilization validation, electrical safety certification, and clinical evaluation. Industrial explosion-proof environments require corresponding protection rating certifications. It is recommended to confirm with the module supplier early in the selection process whether they can provide material declarations, traceability documentation, and critical test reports. These materials directly impact the certification timeline and legal risks for the end product.
