In the field of medical endoscopy, the performance and characteristics of camera modules directly affect the diagnostic and therapeutic effects and clinical safety. This article takes the BF2013 high-definition waterproof endoscopic camera module as an example, compares the advantages and disadvantages of disposable endoscopes and ordinary endoscope modules, and analyzes their applicable medical scenarios based on specific product parameters.
Comparison of Advantages and Disadvantages between Disposable Endoscopes and Ordinary Endoscope Modules
Advantages of Ordinary Endoscope Modules

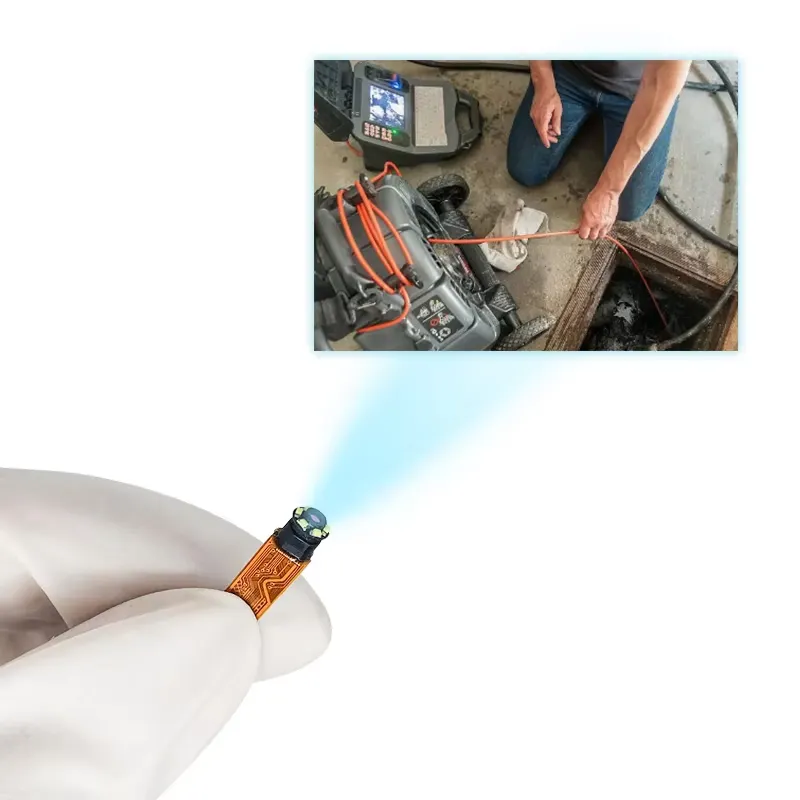

Ordinary endoscope modules have significant advantages in performance stability and adaptation flexibility. The BF2013 module is equipped with a 0.3MP BF2013 CMOS image sensor, combined with VGA resolution and a 30FPS frame rate, which can output stable and smooth color dynamic images in real-time, meeting the clinical needs for detailed observation of lesion details. Its 45° field of view accurately covers the inspection area, avoiding missed inspections due to a too narrow field of view and reducing interference from wide-angle distortion on diagnostic judgments; the 15mm focal length combined with manual focusing function can flexibly adapt to the observation of cavities at different depths, ensuring that key lesions are clearly presented. In terms of structural design, the module adopts an integrated design, and the 4.5mm slender lens diameter can easily enter narrow cavities, reducing patient discomfort during examination; the lens integrates 6 LED beads, effectively solving the problem of insufficient light in the cavity and ensuring imaging quality. In addition, the bare module produced through SMT process and AA process has both structural stability and assembly flexibility, which can be conveniently adapted to various endoscopic equipment, providing a cost-effective imaging solution for medical institutions.
Relative Advantages of Disposable Endoscope Modules
The core advantages of disposable endoscope modules lie in safety and convenience. Due to the disposable design, it can completely avoid the risk of cross-infection, especially suitable for the diagnosis and treatment of infectious disease patients or immunocompromised people. At the same time, disposable products do not require complex disinfection procedures, which can save the disinfection cost and time of medical institutions and improve the efficiency of diagnosis and treatment.
Relative Disadvantages of Ordinary Endoscope Modules
Ordinary endoscope modules need to be reused, so they face strict requirements for disinfection and sterilization. If disinfection is not thorough, there may be a risk of cross-infection. In addition, long-term repeated use may lead to performance loss of the module, affecting imaging stability, requiring regular maintenance and calibration, which increases the cost of equipment management.
Relative Disadvantages of Disposable Endoscope Modules
Limited by cost control, disposable endoscope modules are often difficult to match ordinary modules in imaging performance. Most disposable modules have lower parameters such as pixel, frame rate, and field of view, which may not meet the needs of fine lesion observation. At the same time, the structural design of disposable products is relatively fixed, with poor adaptability, making it difficult to flexibly match different types of endoscopic equipment.
Analysis of Specific Medical Application Scenarios for BF2013 Endoscope Camera Bare Module
Combining the parameter characteristics of the BF2013 module and the advantages of ordinary endoscope modules, the product is suitable for the following specific medical scenarios:
Routine Digestive Tract Examination
In routine examinations of the esophagus, stomach, intestines, and other digestive tracts, the performance of the BF2013 module can fully meet the needs. Its 4.5mm slender lens can smoothly pass through the digestive tract cavity, the 45° field of view can cover the inspection area of the inner wall of the digestive tract, and the 0.3MP pixel and 30FPS frame rate can clearly present mucosal lesions, ulcers, or polyps. The module can be adapted to gastroenteroscope equipment, helping doctors complete routine screening and diagnosis with stable imaging quality. At the same time, its reusable feature can reduce long-term diagnosis and treatment costs, making it suitable for the daily digestive tract examination business of medical institutions.
Routine Diagnosis and Treatment of Otolaryngology
The otolaryngology part has narrow cavities and complex structures, which have high requirements for the flexibility and imaging clarity of endoscopes. The slender lens and precise field of view of the BF2013 module can be adapted to laryngoscopes, otoscopes, and other equipment for examining routine diseases such as throat inflammation and ear canal foreign bodies. The LED beads integrated in the lens can provide sufficient illumination for areas with insufficient light such as the ear canal and throat, and the 30FPS frame rate can capture dynamic images in real-time, helping doctors accurately judge the condition, which is suitable for daily diagnosis and treatment scenarios in otolaryngology departments.
Minimally Invasive Surgical Auxiliary Operations
In minimally invasive surgical operations such as laparoscopy and arthroscopy, the stable imaging and adaptability of the BF2013 module play an important role. Its bare module design can be flexibly assembled into various minimally invasive surgical endoscopic equipment. The 15mm focal length and manual focusing function can adjust the observation depth according to surgical needs. The 45° field of view provides a clear intra-cavity vision for the surgeon, and real-time dynamic images ensure the accuracy of surgical operations. The structural stability of the module can withstand slight vibrations during the operation, ensuring reliable imaging throughout the operation, making it suitable for routine minimally invasive surgical auxiliary scenarios.
Routine Gynecological Examination
The BF2013 module can be adapted to colposcope equipment for routine gynecological examinations. The 4.5mm lens diameter can reduce patient discomfort during examination, and the 45° field of view can clearly present subtle lesions in the cervix and other parts. Stable imaging quality and sufficient LED illumination can help doctors accurately identify abnormal conditions such as cervical inflammation and erosion, meeting the needs of routine gynecological screening and diagnosis, and the reusable feature is suitable for medical institutions to carry out long-term gynecological examination business.
Examination of Hidden Oral Areas
In oral diagnosis and treatment, the module can assist oral endoscopes in examining hidden areas such as gums and adjacent tooth surfaces. Its slender lens can penetrate into narrow spaces in the oral cavity, and the sufficient illumination provided by LED beads combined with clear imaging can help doctors detect problems such as dental caries and gum bleeding, providing support for the early diagnosis of oral diseases.
