Choose 60fps when the device must show faster probe movement, tool motion, flowing material or changing surfaces with smoother visual feedback. Choose 30fps when the scene is mostly static or slow-moving and the project values higher resolution, lower bandwidth, longer exposure or simpler host processing. Frame rate should never be selected alone. It interacts with output resolution, video format, USB bandwidth, sensor exposure time, LED brightness, cable length and host decoding. A stable 30fps image with correct exposure can be more useful than a noisy 60fps image, while a 60fps camera can significantly improve navigation and motion observation when the complete system supports it.
Factor | 30fps Direction | 60fps Direction |
Motion appearance | Suitable for slow or stable scenes. | Smoother response for faster movement. |
Exposure time | More time may be available per frame. | Shorter exposure may require more light or gain. |
Bandwidth | Lower data demand at the same resolution and format. | Higher data demand; host and cable must be validated. |
Processing load | Easier for embedded hosts and recording systems. | More decoding, display and storage load. |
Application value | General observation, still capture, high-detail inspection. | Navigation, moving tools, fluid or dynamic mechanical inspection. |
At 60fps, each frame has less time to collect light. In a dark cavity, the camera may increase analog or digital gain, which can raise noise, or require stronger LED illumination, which can increase reflections and heat. Lens aperture, sensor sensitivity and final LED geometry therefore matter as much as the frame-rate number.
Higher resolution increases the number of pixels transmitted and processed per frame. A project may need to choose between very high resolution at 30fps and lower resolution at 60fps, depending on the sensor, interface and host. Video format also changes bandwidth. Compressed MJPEG can reduce USB transfer load but requires decoding, while uncompressed formats place different demands on bandwidth and memory.
· Static or slow close-range observation.
· Documenting surface condition or reading larger markings.
· Projects where higher still-image detail is more important than motion smoothness.
· Embedded hosts with limited bandwidth or processing capacity.
· Long cable systems where signal margin must be carefully controlled.
· Fast probe insertion or operator navigation.
· Moving tools, rotating components or fluid flow.
· Robotic or articulated devices requiring responsive visual feedback.
· Industrial inspection where motion blur could hide a transient defect.
· Applications where smoother video improves operator control.

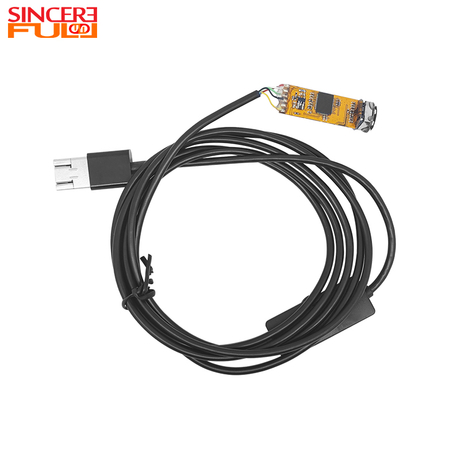

For compact high-frame-rate designs, the OH01A10 family includes 720P60 directions at 3.1 mm, 3.3 mm, 3.6 mm and 3.9 mm. For higher-resolution 60fps output, the OV2740-based families include 5.0 mm and 6.0 mm 1080P60 integrated, separated and long-cable configurations. For projects that value higher pixel count and autofocus over 60fps, the SF-SP12-D12.5 and SF-SP12-D14.5 provide 12MP output at 30fps. These product directions illustrate why frame rate should be chosen together with resolution and structure.
1. Confirm the required output resolution at the target frame rate.
2. Test under the minimum expected illumination.
3. Check motion blur, noise, LED reflections and temperature rise.
4. Validate the exact USB cable length, connector and video format.
5. Measure host CPU, decoder and display performance.
6. Confirm recording and storage can sustain the required stream.
7. Test the complete system for dropped frames during long operation.
Does a medical endoscope camera module always need 60fps?
No. Some device projects benefit from smoother motion, while others prioritize compact size, higher resolution, stable exposure or simpler processing. The required visualization task should determine the frame rate.
Will 60fps always reduce motion blur?
It can help, but motion blur is mainly controlled by exposure time. A 60fps stream can still blur if the exposure remains long. Illumination and sensor sensitivity must support the shorter exposure.
Can USB2.0 support 1080P60?
Some product architectures can support 1080P60 through suitable sensor, controller, format and host combinations. The exact output format, cable and host must be validated for the selected configuration.
Why does a 60fps camera drop frames on one computer but not another?
USB controller bandwidth, other connected devices, power, driver, decoding performance, application settings and cable quality can all affect the stream.
Is 30fps better for low-light imaging?
It can provide more exposure time per frame, but low-light performance also depends on sensor sensitivity, lens aperture, gain and illumination. Sample testing is still required.
Can frame rate be customized?
Output resolution, frame rate and format options can be evaluated according to the selected sensor, controller and host requirements. Not every combination is available on every module.
Send the target motion, resolution, lighting, cable length and host platform to SincereFull. We can help evaluate whether 30fps or 60fps provides the better system-level result.
Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
