Introduction
When shopping for an endoscope – for medical exams, industrial inspection, or plumbing – you’ll often face a choice between 1080p and 4K. Higher resolution sounds better, but is 4K always the right answer? It depends on your lighting, budget, and what you need to see. This article compares 1080P Camera and 4K camera modules for endoscopy, helping you decide. At Sincere, we manufacture cmos module camera solutions for both resolutions.
What Do 1080p and 4K Mean?
1080p (Full HD): 1920 × 1080 pixels (~2.1 megapixels). The professional standard for years.
4K (Ultra HD): 3840 × 2160 pixels (~8.3 megapixels). Four times the detail of 1080p.
Both are available in uvc endoscope camera and usb2.0 endoscope camera designs, with USB 2.0 or USB 3.0 options.
Key Differences
Factor | 1080p Endoscope | 4K Endoscope |
|---|---|---|
Detail | Good for most defects | Excellent, reveals microscopic features |
Low‑light performance | Better (larger pixels) | Worse (smaller pixels, unless sensor is larger) |
Frame rate | 30–60 fps typical | Usually 30 fps at 4K |
Bandwidth | USB 2.0 works | USB 3.0 required |
Storage | Moderate | 4× more space |
Cost | Lower | Higher |
Best for | General inspection, medical | Surgical precision, high‑end R&D |
Detail and Resolution
4K shows tiny cracks, corrosion pits, or subtle tissue variations that 1080p might miss. For turbine blade inspection or micro‑surgery, 4K is valuable. But for most tasks – checking pipe blockages, general engine inspection, routine endoscopy – 1080p provides plenty of detail. A 1080P Camera in a usb2.0 endoscope camera can clearly show a 0.5mm scratch.
Low‑Light Performance
This is where 1080p often wins. For a given sensor size (e.g., 1/3″), 4K packs four times the pixels into the same area, making each pixel much smaller. Smaller pixels capture less light, causing more noise in dim conditions. Endoscopes often work in dark cavities with limited illumination. A cmos module camera with 1080p and larger pixels produces a cleaner, brighter image than a 4K sensor of the same size. If you need 4K, choose a larger sensor (e.g., 1/1.8″) – but that increases the camera head diameter.
Frame Rate
For moving scenes – scanning a pipe or following a moving object – frame rate matters. Many usb camera endoscope devices run 30 fps at 1080p over USB 2.0. Some can do 60 fps at 1080p with USB 3.0. For 4K, 30 fps is typical; higher frame rates need very high bandwidth. If smooth video is critical, a 1080p camera at 60 fps may be better than a 4K camera at 30 fps.
Bandwidth and USB
Usb2.0 endoscope camera: Handles 1080p @ 30 fps easily. Plug‑and‑play on any computer.
4K camera modules: Need USB 3.0 (5 Gbps) or faster. Your host device must have USB 3.0 ports.
Storage
4K video uses about four times the storage of 1080p for the same recording time. For long procedures or daily inspections, 1080p is much more economical.
Cost
A 4K camera module costs more – the sensor, high‑resolution lens, and faster electronics all add expense. A camera mini usb endoscope module in 1080p is very affordable, great for DIY, home inspection, and many professional tasks.
Which Should You Choose?
Use Case | Recommendation |
|---|---|
Medical general endoscopy | 1080p (good detail, better low light) |
Surgical microscopy | 4K (maximum detail) |
Industrial crack detection | 1080p or 4K (4K for very small defects) |
Plumbing inspection | 1080p (low light, cost, wide view) |
Automotive engine inspection | 1080p (adequate, good frame rate) |
Research & development | 4K (document fine details) |
Consumer DIY borescope | 1080p (affordable, USB 2.0) |

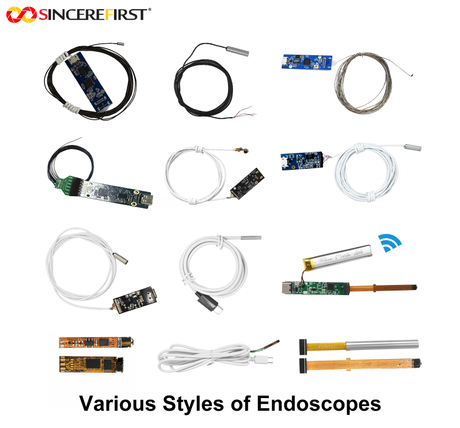

Sincere’s Endoscope Modules
At Sincere, we offer both 1080p and 4K endoscope camera modules:
1080P Camera: UVC, USB 2.0/3.0, excellent low‑light (Sony IMX307, IMX290).
Uvc endoscope camera: Plug‑and‑play 1080p and 4K for medical and industrial use.
Usb2.0 endoscope camera: Cost‑effective 1080p models that work on any PC or Android.
4K camera modules: High‑resolution with USB 3.0 (Sony IMX415).
Usb camera endoscope: Complete with LED illumination and flexible cable.
Camera mini usb endoscope module: Ultra‑compact 1080p (3.9mm–5.5mm diameter).
Cmos module camera: All modules use high‑quality CMOS sensors.
Summary
The choice between 1080p and 4K depends on your need for detail versus practical constraints. 1080P Camera modules offer:
Better low‑light performance
Lower cost
Smaller file sizes
USB 2.0 compatibility
Enough detail for most tasks
4K camera modules provide:
Four times the detail
Ability to see microscopic defects
Future‑proofing for high‑end applications
For most endoscope users – medical diagnostics, industrial borescopes, plumbing – 1080p is the sweet spot. Only choose 4K if you truly need to resolve very small features and have the lighting, bandwidth, and storage to support it.
Contact Sincere to discuss whether a uvc endoscope camera in 1080p or a 4K camera module fits your project.
