What is dynamic range in an endoscope camera

Introduction
Ever used an endoscope where bright areas turned completely white and dark areas were pitch black? That’s a dynamic range problem. Dynamic range is the camera’s ability to capture detail in both the brightest and darkest parts of a scene at the same time. It’s a key image quality spec, yet often overlooked. At Sincere, we’re an experienced endoscope camera module manufacturer with over 30 years in the industry. This article explains dynamic range, why it matters for endoscopy, and how to choose the best camera module for your application.

What Is Dynamic Range?
Dynamic range is the ratio between the maximum and minimum light intensity a sensor can capture without losing detail. It’s measured in decibels (dB) or f‑stops. Higher dynamic range means the camera sees details in both bright highlights and dark shadows.

Example: Inspecting a shiny metal pipe. A low‑dynamic‑range sensor turns the bright reflection pure white and the dark crevice pure black. A high‑dynamic‑range sensor keeps texture in both.

Why It Matters for Endoscope Cameras
Endoscope cameras work in tricky lighting:

• Medical endoscopy: A small LED lights the area of interest, leaving surrounding tissue in shadow. Good dynamic range helps surgeons see the boundary between illuminated and shaded tissue, improving diagnosis.

• Industrial inspection: Pipes, engines, and turbines have reflective metal and deep shadows. A usb endoscope camera module with wide dynamic range reveals cracks and corrosion in both glare and shadow.

• Plumbing: Water creates bright reflections while pipe walls stay dark. Good dynamic range shows the whole pipe condition.

How Dynamic Range Is Measured
Typical values for cmos module camera sensors:

• 60‑70 dB: Standard consumer sensors. Fine for controlled lighting.

• 70‑80 dB: Good for many industrial and medical tasks.

• 80‑100 dB: Very good for high‑contrast scenes.

• 100‑120 dB+: Excellent, often using HDR techniques.

The human eye sees about 120 dB in one scene. Most standard cmos module camera sensors offer 60‑70 dB without HDR.

Dynamic Range vs. HDR
Dynamic range is a sensor property. HDR (High Dynamic Range) is a technique to extend it beyond a single exposure. Common methods:

• Multiple exposures: Combine short, medium, long exposures.

• Staggered HDR: Different sensor rows at different exposures.

• Dual‑gain sensors: Two gain circuits per pixel, capturing highlights and shadows simultaneously.

The best camera module for endoscopy may use a sensor with native wide dynamic range (80‑100 dB) or rely on HDR to reach 100‑120 dB.

What Affects Dynamic Range?

1. Sensor Technology
Cmos module camera sensors generally have better dynamic range than older CCDs. BSI (back‑illuminated) and stacked CMOS improve light capture, boosting dynamic range.

2. Pixel Size
Larger pixels hold more light before saturating. For a given sensor size, lower resolution often means larger pixels and better dynamic range. This is a big factor for a mini endoscope camera module where the sensor is tiny.

3. Bit Depth
Higher bit depth (10‑bit vs 12‑bit) gives more brightness gradations, improving effective dynamic range.

4. Lens Aperture
A larger aperture (smaller f‑number) lets in more light but can affect how the sensor handles highlights.

5. Illumination Control
Even with high dynamic range, overly bright or uneven light can cause clipping. Some endoscopes adjust LED brightness dynamically.

Dynamic Range by Form Factor

A professional usb endoscope camera module will list dynamic range in its datasheet.

How to Choose Based on Dynamic Range

1. Check your contrast: Inspecting reflective metals (high contrast) needs higher dynamic range than soft tissue.

2. Diameter limits: An ultra‑small mini endoscope camera module (under 2mm) has limited dynamic range. Accept the trade‑off.

3. Look for HDR: If you need both bright and dark detail, choose a module with HDR (staggered or dual‑gain).

4. Interface matters: Some usb endoscope camera module models offer HDR only over USB 3.0.

5. Test with real samples: Use a shiny metal object with dark crevices to evaluate.

Sincere as Your Endoscope Camera Module Manufacturer
At Sincere, we design and manufacture endoscope camera modules with optimized dynamic range for medical, industrial, and consumer use. As an experienced endoscope camera module manufacturer, we offer:

• Best camera module selection: We help you pick the right sensor (Sony IMX, OmniVision) based on your dynamic range needs.

• Dynamic range optimization: Matching sensors, lenses, and HDR processing to your lighting.

• Cmos module camera designs: Using advanced BSI and stacked CMOS for high sensitivity and wide dynamic range.

• Usb endoscope camera module with USB 3.0 for high‑bandwidth HDR video.

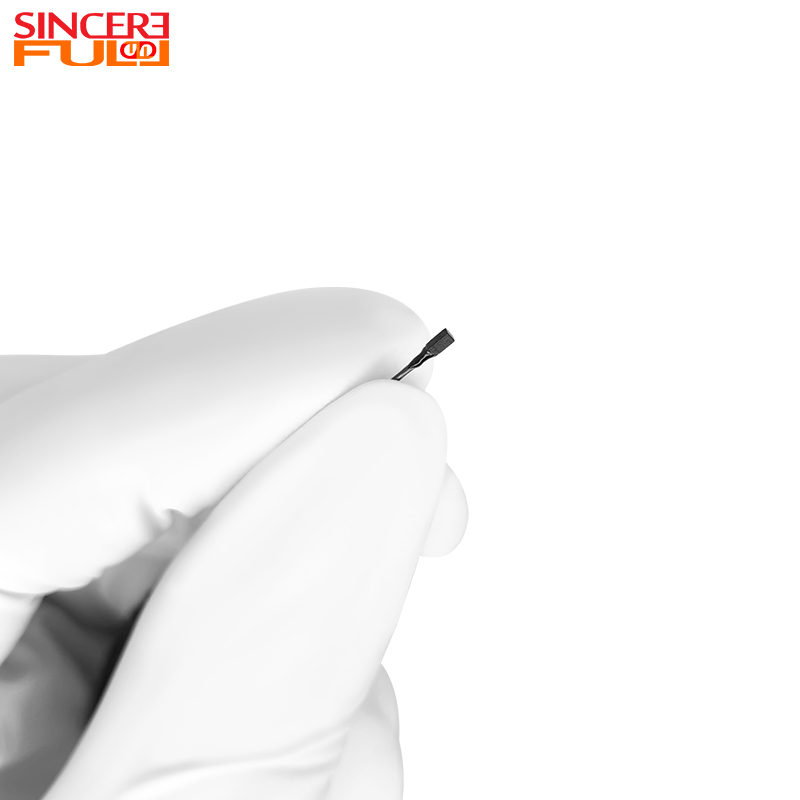

• Mini endoscope camera module down to 1.5mm diameter, with the best possible dynamic range for that size.

Our manufacturing includes Class 10/100 dust‑free workshops and Active Alignment (AA) for perfect focus.

The Future
Sensor technology keeps improving:

• Dual‑gain sensors becoming standard for native wide dynamic range.

• Event‑based sensors capture extreme contrast by detecting changes, not absolute brightness.

• AI‑assisted HDR combines exposures intelligently to reduce motion artifacts.

Summary
Dynamic range is the ability to capture detail in both bright and dark areas simultaneously. Measured in dB, higher is better. For most medical and industrial endoscopy, 80‑100 dB is recommended. Very small mini endoscope camera module designs may have lower dynamic range due to size limits.

When choosing the best camera module for endoscopy, consider your lighting, diameter, and whether HDR is needed. As a leading endoscope camera module manufacturer, Sincere provides cmos module camera solutions with optimized dynamic range for USB and mini formats.

Contact us to discuss your dynamic range requirements for your next endoscope project.
