Endoscopy has revolutionized modern medicine by enabling physicians to examine and diagnose internal organs without resorting to invasive surgical procedures. At the core of this groundbreaking technology is a vital component—the endoscopic camera. This miniature yet highly sophisticated imaging device captures real-time, high-resolution visuals from inside the body, offering doctors a clear and detailed view of tissues, organs, and abnormalities. The performance and quality of the endoscopic camera play a crucial role in determining the accuracy of diagnoses, the precision of minimally invasive surgeries, and the overall effectiveness of patient treatment and care.

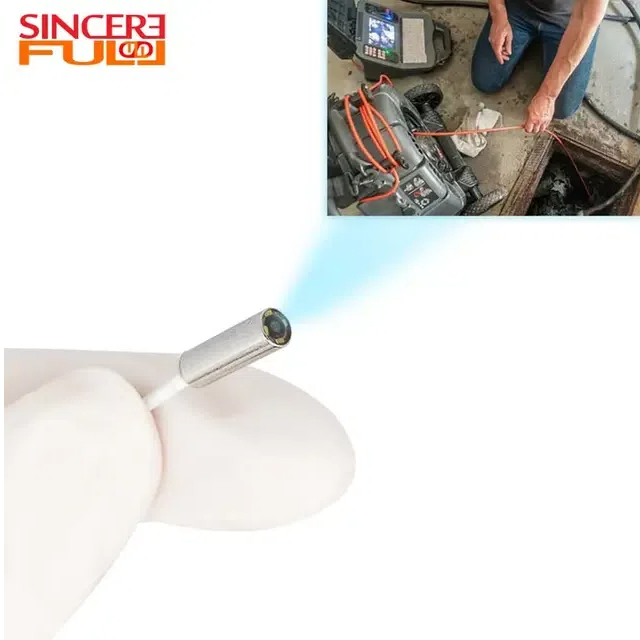

Endoscopic cameras are ultra-miniature imaging devices embedded at the tip of an endoscope, designed to capture high-resolution, real-time visuals from inside the human body. These cameras are vital for both diagnostic and surgical procedures, especially in tight, dark internal spaces.
Most endoscopic cameras use either CMOS (Complementary Metal-Oxide-Semiconductor) or CCD (Charge-Coupled Device) sensors.
While CCDs once dominated for their image quality and low noise, CMOS sensors are now preferred for their compact size, low power use, fast processing, and comparable image clarity.
For lighting, endoscopic cameras are paired with miniature LEDs or fiber-optic systems, ensuring clear visibility of tissues. Depending on the procedure, the camera module is built into flexible or rigid scopes, such as those used in gastrointestinal or laparoscopic applications.
CMOS Sensors:
CMOS sensors are widely used in modern endoscopic cameras. They offer several advantages including reduced power consumption, faster image processing, and greater integration flexibility with other electronic components. Their advancements have brought CMOS image quality on par with CCDs, making them the preferred choice in many devices.
CCD Sensors:
CCD sensors were historically favored for medical imaging due to their high sensitivity and excellent noise control. However, their relatively larger size and power requirements have led to a decline in usage compared to CMOS technologies.
Rigid Endoscopic Cameras:
These cameras are mounted on solid, inflexible scopes primarily used in procedures where precision and stability are paramount, such as arthroscopy or laparoscopy.
Flexible Endoscopic Cameras:
Integrated into flexible endoscopes, these cameras navigate through complex anatomical pathways such as the gastrointestinal tract. Their design requires miniaturization without sacrificing image quality.
Endoscopic cameras must be extremely small, often measuring just a few millimeters in diameter. This miniaturization challenges engineers to balance size, image resolution, illumination, and durability. The camera lens system is optimized for wide field-of-view and high depth-of-field, ensuring comprehensive internal visualization.
Resolution varies depending on the application but generally ranges from standard definition (SD) to high definition (HD), with cutting-edge models supporting 4K resolution. High frame rates are essential for smooth real-time video, particularly during surgeries, where lag or blurring could compromise safety.
To function effectively in medical environments, endoscopic cameras must meet stringent criteria:
High Resolution and Image Clarity:
Sharp, detailed images enable physicians to detect subtle abnormalities such as inflammation, tumors, or lesions.
Low Light Sensitivity and Noise Reduction:
Since internal body cavities are poorly lit, cameras require sensitive sensors and noise reduction algorithms to deliver clear images.
Miniaturization and Form Factor Constraints:
The camera must fit within the limited diameter of the endoscope without compromising flexibility or maneuverability.
Waterproofing and Sterilization Compatibility:
Medical cameras must withstand rigorous sterilization processes, including autoclaving, to prevent infection transmission
Real-Time Video Transmission and Low Latency:
Delays in image transmission can affect procedural accuracy, making fast and reliable data transfer essential.
Endoscopic cameras utilize a variety of interfaces to transmit video and image data to monitors, recording devices, or computers, ensuring seamless integration into different medical and industrial systems.

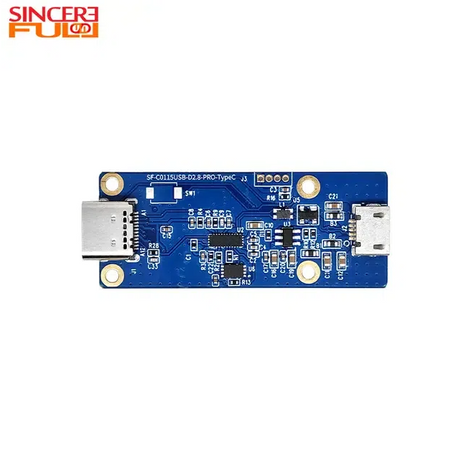

USB Endoscopic Cameras are among the most popular due to their plug-and-play convenience and wide compatibility with many operating systems and devices. USB interfaces simplify connection to portable laptops, desktops, and even mobile devices, making them ideal for both clinical and educational settings. Their ease of use reduces setup time and enhances workflow efficiency during procedures.
MIPI (Mobile Industry Processor Interface) and HDMI (High-Definition Multimedia Interface) are also commonly used in endoscopic camera modules. MIPI is especially favored in embedded medical devices because it supports high data transfer rates while maintaining low power consumption, which is critical for battery-powered and compact systems. HDMI, on the other hand, provides direct high-definition video output to large external displays or operating room monitors, delivering crystal-clear images essential for precision surgeries and diagnostics.
In recent years, wireless endoscopic cameras have emerged as a transformative technology. By eliminating cables, wireless connectivity enhances the freedom of movement for medical staff and allows remote operation or monitoring of procedures. This technology not only reduces clutter in the operating room but also opens possibilities for telemedicine, where specialists can assist surgeries from distant locations, increasing accessibility and patient care quality.
The field of endoscopic cameras continues to evolve with innovations enhancing diagnostic and therapeutic capabilities:
4K and 3D Endoscopic Cameras:
Ultra-high-definition 4K imaging offers exceptional clarity, while 3D endoscopes provide depth perception that improves surgical precision.
AI Integration and Image Enhancement:
Artificial intelligence algorithms assist in real-time detection of abnormalities and image quality improvements, supporting faster and more accurate diagnoses.
Capsule Endoscopy Cameras:
Miniature cameras encapsulated in swallowable capsules capture images throughout the digestive tract, offering a non-invasive alternative for certain diagnostics.
Selecting the ideal endoscopic camera involves evaluating several key factors:
Application-Specific Requirements
Different medical procedures call for different camera features. For example, diagnostic imaging may require ultra-high resolution, while surgical applications prioritize flexibility and real-time video clarity. Pediatric use may demand ultra-small camera heads for safe operation.
Budget Considerations
Advanced camera modules with features like 4K imaging or autofocus offer excellent quality but come at a higher price. Balancing performance needs with budget constraints is essential for cost-effective procurement.
Regulatory Compliance
Endoscopic cameras used in medical devices must meet global medical standards such as FDA, CE, or ISO certifications. Compliance ensures both safety and reliability in clinical environments.
OEM Customization
Many manufacturers require tailor-made solutions. Customization in size, lens type, interface (USB, MIPI, HDMI), and housing materials allows integration into specific endoscopic systems, improving device functionality and usability.
Guangzhou Sincere Information Technology Co., Ltd. stands out as a trusted manufacturer of high-qualityendoscopic cameramodules for medical and industrial use. Their comprehensive product line covers resolutions from HD to 4K, offering compact and customizable designs that integrate seamlessly with USB, MIPI, and HDMI interfaces.
Backed by rigorous quality control, responsive technical support, and flexible OEM/ODM services, Guangzhou Sincere provides tailored solutions to meet diverse imaging requirements. Their cameras play a vital role in enhancing the safety, precision, and efficiency of minimally invasive procedures.
For healthcare and device manufacturers looking for reliable imaging technology, visit Guangzhou Sincere’s official website or get in touch with their team to explore innovative endoscopic camera solutions.
