In medical procedures and industrial inspections, seeing into tight, confined spaces is essential—whether it's examining a patient's internal organs or inspecting the interior of a complex machine. This is where rigid endoscope camera modules come in. But what exactly are they, and how do they differ from other options? In this article, we’ll explore the technology behind these modules, dive deep into their key technical challenges, and help you decide when a rigid endoscope camera is the right choice.

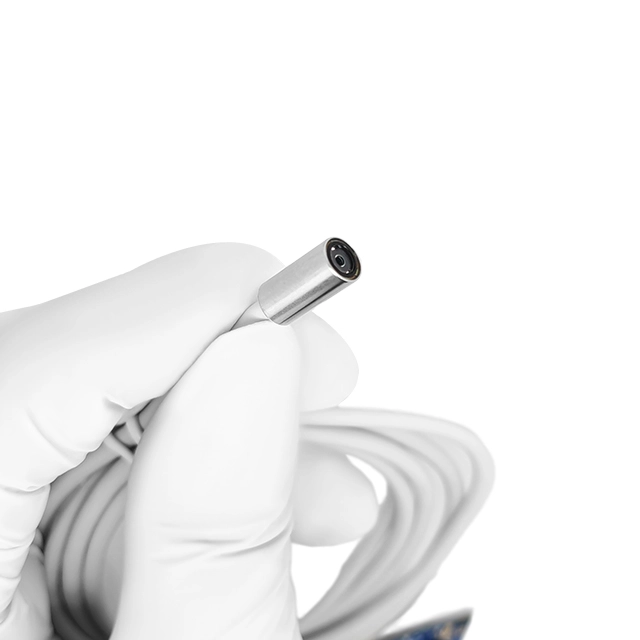

A rigid endoscope camera module is a compact imaging system designed for use in endoscopes—thin, tube-like devices that allow visualization in hard-to-reach areas. Unlike flexible endoscopes, which can bend and navigate curves, rigid endoscopes maintain a straight, fixed structure. The camera module typically includes:
CMOS Image Sensor: The core component that captures light and converts it into digital signals. For endoscopic applications, sensors are often small (e.g., 1/10” to 1/4” format) to fit into narrow tubes.
Optics: A lens system that focuses light onto the sensor. In rigid endoscopes, these optics are fixed, providing high optical clarity but limited maneuverability.
Light Source Integration: Many modules include LED or fiber-optic illumination to ensure visibility in dark environments.
Digital Output: Interfaces like MIPI or USB for seamless integration with display systems.
These modules are built for durability and precision, making them ideal for applications where straight-line access is possible. SincereFirst, with its 30+ years of experience in optical imaging, offers customizable rigid endoscope camera modules tailored to specific needs.
One of the biggest challenges in endoscopic confined spaces. Let’s focus on this problem: How does sensor size and optics design impact clarity in rigid endoscope cameras?
In a rigid endoscope, the camera module must fit into a tube as narrow as 2–5 mm in diameter. This imaging is maintaining high image quality in extremely severely limits the cmos sensor size—often to 1/10” or smaller—which reduces light-gathering capability. Smaller sensors have smaller pixels, leading to higher noise and lower dynamic range, especially in low-light conditions like inside a human body or a dark machinery cavity.
Additionally, the fixed optics in a rigid endoscope camera must provide a wide field of view (FOV) without distortion, but compact designs can introduce aberrations like chromatic aberration or vignetting (darkening at the edges).
To address these issues, several engineering approaches are used:
1.
Pixel Technology: Advanced CMOS sensors with backside illumination (BSI) or stacked designs can improve light sensitivity even in small formats. For example, a 1/10” BSI sensor captures more light than a traditional front-side illumination sensor, reducing noise in low-light endoscopic scenes.
2.
Optical Design: High-quality glass lenses with anti-reflective coatings minimize aberrations. In rigid endoscopes, the optics are often fixed in a straight path, allowing for precise calibration. However, this limits flexibility—hence the trade-off between clarity and maneuverability.
3.
Illumination Integration: Co-locating LEDs or fiber optics with the camera module ensures even lighting, which is critical for consistent image quality. In medical applications, this prevents shadows that could obscure details during surgery.
4.
Digital Processing: On-sensor processing or external ISPs (Image Signal Processors) can enhance dynamic range and reduce noise, compensating for the small sensor size.
For SincereFirst’s clients in medical and industrial sectors, we optimize these factors through our AA (Active Alignment) manufacturing process, ensuring each module delivers sharp, reliable images even in tight spaces.
Rigid endoscope cameras are widely used in:
Medical Procedures: Such as laparoscopy, arthroscopy, and ENT (ear, nose, throat) examinations. Their straight design allows for precise control and high-resolution imaging, crucial for diagnosing conditions or guiding surgeries.
Industrial Inspection: In manufacturing, they’re used for inspecting pipelines, engines, or electronic components where straight access is available. Their durability and clarity help detect defects early.
In contrast, flexible endoscopes are better for navigating curved paths (e.g., colonoscopies), but they often sacrifice some image quality due to the bending optics and smaller sensors.
A common question is: rigid or flexible endoscope camera better? The answer depends on the application:
Rigid Endoscope Cameras excel in scenarios requiring high image quality and straight-line access. They offer:
Superior optical clarity with fixed lenses.
Higher durability and easier maintenance.
Better for procedures where precision is key (e.g., joint inspections or controlled industrial environments).
Flexible Endoscope Cameras are ideal for navigating curves but face challenges:
Bending optics can reduce image sharpness and introduce distortions.
Smaller sensors often mean lower light sensitivity.
More complex and costly to manufacture.
For many medical and industrial users, a rigid endoscope camera module is the preferred choice when straight access is possible, as it balances performance, cost, and reliability. SincereFirst supports both types but emphasizes rigid modules for their robustness in high-stakes applications.
With our expertise in optical imaging and customization, SincereFirst can tailor rigid endoscope camera modules to your exact specifications. Whether you need a 5 megapixel camera module for detailed inspections or an 8 megapixel camera module for medical imaging, we offer:
Customization: From sensor size to lens design, we align the module with your application.
Quality Assurance: 1-year replacement and 10-year warranty ensure long-term reliability.
Global Support: Serving 200+ countries, we provide 7*24 service to address any technical queries.
Our manufacturing strengths, including 100-level dust-free workshops, guarantee that every module meets the highest standards for clarity and durability.
A rigid endoscope camera module is a powerful tool for visualizing confined spaces with high clarity. By understanding the technical challenges—like sensor size and optics design—you can make informed decisions for your applications. Whether for medical or industrial use, rigid endoscopes often outperform flexible options in straight-line scenarios, offering better image quality and reliability.
If you’re exploring endoscopic solutions, consider SincereFirst’s customizable modules to add intelligent eyes to your projects. Contact our team for a consultation—we’re here to help you see clearly, even in the tightest spaces.
