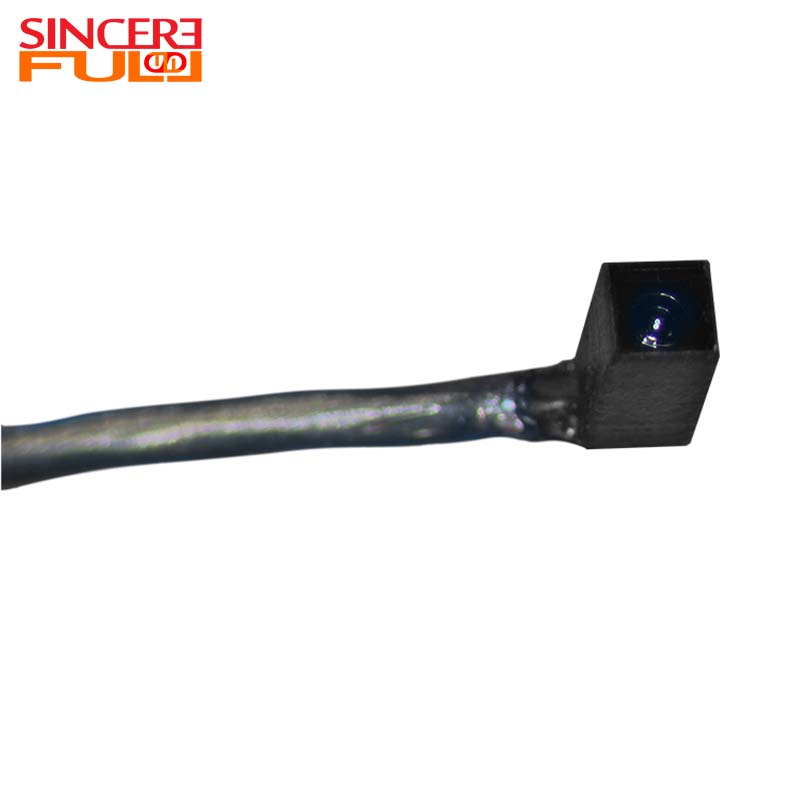

USB interface image Sensor OCHFA10 1.5mm Diameter Endoscope Camera Module side view

This 1.5mm Diameter Endoscope Camera Module designed for medical applications. This compact USB Endoscope features image sensor with a resolution of 700 x 700 pixels at 60 fps, or 400 x 400 pixels at 90 fps, ensuring blur-free imaging and video capture.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C05USB-D1.5-side

  • SINCEREFIRST


This 1.5mm Diameter Endoscope Camera Module designed for medical applications. This compact USB Endoscope features image sensor with a resolution of 700 x 700 pixels at 60 fps, or 400 x 400 pixels at 90 fps, ensuring blur-free imaging and video capture.


The OCHFA10's optical size is 1/18", with a focal length of 0.418mm and an impressive field of view of 86° x 86°. The camera module utilizes OMNIVISION PureCel®Plus-S pixel technology for enhanced sensitivity, low noise, zero blooming, and high full-well capacity, delivering excellent raw color imaging performance.


Additionally, it integrates an infrared (IR) cut filter to maintain color fidelity. With ETO and STERRAD sterilization capabilities, waterproofing, and biocompatibility, the OCHFA10 is designed for safe use within the body. The module supports USB 2.0 UVC output, operates on a single 3.3V power supply, and features a pseudo-global shutter in LED mode for precise exposure and gain control.


Available in various cable lengths and configurations, the OCHFA10 is the ideal choice for doctors, veterinarians, and industrial applications seeking high-quality endoscopic images.

usb endoscope


Product Advantage ◢

OCHFA10 sensor camera module is a compact wafer-level camera module for medical applications, featuring 700x700 resolution at 60 fps, or 400x400 at 90 fps. Key attributes include ETO/STERRAD sterilization, waterproofing, PureCel®Plus-S pixel technology for high sensitivity and low noise, and SPI interface. It offers 120° and 90° FOV options, a 1/18" optical size, and operates with a single 3.3V power supply.


Application of Endoscope Camera Module

1. Minimally invasive surgery: Ophthalmology: vitrectomy assisted.


2. Precise diagnosis application: early cancer screening, gastrointestinal mucosal lesion identification.


3. High-end manufacturing quality inspection: wafer defect detection, precision bearing assembly verification.


Technical Parameters ◢

Product Name

USB ENDOSCOPE Camera Module

Image Sensor

OCHFA10 sensor

Pixel

720X720,400x400

Focusing Range

5~50mm

Focus Range

10mm-60mm

F NO

5.0

Power Supply

3-5V

Distortion

<-11%

FOV(H*V)

86°*86°

Feature

Side-View Endoscope Camera Module



FAQ

1. What are the interface types of the module?

Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices integrate dedicated medical image interfaces (such as DVI-Med).


1. How to choose the module suitable for car maintenance?

It is necessary to have an oil-proof lens, adjustable focal length (such as 10-100mm), LED strong light, some with magnetic probes or 360° rotating head to check the engine dead Angle.


2. What are the special requirements of laparoscopic surgical modules?

Anti-fogging design (lens heating or anti-fogging coating), 3D imaging capability, instrument channel integration, and color reproduction must be accurate (e.g., distinguishing tissue oxygen status).
