In the realm of industrial inspection, precision equipment maintenance, and embedded vision systems, the ability to visualize the interior of narrow structures often determines the success of a diagnostic or quality control operation. When the target space measures just a few millimeters in diameter, conventional imaging solutions become physically impractical. It is in these demanding scenarios that specialized micro endoscope camera modules demonstrate their engineering value.

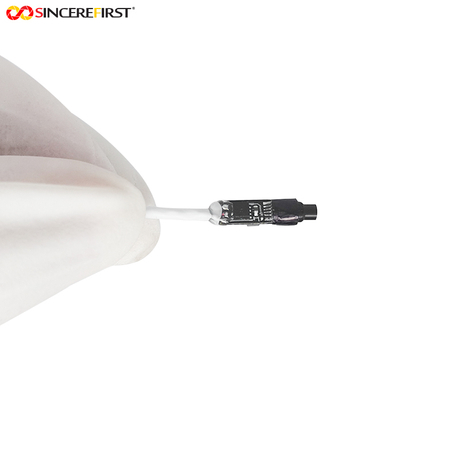

This technical guide examines a 3.6mm diameter imaging module built around the OV9734 CMOS sensor, analyzing its design philosophy, performance characteristics, and application fit for industrial, medical, and consumer use cases.
Before evaluating specific products, it is essential to understand the fundamental constraints that define micro endoscope design. When the imaging head diameter is reduced to 3.6mm, every component must be optimized for miniaturization without compromising optical performance or mechanical reliability.
The OV9734-based module addresses these challenges through precision engineering. Its 3.6mm diameter represents a carefully calculated balance—small enough to access standard medical catheters, industrial capillaries, and electronic equipment gaps, yet sufficiently spacious to accommodate a functional optical system with four optional LED illuminators.
The manufacturing tolerances applied to this module are critical to its performance. Precision control ensures that the lens assembly remains correctly aligned with the sensor even under mechanical stress, maintaining image quality throughout the device's operational life.
The optical characteristics of the module are defined by a 1.08mm focal length lens operating at F/4.0. This combination yields a diagonal field of view of 95°, with horizontal coverage of 85° and vertical coverage of 43.5°. For confined-space applications, this wide-angle perspective is essential—it allows the operator to observe a substantial portion of the cavity interior with minimal probe movement.
The TV distortion specification of < -10% indicates intentional barrel distortion, a characteristic common in endoscopic lenses. While distortion might seem undesirable, in confined-space imaging it serves a functional purpose: barrel distortion expands the peripheral field of view, allowing the operator to see around corners and into side cavities that would otherwise remain hidden. This design choice prioritizes comprehensive scene coverage over geometric perfection—a trade-off well-suited to inspection tasks.
The 10–100mm focus range deserves particular attention. Unlike fixed-focus lenses optimized for a single working distance, this module maintains acceptable sharpness across a tenfold distance range. At the near end, operators can examine surface details at 10mm; at the far end, they can obtain overview images of larger cavities at 100mm. This versatility reduces the need for mechanical focusing mechanisms, simplifying probe construction and improving reliability.
The OV9734 CMOS sensor was selected for this module based on its optimal balance of resolution, power efficiency, and size. Capable of delivering 720P (1280×720) video at 30 frames per second, it provides sufficient detail for most inspection tasks without generating excessive data that would strain USB 2.0 bandwidth.
The dual-format output capability—YUV and MJPEG—offers system integrators flexibility in managing bandwidth and image quality. YUV format preserves uncompressed video data, maintaining maximum fidelity for image analysis algorithms. MJPEG compression reduces data rates significantly, enabling smooth video streaming over USB connections while conserving storage space.
The image orientation register supports default settings while allowing developers to adjust top-bottom and left-right orientation via control commands, accommodating various installation orientations without hardware modification. This design consideration addresses scenarios where the module may be installed sideways or inverted, ensuring optimal image presentation regardless of physical mounting constraints.
The module's dual-interface design reflects a deep understanding of different integration scenarios. The Micro USB-5P port provides immediate plug-and-play functionality for rapid prototyping, field deployment, and consumer applications. With native UVC protocol support, it connects directly to computers, tablets, and smartphones without driver installation—a feature that substantially reduces development time and technical barriers.
The pinout definition of the Micro USB-5P interface follows a logical arrangement: Pin 1 (USB_5V/Power), Pin 2 (USB_DM/Data-), Pin 3 (USB_DP/Data+), Pin 4 (GND), and Pin 5 (Shield Ground). This configuration integrates power delivery, differential data transmission, and shielding within a single compact connector, minimizing space requirements while maintaining signal integrity.
The 10-pin sensor interface serves a different purpose: deep system integration. For OEMs developing custom instruments, this interface provides access to LED control signals, I²C communication lines, and direct sensor output. This level of access enables advanced features such as synchronized multi-camera triggering, custom image processing pipelines, and precise LED timing control.
In confined spaces, ambient light is typically absent. The module addresses this through an optional configuration of four 0402-sized white LEDs. These miniature light sources, each measuring just 0.4mm × 0.2mm, are positioned around the lens to provide uniform illumination of the target area.
The optional nature of this feature acknowledges that not all applications require integrated lighting. For cavities with existing illumination or for specialized optical setups, omitting the LEDs simplifies integration and reduces cost. When included, the LEDs are controlled via dedicated pins on the 10-pin interface, allowing software-based brightness adjustment and strobe synchronization.
From a power consumption perspective, the increase in total system power when LEDs are active remains within reasonable limits, supporting extended continuous operation under standard USB 5V power—suitable for all-day inspection tasks.
For nondestructive testing of industrial components, the 3.6mm diameter enables access to heat exchanger tubes, hydraulic fittings, and injection nozzles. The 10–100mm focus range accommodates both close examination of surface defects and overview imaging of cavity interiors. The wide field of view ensures that inspectors can quickly orient themselves within complex geometries, significantly improving inspection efficiency.
Electronic and mechanical equipment often contains inaccessible internal spaces where failures originate. The module's slender probe can pass through ventilation grilles, cable entry points, and existing service ports to visualize circuit boards, gear trains, and bearing surfaces. Optional LED illumination proves invaluable when examining unlit interior compartments, enabling technicians to diagnose faults without complete disassembly.
Homeowners and DIY enthusiasts increasingly use endoscopes for troubleshooting plumbing, inspecting wall cavities, and examining appliance internals. The plug-and-play USB connectivity makes this module immediately usable with standard computers without specialized technical knowledge. The 3.6mm probe can navigate through drain traps, ventilation ducts, and appliance access panels, bringing professional-grade visualization capabilities to household maintenance tasks.
For developers building specialized inspection robots or automated quality control systems, the module's dual-interface design provides a smooth path from prototyping to production. The USB interface enables rapid concept validation, while the 10-pin interface allows deep integration into custom hardware. The standardized video formats and UVC compliance ensure that software development can proceed in parallel with hardware design, significantly reducing time-to-market.
Every engineering design involves trade-offs, and understanding these boundaries is essential for successful application. The 720P@30fps maximum resolution represents the optimal balance between image detail and USB 2.0 bandwidth constraints. Higher resolutions would require compression artifacts or reduced frame rates that might compromise inspection effectiveness. For the vast majority of industrial and consumer applications, 720P provides sufficient detail for reliable decision-making.
The TV distortion specification of < -10% is intentional rather than a limitation. Wide-angle endoscope optics inherently produce barrel distortion; specifying it transparently allows system integrators to account for it in software correction if required by their application. For most inspection tasks, the expanded field coverage outweighs the need for geometric perfection—a rational design choice based on practical application requirements.
The optional nature of LED illumination acknowledges that lighting requirements vary significantly across applications. Some users will operate in well-lit environments or prefer external light sources; for them, omitting the LEDs reduces cost and complexity. Others working in complete darkness will find the integrated illumination essential. This design flexibility reflects a deep understanding of diverse market needs.
The OV9734-based 3.6mm micro endoscope camera module exemplifies the engineering compromises required to achieve visualization in extreme spatial constraints. Its 95° field of view, 10–100mm focus range, dual-interface design, and optional LED illumination combine to create a versatile solution for industrial, maintenance, consumer, and embedded applications.
For system integrators and OEMs, the module's value lies in the design decisions behind its specifications—not the pursuit of single-parameter excellence, but the optimal balance across diameter, field of view, distortion, interface, and illumination to meet the broadest range of application needs. The transparent specification of optical characteristics, including intentional distortion, enables informed design decisions and appropriate software compensation when needed.
As inspection requirements continue to push into smaller spaces and demand higher performance, modules like this represent the current state of the art in miniaturized imaging—a sophisticated balance of optical capability, mechanical precision, and electrical integration that enables vision in places previously inaccessible.
