In industrial inspection, medical aesthetics instruments, and educational labs, a common technical challenge arises: the target of interest is often located on pipe sidewalls, narrow gaps, or hard-to-reach areas where a direct frontal approach is impossible. Traditional forward-view endoscopes require perpendicular alignment to the surface for a clear image, but in these scenarios, the probe cannot approach the target at the required angle—either blocked by walls or restricted by space. Fixed-focus forward-view cameras further struggle with insufficient depth of field during close-range observation, where slight deviations from the optimal focal plane result in blurred images.

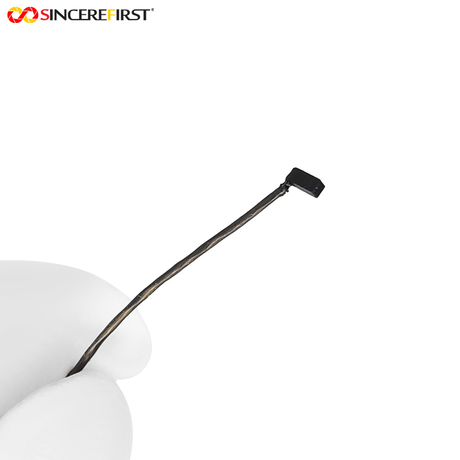

Addressing this engineering challenge, the OCHFA10 sensor-based side-view fixed-focus micro endoscope module provides a system-level solution. This guide analyzes the module across three dimensions: technical parameters, application adaptability, and selection framework. It helps inspection equipment manufacturers, medical aesthetics device developers, and educational lab integrators evaluate the module’s suitability for their systems. Keywords such as USB endoscope camera, industrial inspection camera, endoscope camera module manufacturer, CMOS module camera, mini camera endoscope, module camera are integrated to highlight its product value.
2.1 Side-View Structure: Overcoming Forward-View Limitations
The module features a dedicated side-view optical design, where the imaging axis forms a 90° angle with the probe axis. This fundamentally changes the observation geometry.
A traditional forward-view endoscope can only capture the pipe’s front end, leaving sidewall conditions invisible. Side-view design allows operators to scan circumferentially while advancing the probe, enabling continuous inspection of inner walls, threads, and cavity side surfaces.
In medical aesthetics applications like blackhead removers or dermatoscopes, the side-view structure lets the probe approach the skin surface comfortably, without forcing the user to twist their wrist. In industrial inspection, the design allows an industrial inspection camera to access inside engine cylinders or valve bodies, directly observing cylinder wall wear or sealing surfaces without disassembling critical components. As a professional endoscope camera module manufacturer, SincereFirst combines side-view optics with micro packaging, enabling full lateral imaging in probes just a few millimeters in diameter.
2.2 Fixed-Focus Depth: Optimized for Macro Imaging
The module’s 5–50 mm fixed-focus range is central for macro observation. Unlike autofocus or manual focus systems, the fixed-focus design locks the optimal imaging plane within this typical working distance, delivering the highest resolution and minimal aberration.
In medical aesthetics devices, typical working distances are 10–30 mm; fixed-focus ensures consistently sharp images without constant probe adjustment.
In educational labs, students can freely move the module camera within 5–50 mm of a specimen while maintaining clear images, reducing operational difficulty.
Compared to autofocus, fixed-focus eliminates motors and driver circuitry, lowering cost, reducing size, and removing focus delay—achieving real-time “what you see is what you get” imaging. For CMOS module cameras, this simplified optical architecture facilitates micro-scale packaging for space-constrained device integration.
2.3 Optical Parameter Balance: Light Intake vs. Field of View
With a 0.418 mm focal length, F5.0 aperture, and 86° × 86° wide-angle, the module strikes a precise balance between light intake and field coverage. The relatively small F5.0 aperture reduces light input but significantly increases depth of field, ensuring consistent imaging across the 5–50 mm focus range.
The 86° × 86° field of view covers approximately 8 mm × 8 mm at 5 mm working distance and expands to 80 mm × 80 mm at 50 mm, balancing micro-detail and broader context.
TV distortion is controlled within -11%, representing mild barrel distortion. In side-view macro design, this serves a functional purpose: it expands the lateral field, compensating for potential loss due to optical path turns. In medical aesthetics (skin texture observation) or educational demonstrations, this level of distortion does not hinder qualitative assessment and actually improves coverage efficiency.
2.4 Interface and Protocol: Plug-and-Play Integration
The module supports USB 2.0 UVC standard protocol, connecting via Micro USB 5P without any driver installation. As a standard USB endoscope camera, its core value lies in minimal integration effort—whether on Windows industrial PCs, Android tablets, or Raspberry Pi boards, it is instantly recognized and ready for imaging.
Dual-format output (YUV and MJPEG) provides system designers flexibility:
YUV: Preserves raw video for image analysis algorithms without compression artifacts.
MJPEG: Compresses data to 10–20% of original size, allowing stable transmission over USB 2.0.
Fixed 700 × 700 resolution offers sufficient detail for macro inspection while avoiding unnecessary data overhead.
3.1 Close-Range Micro-Inspection
Use case: Electronic component inspection, surface defect detection, precision assembly verification (5–50 mm).
Rationale: Fixed-focus ensures sharp images, 86° FOV covers larger areas per capture, side-view allows access to areas unreachable by forward-view probes.
Selection considerations: Match inspection precision to depth of field, LED lighting for different materials, UVC compatibility with existing vision systems.
3.2 Medical Aesthetics Devices
Use case: Blackhead removers, dermatoscopes, nail inspection devices.
Rationale: Side-view probes approach skin naturally, fixed-focus ensures clarity at typical distances, 700 × 700 resolution captures fine features, UVC plug-and-play enables direct connection to mobile devices.
Selection considerations: Biocompatibility, waterproofing for sterilization, UVC integration with mobile apps.
3.3 Compact Device Vision Terminals
Use case: Bill counters, micro-recognition devices, teaching microscopes.
Rationale: Compact design fits limited space, standardized UVC simplifies integration, fixed-focus removes delay, suitable for rapid-response scenarios.
Selection considerations: Interface match with control boards, power consumption, long-term stability.
3.4 Educational Observation
Use case: Classroom demonstrations, small specimen inspection, handicraft analysis.
Rationale: 86° FOV allows all students to see details, UVC driver-free ensures plug-and-play, fixed-focus reduces operational errors, enabling clear observation for more students.
Selection considerations: Connectivity to projection systems, image latency, interface usability.
4.1 Eligibility Assessment
Observation geometry: Determine if the target is in front or to the side; side-view is required for inaccessible surfaces like pipe walls or internal threads.
Working distance: Verify image clarity across the 5–50 mm range; consider lens replacement for extreme close-range (<5 mm) needs.
Lighting conditions: Check if LED illumination meets the requirements for dark environments, such as medical aesthetics applications.
4.2 System Integration Assessment
4. Platform compatibility: Test UVC plug-and-play across target devices; ensure YUV and MJPEG formats decode reliably.
5. Mechanical fit: Measure available space and confirm module diameter and length; assess rigid segment length and bend radius for narrow channels.
4.3 Environmental and Reliability Assessment
6. Protection rating: Ensure waterproofing and dustproofing meet sterilization standards.
7. Long-term stability: Conduct continuous operation tests to monitor image quality degradation and temperature rise.
With over 30 years of optical imaging experience, SincereFirst collaborates with multiple Fortune 500 companies, distributing products to over 200 countries. Operating Class 10/100 COB cleanrooms and advanced Active Alignment (AA) manufacturing processes, SincereFirst ensures consistent optical performance for every CMOS module camera.
For medical aesthetics and industrial inspection device manufacturers, SincereFirst provides complete technical documentation and customization services—from lens selection and interface modification to cable length adjustments. All products meet FCC, CE, and RoHS certifications for global compliance.
As a professional endoscope camera module manufacturer, SincereFirst not only delivers standard USB endoscope cameras, but also strives to be a trusted partner for your vision systems—enabling sharper, more accurate, and longer-reaching imaging solutions.
The value of the OCHFA10 sensor-based side-view fixed-focus micro endoscope module lies not in extreme individual specs, but in its design philosophy tailored for macro observation and sidewall inspection. Its side-view structure overcomes forward-view limitations, fixed-focus optimizes sharpness, 86° wide-angle expands coverage, and UVC protocol simplifies integration—offering industrial inspection, medical aesthetics, and educational applications a precise, user-friendly, and reliable mini camera endoscope solution.
Successful selection depends on clear answers to fundamental questions: observation geometry, working distance, lighting conditions, and integration platform. When these align with technical specifications, the selection process evolves from passive comparison to proactive system design expertise.
