In industrial inspection, equipment maintenance, and medical support, visual inspection tools are evolving along two clear trajectories: continuous miniaturization of the probe diameter and wireless connectivity. When 4.5mm-class miniature imaging modules are combined with WiFi technology, a new inspection paradigm emerges. It removes the limitations of cable length while bringing high-definition imaging to previously inaccessible narrow spaces.
The BF20A6 sensor-based next-generation endoscope module exemplifies this trend. With a 4.5mm diameter, 720P resolution, 30fps frame rate, and dual-mode wired USB and wireless WiFi transmission, it provides flexible solutions for industrial inspection, device maintenance, and remote monitoring. This article examines the technological evolution, market drivers, core technologies, and future trends of miniature wireless endoscope modules.
Traditional endoscope inspection is constrained by cable length, forcing operators to stay close to the target and manage cumbersome cables. This often causes tangling or loose connections in complex environments. The miniaturization and low power consumption of WiFi modules have paved the way for wireless endoscope modules. By integrating a WiFi transceiver into the rear of the probe, images can be transmitted to a mobile device, tablet, or PC, expanding the operating range from a few meters to tens of meters indoors.
This evolution is more than a simple interface upgrade—it reshapes inspection workflows. For instance, the BF20A6 module supports traditional USB 2.0 DVP interfaces for high-bandwidth wired transmission while its onboard WiFi module enables wireless control and data sharing. Inspectors can place probes in hard-to-reach or hazardous areas, observing real-time images from a safe distance. This dual-mode design balances conventional user habits with the flexibility demanded by emerging inspection scenarios.
Industrial Inspection:
Micro-pipes, gearboxes, and engine cylinders require precise, non-destructive inspection. The 4.5mm probe easily enters channels ≥5mm, with 720P resolution sufficient to detect cracks, corrosion, or debris. WiFi allows operators to monitor devices without heavy display equipment, improving inspection efficiency. As a miniature inspection camera module, these devices are increasingly replacing traditional handheld endoscopes.
Medical Applications:
In ENT examinations, skin observation, and oral care, compact, portable, and disinfectable devices are in high demand. A 4.5mm WiFi-enabled medical endoscope camera module can connect directly to tablets or mobile devices, eliminating cumbersome display units. 720P resolution provides adequate detail for mucosal color, skin pores, and other diagnostic information, making it ideal for clinics, community healthcare, and home care.
Consumer & DIY Markets:
The rise of smart homes, drones, and robots has expanded demand for mini cameras beyond industrial applications. Enthusiasts can use mini camera endoscopes for pipe inspection robots, underwater cameras, or pet monitoring devices. WiFi integration allows direct streaming to mobile apps without complex programming.

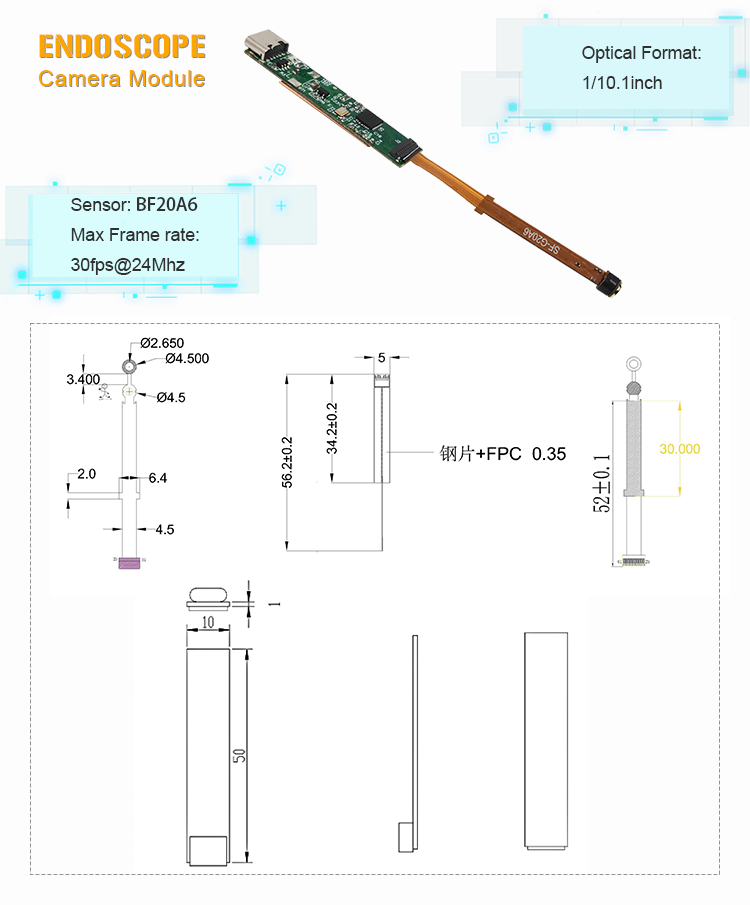

The BF20A6 sensor uses a 1/10.1-inch optical format, delivering 1280×720 resolution with a 36dB signal-to-noise ratio. Six 0402 LED ring lights provide illumination in low-light environments, and a 30fps frame rate at 24MHz clock ensures smooth motion preview.
The module’s dual-mode design allows DVP wired output for low-latency industrial integration and WiFi streaming for mobile inspection. This flexibility supports both fixed production line setups and field inspections, reducing complexity and inventory burden.
The six 0402 LEDs arranged in a symmetrical ring improve illumination uniformity and prevent hot spots or dark edges, while the fixed-focus lens eliminates autofocus motors, reducing cost and increasing shock resistance.
The miniature wireless endoscope market is crowded, with many products appearing similar. True differentiation comes from practical adaptability. Overemphasizing resolution (1080P or 4K) can compromise low-light performance due to small pixel size. Over-prioritizing wireless range may reduce real-time stability.
SincereFirst’s approach reflects a “just enough” philosophy: 720P resolution on a 1/10-inch sensor maintains 1.4µm pixel size for adequate SNR and low-light performance. 30fps ensures smooth operation, and dual-mode transmission allows users to choose connectivity based on the scenario. This practical design makes the module widely accepted in industrial inspection, maintenance, and medical assistance applications.
COB packaging and active alignment (AA) ensure optical axis consistency and minimal distortion, while CE, FCC, RoHS, and REACH certifications enable global deployment.
The development of miniature wireless endoscope modules is expected to advance in two directions:
Edge Intelligence: Integration of lightweight AI for real-time defect detection, object recognition, and image enhancement, reducing reliance on backend devices.
Platform Ecosystem: Modular probes of different diameters, FOVs, and lighting configurations can share the same USB/WiFi base, enabling rapid adaptation to specific inspection tasks.
With 5G and WiFi6 adoption, wireless bandwidth and latency will improve, making 1080P or even 4K wireless endoscope modules feasible. However, sensor size limits mean extremely high resolutions at 4.5mm diameter may not be practical. Balanced products like BF20A6 will remain mainstream for the foreseeable future.
The BF20A6 4.5mm dual-mode wireless endoscope module delivers industry value not just through miniaturization or wireless freedom, but by addressing the core challenges of inspection: enabling detailed observation at a safe distance, freeing medical devices from cable constraints, and supporting DIY innovation. As a hd endoscope, it prioritizes practical performance over pixel competition, achieving an optimal balance of miniaturization, clarity, and flexible transmission. Understanding this engineering balance allows integrators and end-users to make informed choices in a crowded market.
