SF-C10TV-D3.7 PIC
SINCEREFIRST

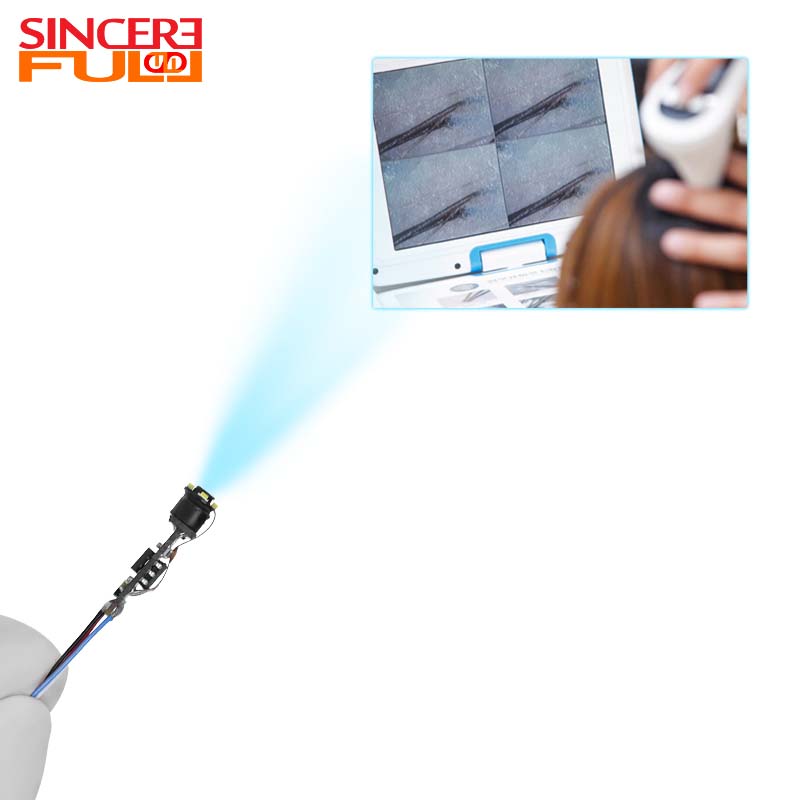

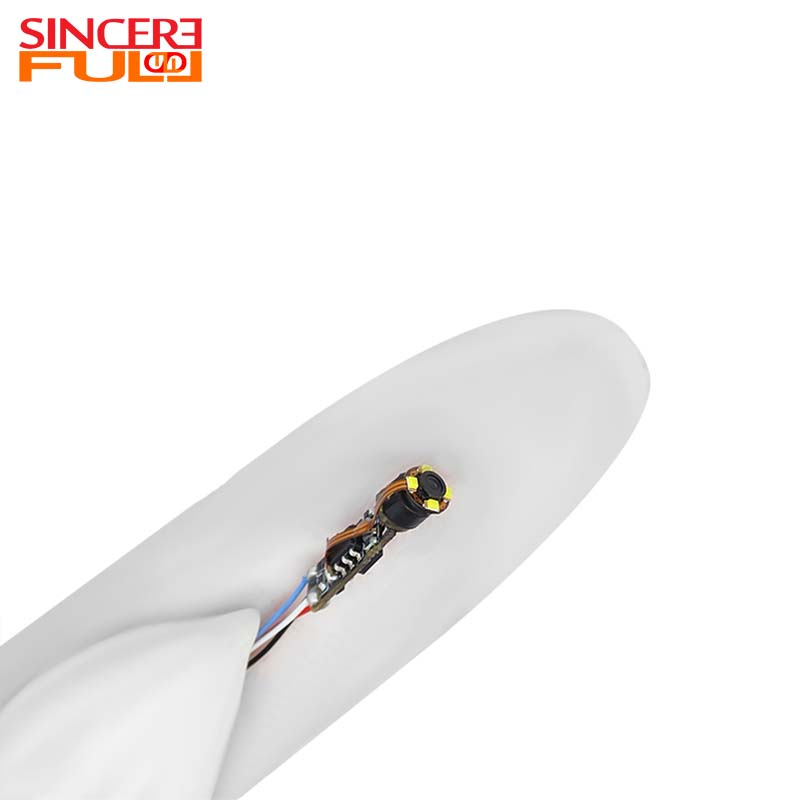

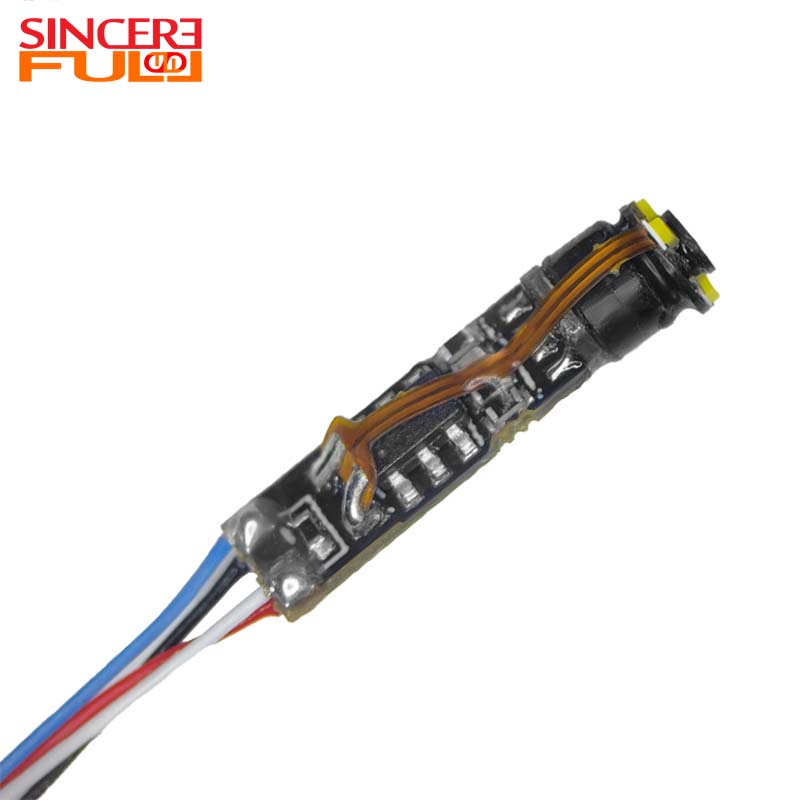

This mini camera module features a 3.7mm endoscope design. In addition, this HD endoscope camera module uses a 1/18 "CMOS sensor and offers a resolution of 328×248 with a viewing Angle of 98°DFOV, which captures images in a wide range, providing clear and detailed images. This inspection endoscope camera module includes a user-friendly LED ring that allows you to easily adjust the brightness with the scroll button and control the LED lights effortlessly. The module has a depth of field range of 10-60mm, ensuring clear images in a variety of scenes. This versatile digital camera module combines a compact 3.7mm diameter, which is suitable for medical use and can be used in most endoscopic products on the market. |
Product Advantage ◢
3.7mm diameter for easy maneuverability.
328×248 with 1/18” CMOS sensor for excellent image quality.
98° DFOV for broader visibility.
LED ring with brightness control.
1. Neurosurgery: Observation of deep brain tissue through fine needle puncture.
2. Precision manufacturing: micro parts internal defect detection.
3. Geological exploration: Integrated with drilling robots to observe the structure of underground rock formations.
Technical Parameters ◢
Product Name | 3.7mm Bronchoscope Camera Module |
Image Sensor | 1/18” |
Pixel | 0.1MP |
Led | 4pcs LED |
Focus Range | 10mm-60mm |
AGC | On |
Power Supply | 3-5V |
Diameter | 3.7mm |
FOV(D) | 98° |
Operating Dimentions | O℃~40℃ |
FAQ ◢
1. How to achieve stereoscopic vision with 3D endoscope?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
2. What are the typical requirements for custom modules?
Common requirements include special dimensions, multispectral imaging, and interface protocol adaptation.
3. Why do some modules differ several times in price?
The differences are due to factors such as sensor brand, optical lens group, and medical certification.
