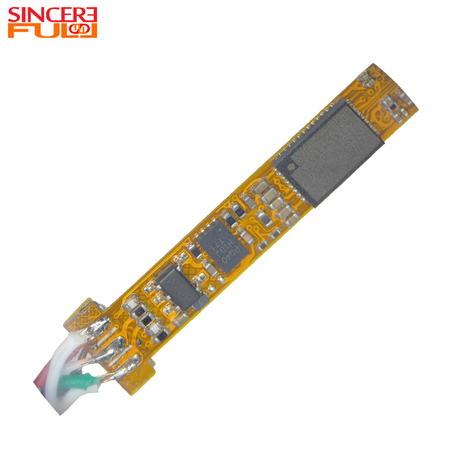

In the evolution of endoscopic imaging technology, the continual reduction of sensor size and module diameter has consistently been a key driver of industry innovation. The 4.5mm-diameter miniature USB endoscope module, centered on the BF2013 sensor, represents a critical node along this technological path. It combines the low power consumption and high integration advantages of CMOS technology with a physical scale sufficient to cover most industrial inspection and medical assistance scenarios.
This article systematically analyzes the industrial value and market prospects of 4.5mm-class miniature CMOS endoscope modules, using BF2013 as a representative case, across four dimensions: industry structure, technological trends, competitive positioning, and future evolution.
The global endoscope camera market is experiencing steady growth. Market research estimates a rise from $3.37 billion in 2025 to $5.28 billion by 2030, a compound annual growth rate (CAGR) of 9.6%. The broader global camera module market is also expanding, expected to grow from $50.81 billion in 2025 to $95.37 billion in 2032 at a 9.41% CAGR. Endoscope-specific camera modules, as a subsegment of this larger market, benefit from both the increasing adoption of minimally invasive surgery and ongoing demand for industrial nondestructive testing.
The endoscope market exhibits a dual-track structure.
·
High-end medical sector: Dominated by international players such as Olympus, Stryker, and Karl Storz, with the top five companies accounting for roughly 85.24% of the market in 2025. These companies continuously invest in 4K UHD, 3D imaging, and fluorescence navigation, creating high technological barriers.
·
·
Industrial inspection, equipment maintenance, and cost-sensitive medical assistance: Highly fragmented, with no dominant player.
·
The explosive growth of single-use electronic endoscopes supports this observation. Their extreme cost sensitivity favors standardized, high-value-for-money imaging modules. The 4.5mm miniature CMOS module is well aligned with this demand:
·
4.5mm diameter: Maximizes physical accessibility.
·
·
VGA resolution: Covers most standard inspection tasks.
·
·
USB interface: Simplifies system integration.
·
This combination balances performance and cost for mid- to low-end applications.
CMOS imaging technology for endoscopy is undergoing profound transformation. Key directions include:
·
Continued optimization of resolution and low noise
·
·
Synergistic miniaturization and integration
·
·
Enhanced intelligent sensing and real-time analysis
·
·
Improved biocompatibility and durability
·
The BF2013 sensor aligns well with these trends.
·
Pixel size: 2.25μm pixels—3–8× larger than mainstream high-pixel sensors (0.8–1.2μm). In LED-only illuminated, confined spaces, larger pixels yield higher SNR and lower noise, directly improving usable image quality.
·
·
Optical format: 1/10-inch, enabling a 4.5mm module diameter, which is below the minimum inner diameter of most industrial and medical channels (e.g., 5mm pneumatic tubes, 5.5mm catheter channels), leaving 0.5–1.0mm radial clearance.
·
·
Depth of field: 5–50mm, tailored for close-range inspection. For micro-diameter pipelines (5–10mm), the working distance to the target typically falls within 10–30mm, maintaining clear focus without constant probe adjustment, improving inspection efficiency.
·
The 4.5mm miniature endoscope market is characterized by product homogeneity. Many competitors offer similar diameter and resolution. True differentiation lies in balancing standardized interfaces with customization capabilities.
USB 2.0 + UVC protocol: Treats the camera as a standard OS resource, enabling plug-and-play operation across Windows, Linux, Android, and macOS without specialized drivers.
Reduces software development by 4–8 weeks.
OTG cable suffices for mobile devices; V4L2 interface works directly with embedded platforms like Raspberry Pi or Jetson Nano.
Six LED ring: Provides uniform illumination in confined, zero-light environments.
Minimizes “tunnel effect” (center overexposure, side underexposure).
Independently powered LEDs support brightness adjustment for varying target reflectivity.
Customizable housings: Allows adaptation from 2mm bare modules to 2.5–4mm encased products, providing material choices (medical-grade stainless steel, engineering plastics), waterproof ratings (IP67+), and mounting interfaces.
This “standardized core + customizable housing” strategy enables a single module to serve multiple scenarios: industrial pipelines, medical assistance, precision equipment maintenance, and more.
Over the next 3–5 years, the 4.5mm miniature CMOS module’s industrial value will be driven by:
Specialization: Optimized solutions for specific applications.
Semiconductor manufacturing: ESD protection, high-frame-rate modes for fast-moving wafers.
Medical: Biocompatibility per ISO 10993, housings compatible with EO or low-temp plasma sterilization.
Industrial pipelines: Enhanced waterproof/dustproof (IP67+), extended cable lengths.
Scene depth: Endoscopic inspection applications will proliferate as Industrial 4.0 and medical infrastructure expand.
Industrial: From aerospace, energy, chemical sectors to automotive, home appliances, and construction.
Medical: From tertiary hospitals to community clinics and home care.
Each new scenario imposes constraints on module size, cost, and usability—strengths of the 4.5mm CMOS modules.
Technological trajectory: CMOS sensors will continue improving resolution, low power, and intelligent sensing. The BF2013, as a mature, market-validated sensor, may evolve with:
Higher quantum efficiency for improved low-light performance
Integrated basic image processing for edge defect detection
Ultra-low power versions for battery-powered devices
These upgrades will strengthen its competitive position.
The Asia-Pacific region is a key growth driver. The market is projected to grow from $1.19885 billion in 2025 to $2.26553 billion in 2032, CAGR 9.47%, fueled by medical infrastructure investments in China and India and a mature electronics manufacturing ecosystem.
BF2013-based module suppliers have three major advantages:
Cost control via mature electronic manufacturing chain (miniature sensor packaging, LED mounting, FPC processing).
Rapid customization: 2mm bare modules to 4.5mm finished products, standard USB to special connectors, development cycles of weeks.
Regulatory support: Well-documented design and development aids NMPA, FDA approvals, giving an edge in supplier selection.
Challenges include dependence on a few international sensor suppliers, uncertainty in global trade, and premium domination by high-end international brands.
The 4.5mm miniature CMOS endoscope module is not a contender in a high-end technology race; it is a rational choice informed by application needs:
CMOS technology: Low power, high integration
4.5mm diameter: Broad physical access
USB interface: Simplified integration
Customizable housing: Expanded application scope
Its core value lies not in extreme specifications, but in optimally balancing cost, performance, reliability, and usability to meet the widest range of industrial and medical inspection needs. Understanding this positioning enables device integrators to make strategically informed technical choices beyond surface-level specification comparison.
