In industrial nondestructive testing, medical device development, and embedded vision systems, a recurring challenge arises when the target lies on the sidewall of a pipe or within narrow cavities, particularly at millimeter-scale diameters. Traditional forward-view endoscopes fail in such scenarios, as their lenses require direct, perpendicular alignment with the surface. Overcoming this limitation necessitates a fundamental shift in imaging geometry—from “looking forward” to “looking sideways.”

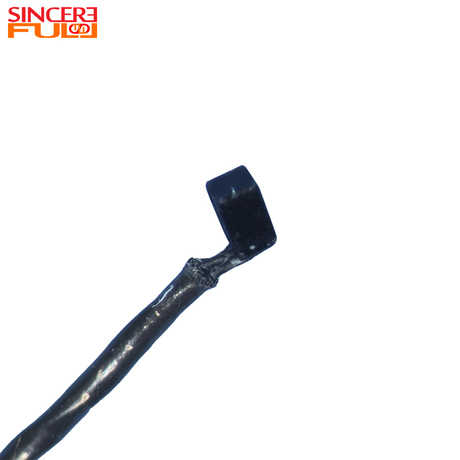

The 0.9mm diameter side-view endoscope module, built around the OCHTA10 sensor, provides a comprehensive engineering solution to this challenge. This article examines its optical design, mechanical integration, interface protocols, imaging performance, and application scenarios, highlighting its engineering value and practical utility.
Forward-view endoscopes operate with the lens axis aligned along the probe, capturing light directly ahead. While effective in open spaces, this geometry is blind to sidewalls, thread interiors, and circumferential cavities. In narrow pipelines, forward-view probes only visualize the pipe’s terminus, leaving sidewall conditions entirely unobserved.
Side-view design addresses this by redirecting the optical axis 90 degrees using a prism or mirror at the probe tip. This configuration allows the sensor to capture lateral information continuously while the probe advances, eliminating the need for rotation or repeated insertion and retraction.
The 0.9mm diameter side-view lens represents the current manufacturing limit of micro endoscopes. Within a cylinder less than 1mm in diameter, lenses, prisms, sensors, and illumination components must be precisely aligned, maintaining coaxiality and focal plane accuracy. Assembly tolerances on the order of ±0.05mm ensure consistent image quality in batch production.
The optical system employs the OCHTA10 sensor with a 0.175mm focal length and F2.8 aperture, providing sharp imaging for targets within a 3–30mm depth of field. Its 100° × 100° field of view covers approximately 5.2mm × 5.2mm at a 3mm working distance, sufficient to visualize most micro-pipeline cross-sections.
Distortion is controlled to within –11% (barrel distortion), which serves a functional role in side-view imaging by expanding the peripheral view to compensate for the optical path turn. For qualitative inspections, this does not impair defect identification; for precise measurements, software correction restores geometric accuracy.
The depth-of-field range ensures clear imaging at typical micro-pipeline distances (5–15mm), minimizing the need for frequent refocusing while emphasizing focal plane details for enhanced defect visibility.
The OCHTA10 sensor delivers a 400×400 effective pixel array (~160,000 pixels). While modest compared to consumer electronics, this resolution is appropriate for micro-cavity inspection. At a 5mm working distance, each pixel corresponds to roughly 13 microns, enabling clear visualization of:
Metal scratches (20–50 microns)
Pipe wall deposits (>100 microns)
Micro-solder joint morphology
Its relatively large pixel size (2.2–3.0 microns) improves signal-to-noise ratio under limited LED illumination, enhancing edge sharpness, low-light detail, and color accuracy. This makes the module effective in ultra-confined spaces where lighting is constrained.
The module offers a dual-interface design:
Micro USB-5P with UVC support: Plug-and-play compatibility with Windows, Linux, and Android, simplifying system integration and rapid prototyping.
6-pin sensor interface: For deep system integration, with reserved LEDA/LEDK pins for external illumination, allowing developers to optimize lighting angles and intensity for different materials while maintaining miniaturization.
Dual-format output (YUV/MJPEG) gives flexibility: YUV preserves uncompressed video for algorithmic analysis, while MJPEG reduces data volume to 10–20% for stable USB 2.0 transmission, ideal for manual observation or archival storage.
The side-view module can inspect inner walls of catheters, microfluidic chips, and precision tubing, detecting bonding defects, residues, or surface roughness. It is particularly valuable for high-risk devices such as balloon catheters and drug-eluting stent delivery systems, providing essential quality assurance.
In semiconductor, MEMS, and micro-motor applications, side-view probes enable inspection of threads, micro-holes, and cavity sidewalls without disassembly, identifying fatigue cracks, metal burrs, or particulate contamination.
In arthroscopy, spinal endoscopy, and dental root canal treatment, lateral vision allows operators to observe tissue circumferences, cartilage, and ligament attachments, improving procedure success rates.
For inspection robots, portable flaw detectors, and building cavity viewers, the 0.9mm diameter probe enables entry through narrow gaps while side-view optics provide comprehensive situational awareness for navigation and target recognition.
Prospective users should follow a systematic evaluation path:
Physical Access Verification: Confirm minimum channel diameter and compatibility with probe diameter and bend radius.
Imaging Geometry Assessment: Determine whether side-view optics are necessary for the target inspection.
Working Distance Testing: Ensure clarity across 3–30mm depth of field, particularly at near and far extremes.
Illumination Planning: Evaluate ambient light conditions; connect external LEDs if operating in dark environments.
Platform Compatibility Testing: Verify UVC plug-and-play operation and YUV/MJPEG output stability on target systems.
The 0.9mm side-view endoscope module extends imaging capabilities into microscopic environments inaccessible to traditional forward-view optics. Its design combines side-view geometry, micro-optical precision, standardized interfaces, and flexible illumination to achieve clear imaging in extreme confinement.
For medical device manufacturers, precision engineers, and embedded system developers, understanding the engineering logic behind this module enables informed, application-specific selection beyond simple parameter comparison, ensuring maximum utility in challenging inspection scenarios.
