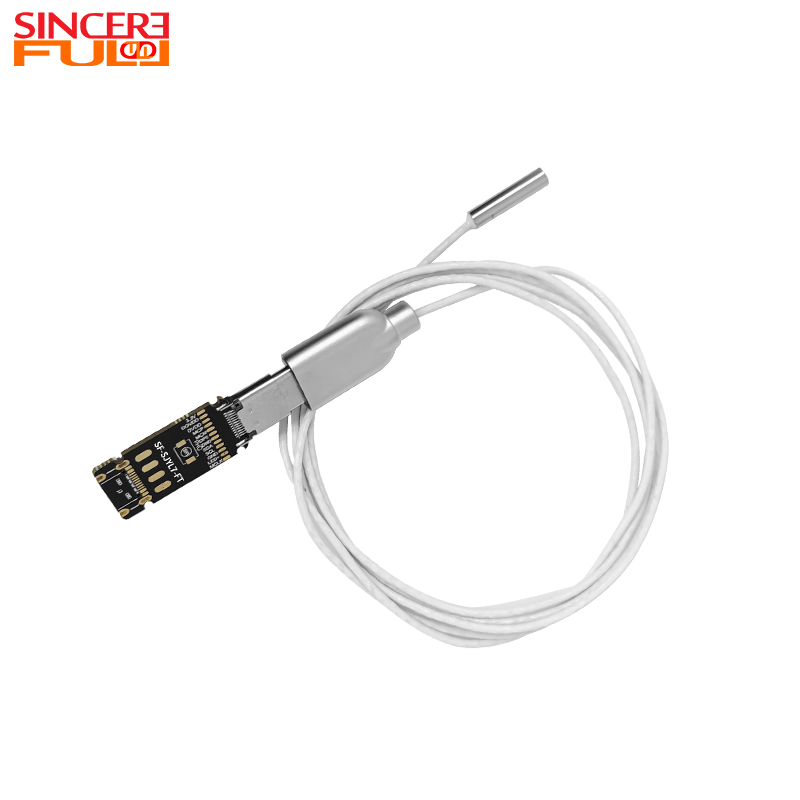

In the realms of modern medicine and industrial inspection, endoscopes have become indispensable tools for visualizing areas that are otherwise hidden from the naked eye. At the heart of every endoscope lie two critical components: a light source and a camera. While this might seem like a simple combination, the intricate relationship between illumination and imaging is what makes internal examination possible. Using our Wide-Angle 720P HD OV9734 CMOS Separated Type-C Endoscope Camera Module as a case study, this article explores the fundamental reasons why both elements are essential and how their specific parameters directly enable effective practical application.
The primary purpose of an endoscope is to access confined, deeply recessed, or completely dark spaces—be it a human body cavity like a digestive tract or the intricate interior of a jet engine. These environments share two common problems:
1. Absolute Darkness: There is no natural ambient light.
2. Spatial Constraints: The spaces are narrow, twisting, and often require visualization from extremely close quarters.
A camera alone is useless in pure darkness. Conversely, shining a light into a cavity without a camera to capture the reflected light only illuminates the void without providing any structured information. It is the synergistic combination of both that creates a functional visual system.
The light's function is not merely to illuminate but to do so in a way that is effective and safe for the specific application.
Overcoming Darkness: The core function is to flood the target area with sufficient brightness. Our module, with its four integrated LED beads, is engineered to provide this essential illumination directly at the tip of the probe.
The Importance of Quality and Placement of Light: Simply having a light is not enough. Poor lighting can create more problems than it solves.
Eliminating Shadows: Traditional external lighting casts harsh shadows from obstructions within the cavity, obscuring details. Our module's key advantage is its coaxial illumination design—the LEDs are arranged symmetrically around the lens. This ensures light is projected evenly along the same axis as the camera's view, dramatically reducing shadows and providing uniform coverage across the entire field of view. This is crucial for identifying subtle cracks, textures, or biological features.
Adapting to the Environment: The ultra-slim φ3.5mm diameter of the lens and light assembly is a critical parameter. It allows the integrated light source to reach deep into the narrowest of passages, such as small-diameter pipes or delicate anatomical canals, where external lights cannot effectively reach.
The camera's role is to capture the light reflected from the target and transform it into a usable electronic image. The quality of this image is determined by the sensor and optical components.
Seeing Clearly and Widely: The camera must provide a clear, wide, and accurate image from an extremely short working distance.
The Wide-Angle Advantage: Our module's 102° ultra-wide field of view (FOV) is a pivotal parameter. In a narrow pipe or canal, a standard lens would only show a small, tunnel-vision-like patch of the wall directly in front of it. The 102° FOV allows the operator to see a much broader expanse of the interior surface without moving the probe, as illustrated below. This drastically improves inspection efficiency and reduces the chance of missing critical defects located off-center.
Resolving Detail at Close Range: The 5-15mm ultra-close focus range parameter is specifically engineered for this environment. A conventional camera lens focused to infinity would produce only a blurry image at this distance. This specialized focus range ensures the captured image is sharp and detailed right at the tip of the probe, which is essential for examining surface textures, micro-machining marks, or tissue patterns.
Transmitting the Image: The camera sensor (the OV9734 CMOS) converts light into a digital signal. Parameters like 720p resolution and 30FPS ensure the video output is both detailed enough for diagnosis and smooth enough for real-time navigation. The UVC protocol and Type-C interface then act as the universal language and highway, seamlessly transmitting this high-quality video to any host device for viewing and recording.
The integration of light and camera is what creates a system greater than the sum of its parts.
A Closed-Loop System: The endoscope creates a self-contained visual system. The light emits photons, which travel to the target. The photons reflect off the target, travel back to the camera lens, and are captured by the sensor. This closed loop operates independently of external conditions, making internal inspection possible.
Precision Engineering for Optimal Performance: The SMT and AA (Active Alignment) manufacturing processes ensure the precise mechanical and optical alignment of the lens and sensor. This precision is paramount to the module's performance. Even a slight misalignment would degrade image quality, causing blurriness or distortion, especially at the edges of the wide 102° frame, undermining the entire purpose of the high-resolution sensor and carefully designed optics.
In conclusion, an endoscope requires both a light and a camera because one is functionally incomplete without the other. The light makes the invisible environment visible, while the camera captures, processes, and transmits that visual information. The specific parameters of our module—the coaxial LED lights, 102° field of view, 5-15mm focus range, and 720p resolution—are not arbitrary specifications. They are carefully chosen and engineered responses to the practical challenges of internal inspection. Together, they form a synergistic system that enables professionals to see the unseen, diagnose the hidden, and inspect the inaccessible, proving that in the world of endoscopy, light and camera are two halves of a whole.
