Medical endoscopy has transformed modern healthcare by enabling minimally invasive diagnostics and surgeries. Central to this innovation is the endoscopic camera, a tiny imaging device that captures real-time visuals inside the human body. The size of the endoscopic camera plays a critical role in determining the effectiveness, safety, and comfort of medical procedures.

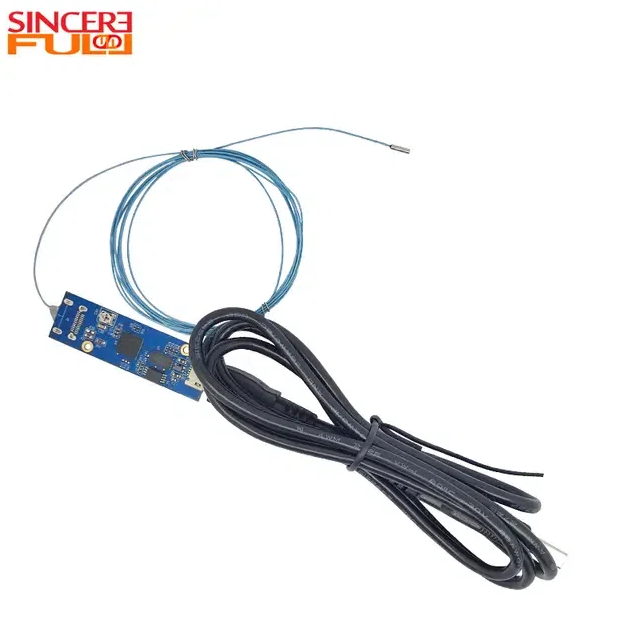

A medical endoscopic camera is a highly miniaturized imaging device that forms the critical visual component of an endoscope. Integrated directly into the tip of the endoscope, this compact camera system combines advanced imaging sensors with precision optics and illumination to capture high-resolution images and videos of the body’s internal organs and tissues. The real-time visuals provided by these cameras enable physicians to perform accurate diagnostics, guide surgical instruments, and monitor procedures with enhanced clarity.
Modern medical endoscopic cameras predominantly utilize CMOS (Complementary Metal-Oxide-Semiconductor) sensors. These sensors are favored for their compact size, low power consumption, and the ability to deliver excellent image quality with minimal noise, making them ideal for the confined spaces encountered during endoscopic examinations. Compared to older CCD (Charge-Coupled Device) technology, CMOS sensors offer greater integration flexibility and faster image processing, which supports real-time video streaming essential for medical use.
To illuminate dark internal cavities where natural light cannot reach, these cameras are paired with integrated fiber optic or LED (Light Emitting Diode) light sources. This illumination system provides bright, focused light without generating heat that could harm delicate tissues. The camera’s miniaturized lens assembly is meticulously designed to offer a wide field of view and high depth-of-field, allowing comprehensive visualization even within the tight confines of the human body.
Together, these technologies ensure that medical endoscopic cameras deliver crisp, detailed images essential for effective minimally invasive procedures.
The size of medical endoscopic cameras typically ranges from approximately 1 millimeter (mm) to 10 mm in diameter, depending on the endoscope’s application and design.
Gastroscopes and Colonoscopes:
Cameras for gastrointestinal endoscopes generally range between 5 mm and 10 mm in diameter, balancing image quality with the need for flexible insertion through the digestive tract.
Bronchoscopes:
Used for lung and airway examination, bronchoscopes typically use cameras sized around 4 to 6 mm, allowing navigation through narrower respiratory passages.
Ureteroscopes and Cystoscopes:
These urological endoscopes feature cameras roughly 3 to 5 mm in diameter to inspect urinary tracts and bladder while minimizing patient discomfort.
ENT (Ear, Nose, Throat) Endoscopes:
For delicate areas like the ear canal and nasal passages, cameras can be as small as 1 to 3 mm, facilitating detailed inspection without trauma.
Capsule Endoscopes:
One of the most advanced miniaturized devices, capsule endoscopes house cameras less than 1 mm wide inside swallowable capsules, enabling non-invasive imaging of the small intestine.
The ongoing trend in medical technology emphasizes miniaturization, with newer cameras becoming smaller yet more powerful to support micro-invasive and pediatric procedures.
The size of the camera used in a medical endoscope is influenced by several critical factors, each balancing the need for detailed imaging with practical considerations of patient safety and procedural effectiveness.
Type of Medical Procedure and Insertion Depth:
Different medical procedures require endoscopes to navigate varying anatomical pathways, some of which are extremely narrow or delicate. For example, procedures involving deep internal organs or sensitive tissues, such as pediatric surgeries or neuro-endoscopy, demand the smallest possible cameras. Smaller cameras minimize tissue trauma and patient discomfort, enabling safer insertion and maneuvering through tight or complex anatomical structures. Conversely, procedures in larger cavities like the stomach or colon may accommodate slightly larger cameras, offering higher image resolution while maintaining patient safety.
Image Resolution Requirements:
The demand for high-quality, detailed images is ever-growing, as surgeons and clinicians rely on clear visuals for accurate diagnoses and precise interventions. Higher image resolution typically necessitates larger image sensors or more sophisticated optical systems, which can increase the physical size of the camera. However, ongoing advances in sensor technology, especially in CMOS sensors, have mitigated this tradeoff, allowing manufacturers to achieve excellent resolution within increasingly compact camera modules.
Sensor Technology:
The choice between sensor types significantly impacts camera size. Traditional CCD (Charge-Coupled Device) sensors, while historically prized for image quality, are bulkier and consume more power. Modern CMOS (Complementary Metal-Oxide-Semiconductor) sensors enable much smaller, energy-efficient cameras without sacrificing image clarity. Their scalability and integration flexibility have become the industry standard, driving the miniaturization of medical endoscopic cameras.
Integrated Lighting:
Illumination is vital for visualizing dark internal body cavities. Endoscopic cameras often incorporate LED (Light Emitting Diode) or fiber optic lighting close to the camera sensor. Integrating effective lighting systems without significantly increasing camera diameter is a challenge that influences the overall size. Innovations in miniaturized, low-heat light sources ensure adequate illumination while maintaining a compact camera form factor.
Technological advancements have enabled significant reductions in the size of endoscopic cameras, improving their utility in modern medical procedures:
Micro-Optical Lens Design:
Highly precise micro-lenses engineered at the microscopic level allow compact cameras to maintain a wide field of view and substantial depth-of-field. These optical designs ensure that even the smallest cameras provide comprehensive and sharp imaging of internal tissues, essential for effective diagnostics.
Chip-Level Integration:
Modern endoscopic cameras benefit from integrating multiple functionalities—such as the image sensor, signal processing circuits, and illumination control—onto a single chip. This system-on-chip (SoC) or system-in-package (SiP) approach drastically reduces the space needed for separate components, minimizing power consumption and enhancing reliability.
High-Density Packaging:
Advanced packaging technologies stack components vertically in a tiny footprint, allowing complex circuitry and optical elements to fit into remarkably small volumes. This approach supports the production of ultra-thin, flexible endoscopes that can navigate narrow anatomical pathways with minimal patient discomfort.
These innovations collectively contribute to the development of ultra-thin endoscopes suitable for highly sensitive applications such as pediatric surgery, neuro-endoscopy, and minimally invasive interventions.
The size of the endoscopic camera has profound implications for patient experience, surgical outcomes, and the evolution of minimally invasive surgery (MIS):
Patient Comfort and Safety:
Smaller cameras enable the design of thinner endoscopes, which significantly reduce pain, discomfort, and the risk of tissue damage during insertion. This is especially important when accessing sensitive or narrow anatomical regions, such as the ear canal, nasal passages, or pediatric patients where even minor trauma can have serious consequences.
Surgical Precision and Flexibility:
Compact cameras enhance surgeons’ ability to maneuver endoscopes through complex and hard-to-reach areas. Improved flexibility allows better visualization of lesions, tumors, or obstructions, facilitating precise interventions with reduced collateral damage to surrounding tissues.
Advancement of Minimally Invasive Surgery (MIS):
As endoscopic cameras continue to shrink, they drive the progress of MIS by enabling procedures through smaller incisions or natural body openings. This results in less surgical trauma, reduced blood loss, shorter hospital stays, faster recovery times, and fewer complications. The miniaturization of cameras is thus a key enabler of next-generation surgical techniques, improving both clinical outcomes and patient quality of life.
The size of the camera in a medical endoscope is a crucial factor influencing the effectiveness, safety, and patient experience of endoscopic procedures. Advances in CMOS technology, micro-optics, and packaging continue to push the boundaries of miniaturization, enabling smaller, more powerful cameras that support a wide range of diagnostic and surgical applications.
As technology evolves, ultra-small, high-resolution endoscopic cameras will continue to enhance minimally invasive medicine, helping healthcare providers deliver better care with greater precision and less patient discomfort.
