In the evolving world of modern diagnostics and industrial inspection, endoscopic cameras play a vital role in enhancing visibility in areas that are otherwise inaccessible. Whether it is a physician navigating the gastrointestinal tract or an engineer examining turbine interiors, the ability to capture clear and detailed visuals through compact and minimally invasive devices is transformative.

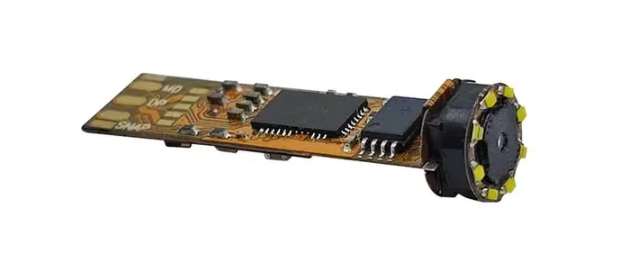

An endoscopic camera is a miniature imaging module designed to be inserted into tight or internal spaces to capture real-time images and videos. It is most commonly used in medical procedures and industrial inspections. The device is typically integrated into a longer instrument called an endoscope and connected to a monitor or digital recorder to provide high-resolution visual feedback.
Unlike traditional cameras, endoscopic cameras are specially designed for environments with limited space, poor lighting, and a need for precision. They are built to be compact, lightweight, and highly adaptable.
The sensor is the heart of any camera. For endoscopic cameras, CMOS (Complementary Metal-Oxide-Semiconductor) sensors have become the dominant choice due to their low power consumption, compact size, and integration flexibility. These sensors capture light and convert it into electrical signals that can be processed into high-resolution images and videos. CMOS sensors also offer faster readout speeds and better noise reduction compared to traditional CCD (Charge-Coupled Device) sensors, making them ideal for real-time medical or industrial inspections.
Given the small size of endoscopes, the camera lenses need to be miniaturized without compromising image quality. The lens system is optimized to provide a wide field-of-view (FOV) and a high depth-of-field, allowing clear focus on tiny, intricate structures even in tight or curved spaces. This optical precision is crucial for medical diagnostics, where detecting subtle tissue changes can mean the difference between early detection and missed diagnosis.
Most internal inspection areas are poorly lit or completely dark. To address this, endoscopic cameras incorporate powerful, miniature LED light sources or fiber optic lighting systems that illuminate the inspection area uniformly. Medical-grade endoscopes often use fiber optics to deliver adjustable, cool light that reduces heat damage to tissues, while industrial borescopes typically employ robust LED arrays designed to withstand harsh conditions.
The camera’s housing must be durable and reliable. Medical endoscopic cameras are enclosed in materials that are waterproof, dustproof, and can withstand repeated sterilization cycles such as autoclaving. Industrial cameras, on the other hand, often require rugged housings resistant to oil, dust, high temperatures, and mechanical shocks. This protective casing ensures the longevity of the camera module and consistent performance, regardless of the operating environment.
To transmit captured images and video to external displays or recording devices, endoscopic cameras use various signal interfaces. The most common interfaces are USB, MIPI (Mobile Industry Processor Interface), and HDMI. USB interfaces are popular for plug-and-play applications, allowing easy connection to computers and portable devices. MIPI interfaces are favored in embedded systems for their high speed and low power consumption. HDMI is commonly used when direct output to high-definition monitors is required.
Endoscopic cameras come in a variety of types, designed specifically to meet the diverse requirements of medical and industrial applications. Understanding the distinctions between these types helps in selecting the right camera for the task.
Medical-grade endoscopic cameras are critical tools in diagnostic and surgical procedures. They are used in minimally invasive techniques, which reduce patient trauma, shorten recovery times, and enhance surgical precision. Common medical procedures using endoscopic cameras include:
Gastroscopy: This procedure involves inspecting the esophagus, stomach, and the first part of the small intestine. A flexible endoscope with a high-resolution camera allows gastroenterologists to identify ulcers, inflammation, tumors, or bleeding.
Colonoscopy: Used to view the colon and rectum, colonoscopies are vital for detecting colorectal cancer and other intestinal diseases. The camera must provide clear, detailed images to identify polyps or other abnormalities.
Bronchoscopy: This procedure examines the airways and lungs. A highly flexible endoscope with excellent low-light sensitivity is essential for visualizing lung tissues and guiding biopsies.
Laparoscopy: In minimally invasive abdominal surgeries, laparoscopes with miniature cameras offer surgeons a real-time view of internal organs, helping perform complex procedures through small incisions.
Medical endoscopic cameras are engineered to meet strict regulatory and sterilization standards. They must provide exceptional resolution, accurate color reproduction, and compatibility with surgical instruments. Miniaturization is especially important in specialized fields like pediatric or neurological endoscopy, where access is even more limited.
In industrial environments, endoscopic cameras are often referred to as borescopes and are used for internal inspections where disassembly is impractical or impossible. Typical applications include:
Automotive Inspection: Mechanics use borescopes to inspect engine cylinders, fuel injectors, and exhaust systems for wear, blockages, or damage without dismantling the entire engine.
Aerospace Maintenance: Inspecting turbine blades and jet engines requires cameras that can withstand high temperatures and deliver clear images of minute cracks or erosion that could lead to mechanical failure.
Pipe and Tube Inspection: HVAC systems, plumbing, and industrial pipelines often require visual inspection for corrosion, leaks, or blockages. Borescopes with flexible or semi-rigid shafts navigate through these confined spaces efficiently.
Manufacturing Quality Control: Industrial cameras assist in quality checks for welds, castings, and assemblies, ensuring product integrity before shipment.
Unlike medical cameras, industrial endoscopic cameras prioritize durability, shock resistance, and environmental sealing. The image quality is optimized for functionality rather than ultra-high definition, and cameras often include rugged features to withstand dust, oil, and moisture.
Medical Applications:
Diagnostics: Detect abnormalities like ulcers, tumors, or bleeding
Surgical guidance: Real-time imaging to navigate minimally invasive tools
Biopsies and sample collection
In all these uses, the endoscopic camera is essential for ensuring visual clarity, which directly affects patient outcomes.
Industrial Applications:
Preventive maintenance: Early detection of wear, cracks, or leaks
Non-destructive testing: Internal inspection without equipment disassembly
Remote visual inspection in inaccessible areas like aircraft turbines or reactors
Both environments demand reliability, but their technical priorities differ. Medical requires absolute precision; industrial values ruggedness and functionality.
Choosing a high-performance camera module can dramatically improve diagnostic accuracy and efficiency. Some notable advantages include:
Superior image resolution (720p to 4K)
Miniaturized size for insertion into tiny spaces
Optimized lighting even in dark or reflective environments
Real-time video streaming with minimal latency
Interface compatibility with USB 2.0/3.0, MIPI, HDMI
Low power consumption, especially important in wireless applications
A top-tier endoscopic camera also ensures long-term reliability and consistent output, making it a valuable investment for OEMs and device manufacturers.
When selecting an endoscopic camera module, consider the following factors:
Application domain: Medical or industrial? This affects sterilization, image quality, and safety certifications.
Sensor size and resolution: Choose based on detail requirements and viewing distance.
Interface type: USB for plug-and-play, MIPI for embedded integration, HDMI for displays.
Lens and FOV: Wide-angle lenses are better for broader views; narrow lenses offer zoomed-in details.
Lighting method: Built-in LEDs for basic use or fiber optic systems for high-end medical devices.
Form factor and size: Ensure it fits your endoscope or borescope design.
Environmental resistance: Waterproofing, dustproofing, or chemical resistance as needed.
Custom modules may be necessary for niche applications like robotic surgery, smart capsule endoscopy, or harsh chemical pipelines.
Guangzhou Sincere Information Technology Co., Ltd. offers a comprehensive line of endoscopic camera modules tailored for both medical and industrial markets. Our products are designed with:
Advanced CMOS sensors for vivid image capture
Miniature sizes down to 1.5mm for compact integration
USB, MIPI, and HDMI outputs
OEM/ODM customization services to meet specific device or project requirements
Strict quality control and compliance with international standards
With years of expertise in camera module development, we support customers across healthcare, robotics, inspection equipment, and education industries. Whether you're designing a next-gen laparoscope or an industrial inspection robot, our team delivers imaging solutions that empower your technology.
An endoscopic camera is far more than a small lens on a wire—it is a precision imaging solution that powers everything from life-saving surgeries to aerospace engine inspections. By combining miniaturization, high-resolution imaging, and smart integration, these cameras have revolutionized visibility across disciplines.
As technology continues to evolve, so will the capabilities of endoscopic camera systems. Whether you're in the medical field, industrial maintenance, or OEM device development, investing in the right camera module is crucial for long-term success.
