0.08MP Led Wide Angle Borescope USB Inspection Camera Module for Android

The 0.08MP LED detachable TYPE C USB endoscope camera module is a low resolution, compact endoscope camera module with a wide angle of 105 °, 2.8mm diameter, typically used in applications that do not require high image resolution but require compact and flexible design.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C0115USB-D2.8-PRO-TypeC V1.2

  • SINCEREFIRST

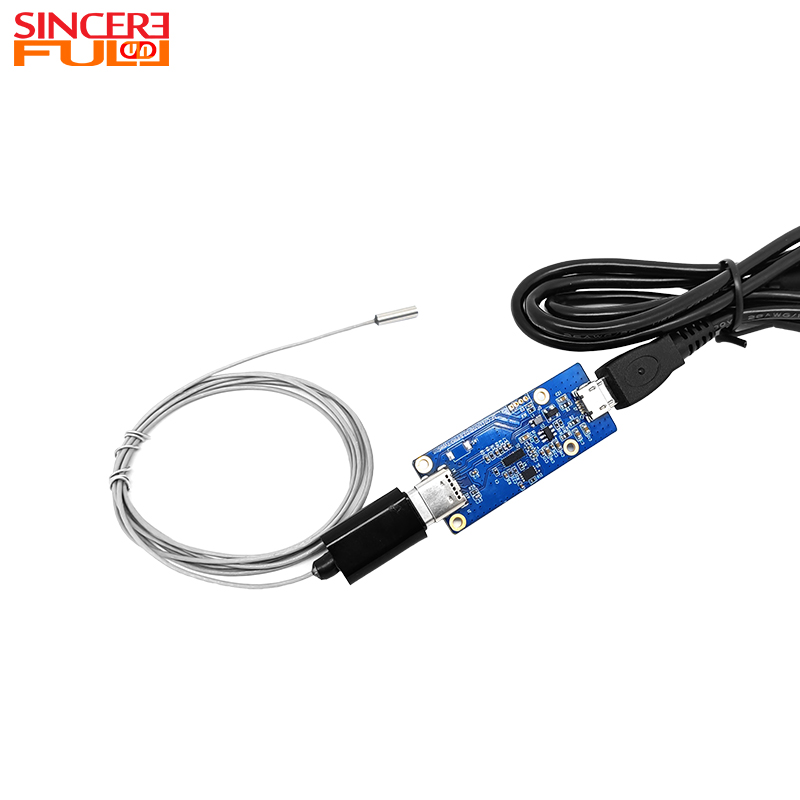

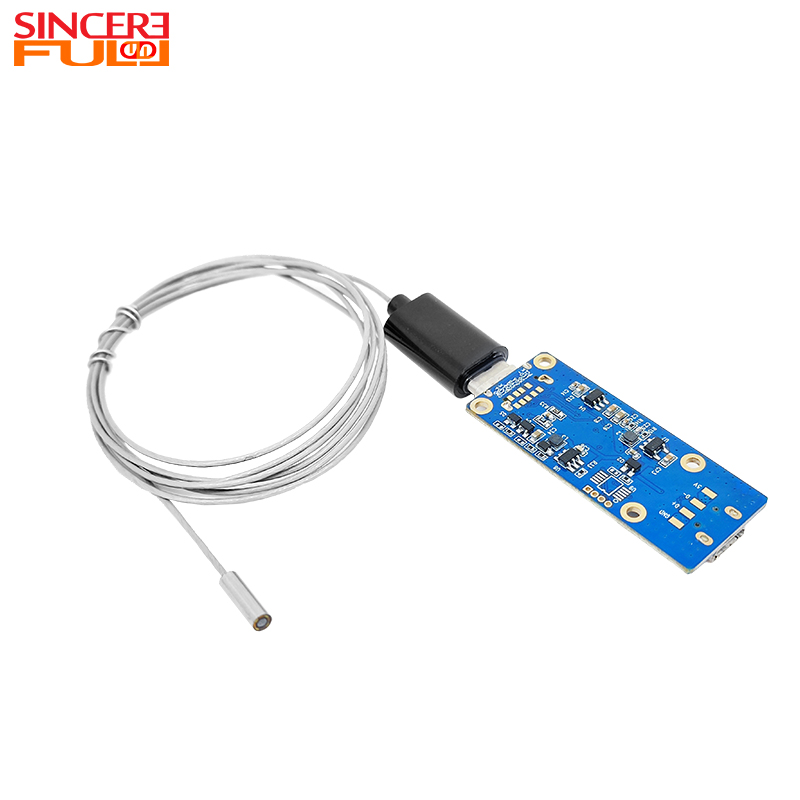

The 0.08MP LED detachable TYPE C USB endoscope camera module is a low resolution, compact endoscope camera module with a wide angle of 105 °, 2.8mm diameter, typically used in applications that do not require high image resolution but require compact and flexible design. This endoscope camera module adopts a separate design, with the camera part separated from the processing unit, making it easy to integrate into various devices.


规格图


Product Advantage ◢

  • 0.08MP resolution, suitable for scenes with low image quality requirements.

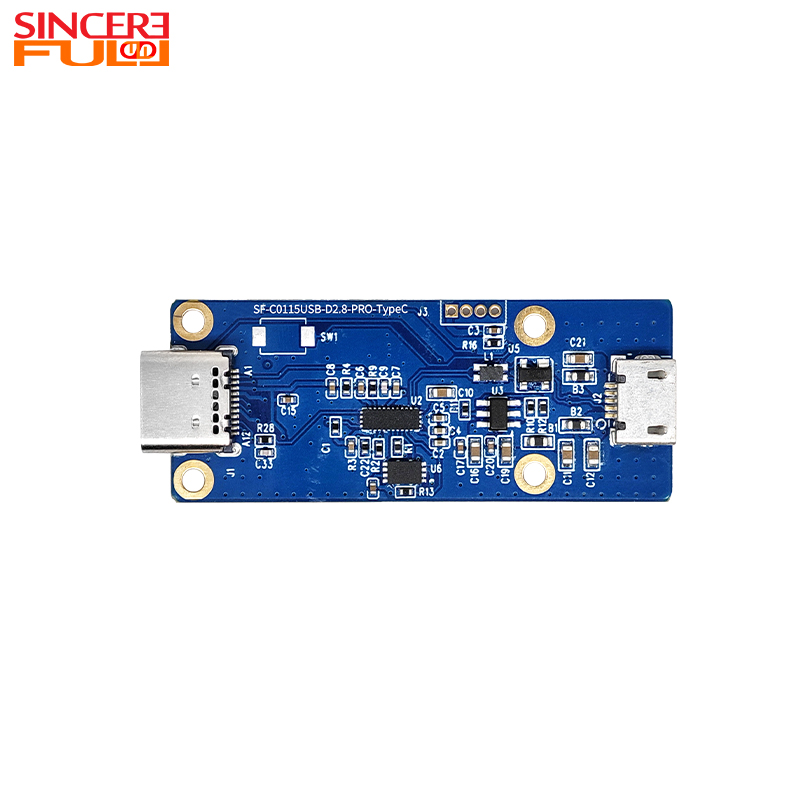

  • The camera part is separated from the processing unit for easy integration.

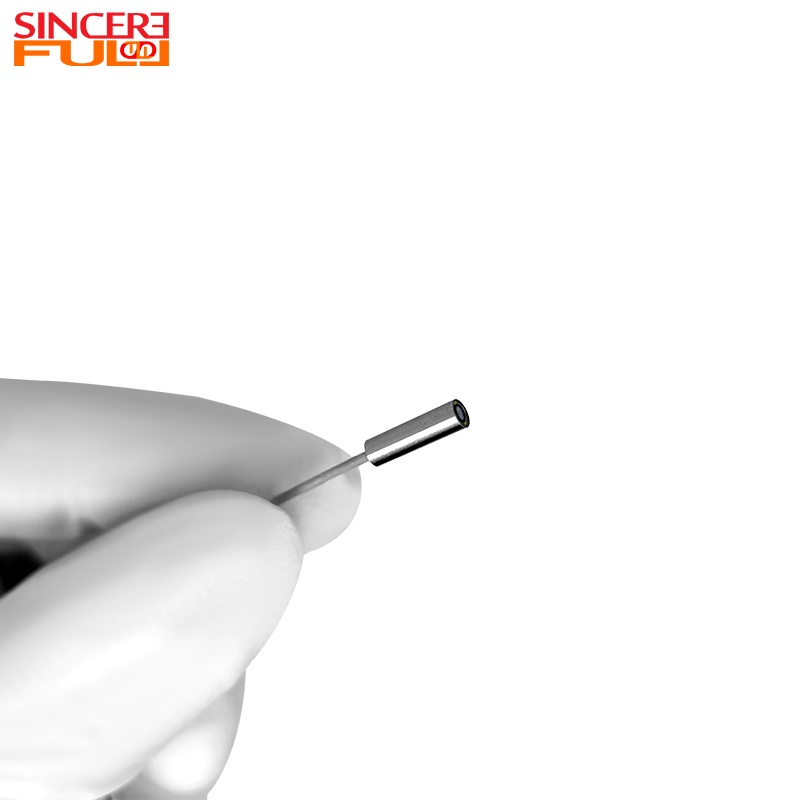

  • 2.8mm diameter ultra small design, suitable for narrow spaces of endoscopes.


Application of Endoscope Camera Module

1. Industrial testing: in-depth inspection of gear wear and pipeline corrosion inside the machinery to help non-destructive testing of automotive engines and aviation equipment.


2. Medical field: Adapt to minimally invasive surgery scenarios, assist doctors to observe lesion details and improve surgical accuracy.


3. Security maintenance: detect the anchor point of the building curtain wall, the hidden structure of the bridge, or troubleshoot the problem of water pipe blockage and circuit aging.





Technical Parameters ◢

Product Name

Separated Endoscope Camera Module

Features

Micro Endoscope Camera Module

Pixel

0.08MP

Sensor

CMOS Sensor

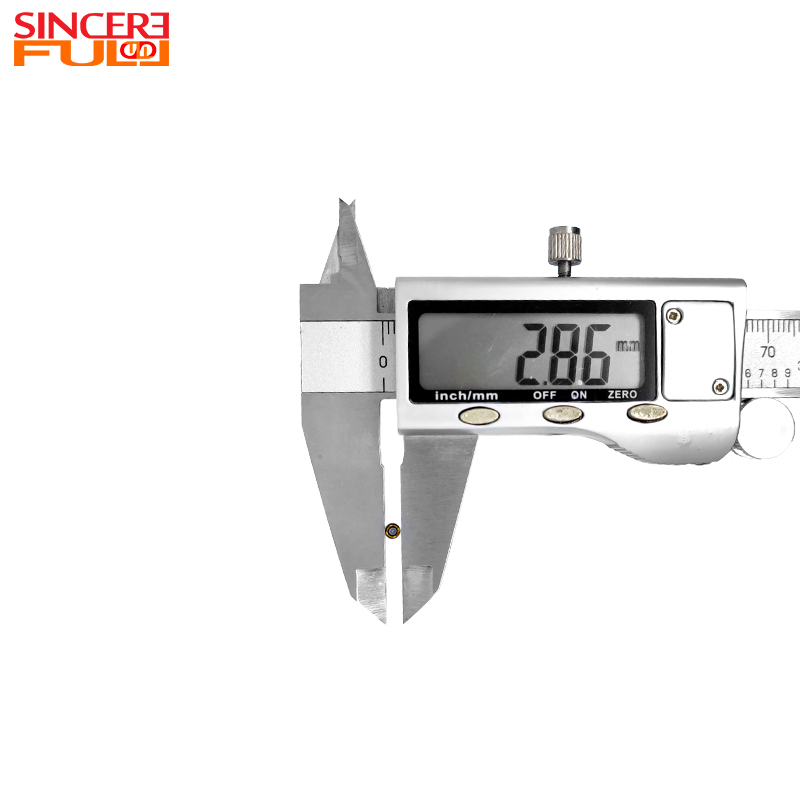

Diameter

2.8mm

Interface

USB2.0 UVC

FOV(D)

105°

TV Distortion

<-10%

Formats

YUV&MJPEG

Resolution

240*320, 30fps



FAQ ◢

1. How does the endoscope camera module work?

The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.


2. How to control the transmission delay of wireless endoscope module?

By optimizing the coding algorithm and transmission in the 5GHz band, the delay can be controlled within 50ms, ensuring real-time operation. Some products use dedicated RF protocols to reduce interference.


3. What are the interface types of the module?

Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.
