SF-C1019USB-D3.9-PRO OV9734 V1.2
SINCEREFIRST
| This 3.9mm Diameter 720P OV9734 USB2.0 UVC IP67 Waterproof Endoscope Camera Module is a highly practical miniature imaging component optimized for medium and short-range observation in confined and enclosed environments. Equipped with the OV9734 sensor, it outputs stable 1280×720 resolution footage at 30fps via YUV and MJPEG formats to deliver consistent and clear visuals. With a 1.08mm focal length and F4.0 aperture optical system, it forms a multi-dimensional viewing angle covering 95° diagonal, 85° horizontal and 43.5° vertical ranges, with optical distortion controlled below -10% to balance wide coverage and accurate scene restoration. Factory pre-calibrated with a fixed 10–100mm effective focusing range, it maintains steady definition across conventional endoscopic working distances without secondary on-site adjustment. The ultra-slim 3.9mm probe adopts steel sleeve packaging and supports IP67 waterproof performance, enabling access to ultra-fine pipelines and closed cavities that ordinary modules cannot reach. Optional 0402 LED fill lights provide auxiliary lighting for completely dark internal environments. Adopting standard USB2.0 UVC protocol and diversified terminal ports including JST, 5PIN USB and 10PIN sensor interfaces, it achieves direct recognition by mainstream devices and greatly reduces hardware adaptation and software development workload. Fully compliant with RoHS standards, this integrated module balances waterproof durability, wide-range imaging and easy integration for diverse narrow-space visual tasks. |  |
Product Advantage ◢
IP67 Waterproof Ultra-Slim Probe: 3.9mm steel sheel structure penetrates ultra-fine pipelines and sealed cavities for expanded detection coverage.
Balanced 95° Multi-Angle View: Matched horizontal, vertical and diagonal viewing angles deliver broad coverage while ensuring in-depth cavity observation.
UVC Driver-Free Transmission: Standard USB2.0 protocol enables plug-and-play use with mainstream devices to lower adaptation and development costs.
Calibrated Wide Fixed Focus: 10–100mm universal focusing range fits routine endoscopic work and requires no on-site debugging.

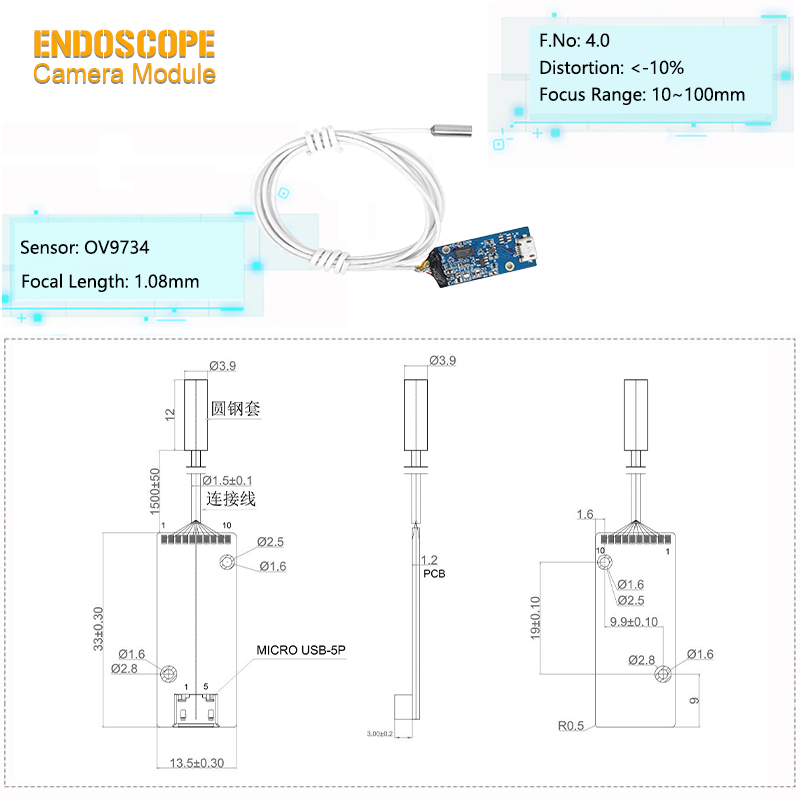

Technical Parameters ◢
Product Name | 3.9mm Endoscope Camera Module |
Image Sensor | OV9734 |
Pixel | 1MP |
Led | 0402 Led |
DSP | USB2.0 UVC |
F No. | F4.0 |
Focal Length | 1.08mm |
Diameter | 3.9mm |
FOV(D*H*V) | 95°*85°*43.5° |
TV Distortion | ＜-10% |
Medical Endoscopic Inspection: Can be embedded into oral mirrors, otolaryngological devices and minimally invasive instruments to realize visual observation of human superficial cavities.
Pipeline Visual Inspection: Can detect cracks, corrosion and blockages inside pipelines above 3.9mm diameter with its slim waterproof penetrating probe.
Mechanical Cavity Checking: Can access the interior of valves and precision instruments to complete fault inspection without equipment disassembly.
Portable Detection Equipment: Can serve as the core imaging component for handheld endoscopes to support on-site visual inspection and fault judgment.
FAQ ◢
1. What does an endoscope camera module see?
A4: An endoscopic camera module exam involves inserting an endoscope into the body to capture images or videos of organs and structures. Healthcare providers utilize this method for screening, diagnosing, and treating diseases. Various types of endoscopic exams are available to visualize different organs.
2. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
3. What are the possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
4. What can I do if the module fails to start?
Check that the power adapter, interface, and fuse are loose. For wireless modules, check the battery level and pairing status.
